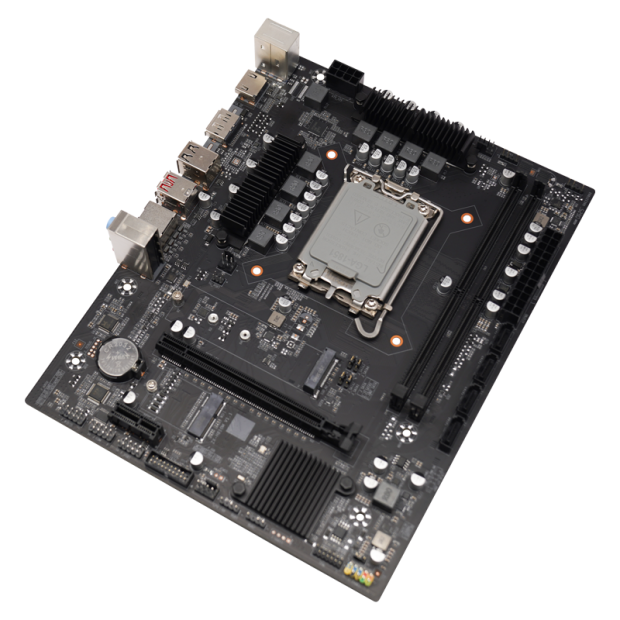

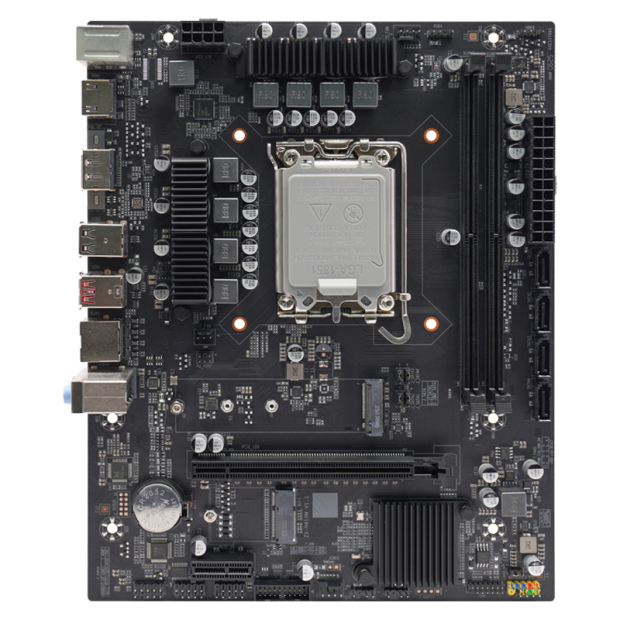

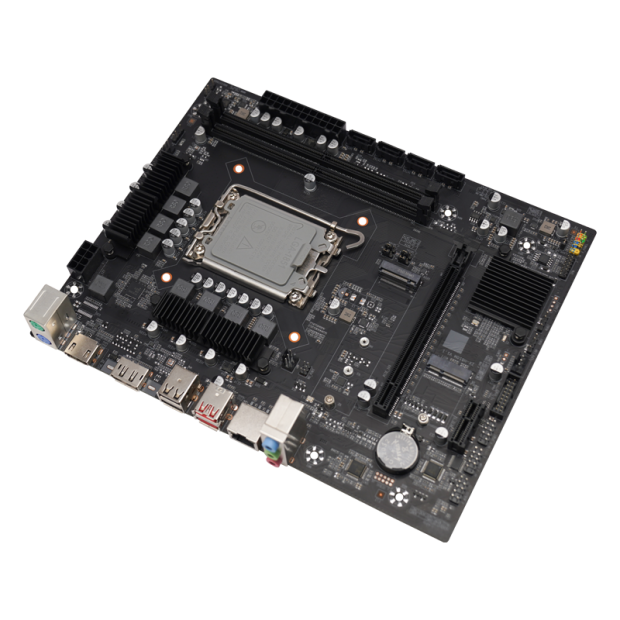

AFOX IH810D5-MA-V2

Model Name: IH810D5-MA-V2
Chipset: Intel® H810
Socket: INTEL Socket 1851
Support Intel^® Core™ Ultra Processors (Series 2) , LGA1851
Dual channel DDR5 memory
4800 / 5200 / 5600 / 6000(O.C) / 6400(O.C) MHz Memory up to 128GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Design of Gigabit high-speed network card
Rapid transmission is always ready
Rambling mainstream game world
Wonderful design rendering effect
Satisfy all your computing demands

HD Gallery

DESCRIPTION
SPECIFICATION
BIOS / DRIVERS UPDATE
REQUIREMENT

►Intel® H810 Express Chipset

►Support Intel^® Core™ Ultra Processors (Series 2)

►Dual-Channel DDR5 4800 / 5200 / 5600 / 6000(O.C) / 6400(O.C) MHz support

►Gigabit LAN

►PCI Express 4.0 Architecture

►USB 3.0

Platform	INTEL Socket 1851
Model Name	IH810D5-MA-V2
Chipset	Intel® H810
CPU Supports	INTEL Socket 1851 Support Intel^® Core™ Ultra Processors (Series 2)
FSB	4800 / 5200 / 5600 / 6000(O.C) / 6400(O.C)
Memory	Dual Channel DDR5 4800 / 5200 / 5600 / 6000(O.C) / 6400(O.C) MHz 1.1V
Dimm	2 x Memory Slots (Max. capacity of system memory 128GB)
Onboard Graphics	Intel® HD Graphics
PCI/PCI-E Slots	1 x PCI Express x16 4.0 slot 1 x PCI Express x1 slot 1 x Mini PCI-E Slot (Supports 4G/WIFI Module)
SATA	4 x SATA III 1 x M.2 ( 1 x PCIe NVMe Gen4 x4 & SATA3 )
IDE	N/A
Audio	Realtek 897 on board, Supports 6-channel audio-out
LAN	Realtek RTL8111 Gigabit Ethernet on board Wake-On-LAN
Back Panel I/Os	1 x HDMI Port 1 x DP Port 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 2 x USB 3.0 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jack (Line in / Front Speaker / Microphone)
ON-Board Pinheaders/Connectors	1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader 1 x Com 1 x TPM
BIOS	UEFI BIOS
Form Factor	Micro-ATX (19*24cm)
Mounting	6 mounting holes
Accessories	1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD
