AFM01-1165G7B
AFOX MINI-PC(AFM02-1165G7B) features the 11th Intel® Core™ processor for more powerful and energy-efficient performance.
Low power consumption, energy and electricity saving
AFOX MINI-PC adopts low power processor with around 12W-19W thermal designed power generally. Compared with traditional desktop PC, it saves ten times of power consumption.
Extremely simple design, tiny and convenient
AFOX MINI-PC can be used with monitors, televisions, projectors, printers and many other family entertainment or light office equipment, saving space resources and keeping a low profile without losing performance.
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►Intel® Core™ i7-1165G7 Processor
►Maximum to 1×M.2 SSD and 1×MSATA SSD
►Equipped with USB 3.0
►Supports Dual monitors
►Supports standard VESA-mount
|
Platform |
i7-1165G7 |
|
Model Name |
AFM01-1165G7B |
|
Chipset |
Intel® Core™ i7-1165G7 Processor 12M Cache, up to 4.70 GHz(TDP 28W) |
|
Storage |
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s |
| 1 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(NVME/SATA) Standard PCIE 3.0 hard disk interface, maximum transfer speed 32.0Gbps |
|
|
LAN |
2 x RJ45 Giga LAN RTL8168/8111/8112 Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN |
|
Audio |
Integrated RealtekALC662HD digital audio decoder, 6-channel high-fidelity audio controller(out） |
|
OS |
Windows 10/11,Linux |
|
Onboard Graphics |
intel® ® uhd graphics for 11th gen intel® ® core ™ processors |

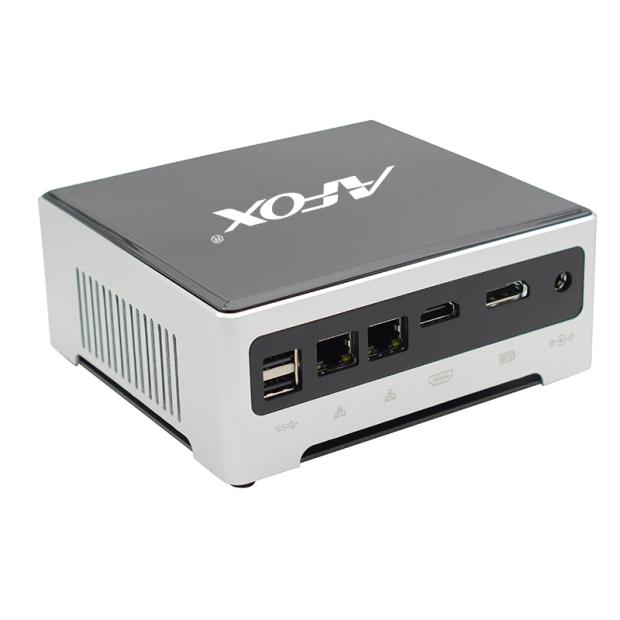

| I/O (REAR) | 1 x HDMI 4096 x 2304@24Hz |
| 1 x DP 4096 x 2304@60Hz | |
| 2 x LAN Port with LED | |
| 1 x Audio(1 x MIC, 1 x SPK) | |
| 1x WIFI Port | |
| 4 x USB 3.0 2 x USB 2.0 | |
| 1 x DC Port | |
|
Structure |
Dissipation Fan |
| Housing aluminum alloy |
|
| Bracket VESA bracket (Optional) |
|
| Dimensions 205 x 190 x 45mm / (WxDxH) |
|
| Weight Net 0.65kg Gross 1.15kg |
|
|
Power Supply |
AC In 100-240V AC/50-60Hz |
| DC In 12V~+19V, recommend 12V/5A |
|
|
Temperature & Humidity |
Working Temp. |
|
Storage Temp. |
|
|
Working Humidity |
|
|
BIOS |
UEFI BIOS |
|
Accessories |
1 x Power adapter 12V/5A(5.5*2.5mm) |
|
1 x Power cable 1.2M |
|
|
1 x User Manual |
|
|
1 x HDMI cable (Optional) |
|
|
1 x Stand holder (Optional) |
|
|
1 x VESA mount (Optional) |
|
|
1 x WIFI (Optional) |
