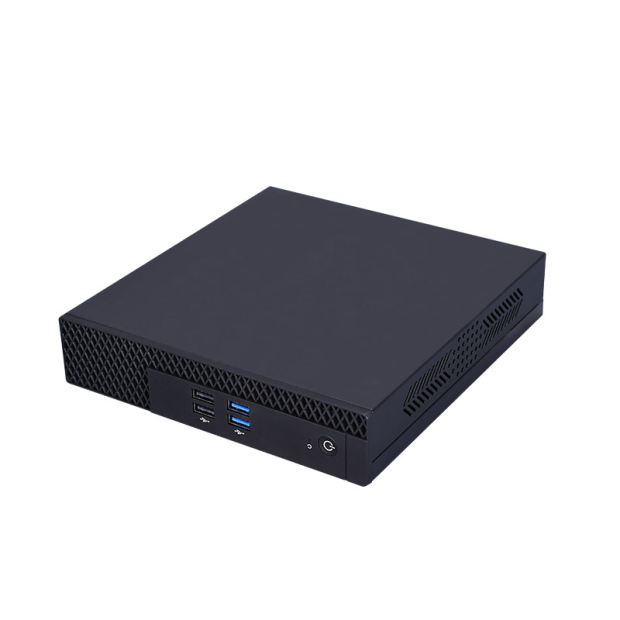

AFM02-10400F
Small size, high performance. Built-in Intel 10thcore processor
High performance core display refreshing game full of combat power
All-copper thermal module Efficient heat dissipation
High speed silent fan+All copper heat sink. Mini PC keep cool even play game for long time.
Creative design Release inspiration
Easy to deal with on Graphic design, industrial design, machine design etc.
Rich interfaces meet the requirements of different scenarios.
Come with WIFI 5, Data transmission is more stable and efficient.
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►Built-in Intel 10th core processor
►All-copper thermal module Efficient heat dissipation
►Creative design release inspiration
►Come with WIFI 5, data transmission is more stable and efficient
►Rich interfaces meet the requirements of different scenarios
|
Platform |
i5-10400 |
|
Model Name |
AFM02-10400F |
|
Chipset |
Intel® Core™ i5-10400 Processor 12M Cache, up to 4.30 GHz(TDP 65W) |
|
Storage |
1 x SATA 3.0 Supports 2.5" HDD/SSD (1 x 3 Gbps ) 5V/12V（4Pin，1*4Pin，2.54mm) |
| 1 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(NVME) Standard PCIE 3.0 hard disk interface, maximum transfer speed 32.0Gbps |
|
|
LAN |
1 x RJ45 Giga LAN RTL8111/8112 Gigabit Ethernet Controller 1000Mbps BaseT LAN |
|
Audio |
Integrated RealtekALC269HD digital audio decoder, 6-channel high-fidelity audio controller(out） |
|
OS |
Windows 10/11,Linux |
|
Onboard Graphics |
Intel® UHD Graphics 730 |
| I/O (REAR) | 4 x HDMI 2.0 4096 x 2160 @ 60Hz |
| 1 x VGA 1920*1200@60HZ | |
| 1 x LAN Port with LED | |
| 1 x Audio(1 x MIC, 1 x SPK) | |
| 1x WIFI Port | |
| 6 x USB 3.0 2 x USB 2.0 | |
| 1 x DC Port | |
|
Structure |
Dissipation Fan |
| Housing aluminum alloy |
|
| Bracket VESA bracket (Optional) |
|
| Dimensions 195 x 185 x 40mm / (WxDxH) |
|
| Weight Net 1.42kg Gross 2.0kg |
|
|
Power Supply |
AC In 100-240V AC/50-60Hz(5.5*2.5mm) |
| DC In 19V, recommend 12V/6.32A 90W |
|
|
Temperature & Humidity |
Working Temp. |
|
Storage Temp. |
|
|
Working Humidity |
|
|
BIOS |
UEFI BIOS |
|
Accessories |
1 x Power adapter 12V/6.32A(5.5*2.5mm) |
| 1 x Power cable 1.2M | |
| 1 x User Manual | |
| 1 x HDMI cable (Optional) | |
| 1 x Stand holder (Optional) | |
| 1 x VESA mount (Optional) | |
| 1 x WIFI (Optional) |
