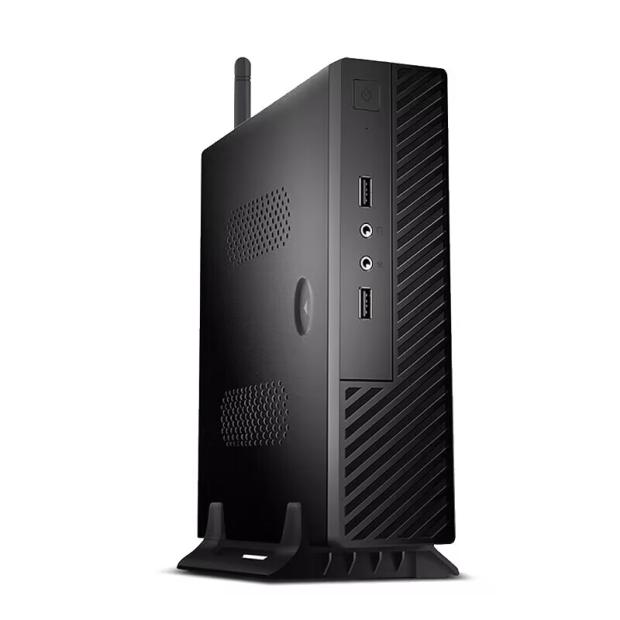

AFM02-12100Z

Small size, high performance. Built-in Intel 12th  latest core processor
High performance core display refreshing game full of combat power

All-copper thermal module Efficient heat dissipation
High speed silent fan+All copper heat sink. Mini PC keep cool even play game for long time.

Creative design Release inspiration
Easy to deal with on Graphic design, industrial design, machine design etc.

Rich interfaces meet the requirements of different scenarios.
Come with WIFI 5, Data transmission is more stable and efficient.

  • DESCRIPTION
  • SPECIFICATION
  • BIOS / DRIVERS UPDATE
  • REQUIREMENT

►Built-in Intel  12th  latest core processor

►All-copper thermal module Efficient heat dissipation

►Creative design release inspiration

►Come with WIFI 5, data transmission is more stable and efficient

►Rich interfaces meet the requirements of different scenarios

Platform

i5-12100

Model Name

AFM02-12100Z

Chipset

Intel® Core™ i3-12100 Processor 12M Cache, up to 4.30 GHz(TDP 60W)

Storage

1 x SATA 3.0
Supports 2.5" HDD/SSD  (1 x 3 Gbps ) 5V/12V(4Pin,1*4Pin,2.54mm)
1 x M.2 slot for M.2 NGFF 22*80(Key M), up to 2TB(NVME)
Standard PCIE 3.0 hard disk interface, maximum transfer speed 32.0Gbps

LAN

1 x RJ45 Giga LAN RTL8111/8112 Gigabit Ethernet Controller 1000Mbps BaseT LAN

Audio

Integrated RealtekALC269HD digital audio decoder, 6-channel high-fidelity audio controller(out)

OS

Windows 10/11,Linux

Onboard Graphics

Intel® UHD Graphics 730
I/O (REAR) 4 x HDMI 2.0 4096 x 2160 @ 60Hz
1 x COM 1920*1200@60HZ
1 x LAN Port with LED
1 x Audio(1 x MIC, 1 x SPK)
1x WIFI Port
4 x USB 3.0   2 x USB 2.0
1 x DC Port (19VDC~7A)

Structure

Dissipation
Fan
Housing
aluminum alloy
Bracket
VESA bracket (Optional)
Dimensions
210x 200.4 x 55mm / (WxDxH)
Weight
Net 1.42kg Gross 2.0kg

Power Supply

AC In
100-240V AC/50-60Hz(5.5*2.5mm)
DC In
19V, recommend 12V/6.32A  90W

Temperature & Humidity

Working Temp.
-0°C ~ 70°C

Storage Temp.
-20°C ~ 80°C (-20°F ~ 176°F)

Working Humidity
10% - 85% @40°C non-condensing

BIOS

UEFI BIOS

Accessories

1 x Power adapter 12V/6.32A(5.5*2.5mm)

1 x Power cable   1.2M

1 x User Manual

1 x HDMI cable (Optional)

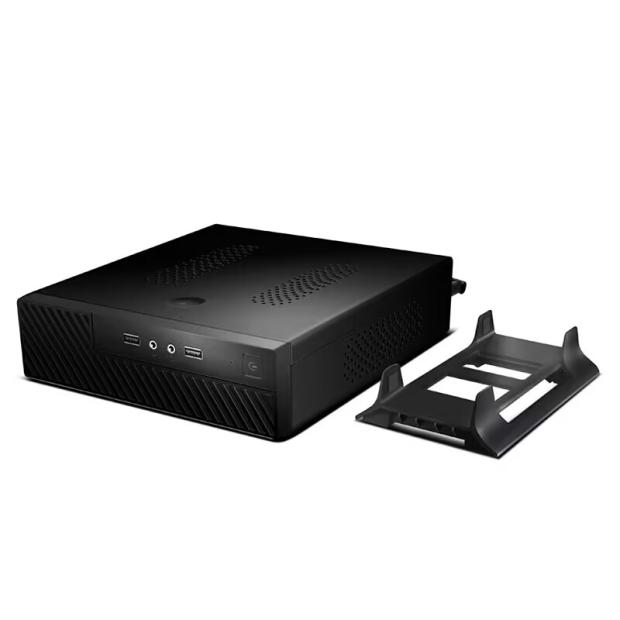

1 x Stand holder (Optional)

1 x VESA mount (Optional)

1 x WIFI (Optional)
