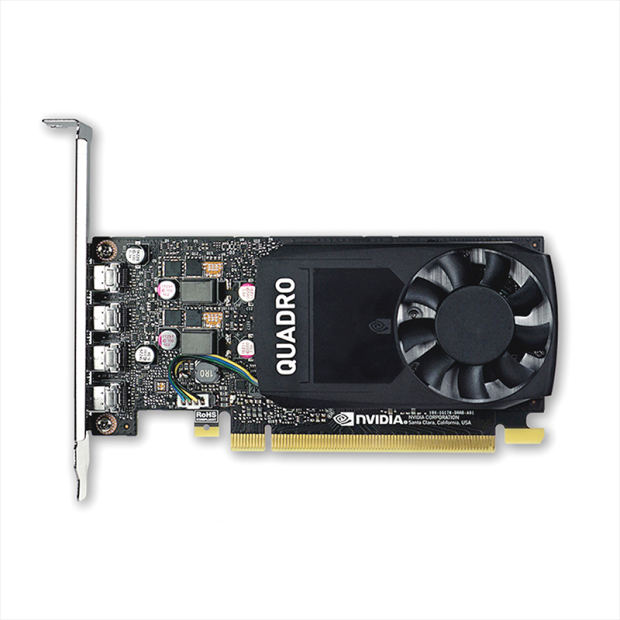

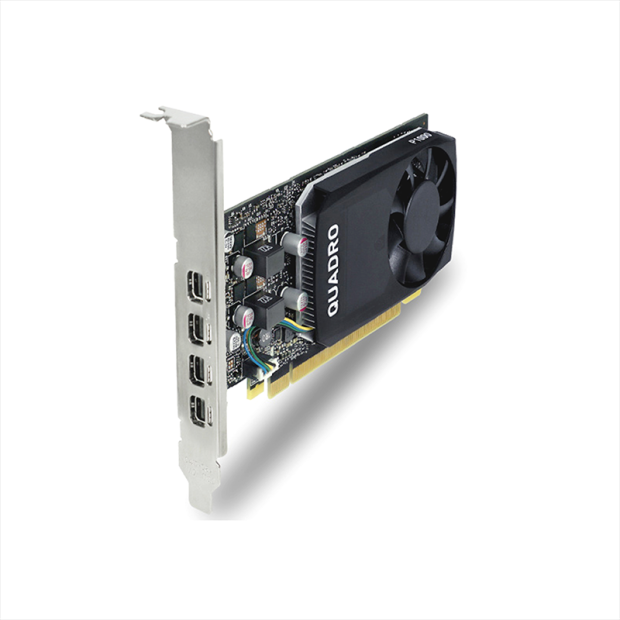

Quadro P1000
Full Professional Performance and
Features in a Small Form Factor
►Pascal GPU
►640 NVIDIA® CUDA® Cores
►4 GB GDDR5 CPU Memory
►Up to 80GB/s Memory Bandwidth
►PCI Express 3.0 System Interface
►1.894 TELOPS FP32 Peak single-precision floating point performance(board)
►47W Max Power Consumption
►4x mDP 1.4 Display Connectors
►4x 4096x2160 @ 60Hz Display Resolution
►4x 5120x2880 @ 60Hz Display Resolution
HD Gallery
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►4GB GDDR5 Memory Capacity
►Pascal Dynamic Load Balancing
►Mini-DisplayPort 1.4
►Multiple GPU Technology
|
GPU Memory |
4 GB GDDR5 |
|
Memory Interface |
128-bit |
|
Memory Bandwidth |
Up to 82 GB/s |
|
NVIDIA CUDA® Cores |
640 |
|
System Interface |
PCI Express 3.0 x16 |
|
Max Power Consumption |
47W |
|
Thermal Solution |
Active |
|
Form Factor |
2.713”H x 5.7” L, Single Slot, Low Profile |
|
Product Weight |
129 grams |
|
Display Connectors |
4x mDP 1.4 |
|
Max Simultaneous Displays |
4 direct, 4 DP1.4, Multi- Stream |
|
Display Resolution |
4x 4096x2160 @ 60Hz / 4x 5120x2880 @ 60Hz |
|
Graphics APIs |
Shader Model 5.1, OpenGL 4.51, DirectX 12.02, Vulkan 1.01 |
|
Compute APIs |
CUDA, DirectCompute, OpenCL™ |
