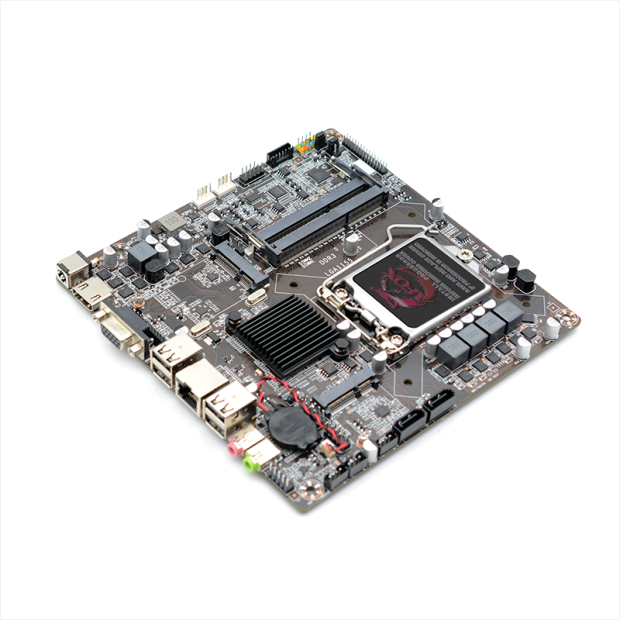

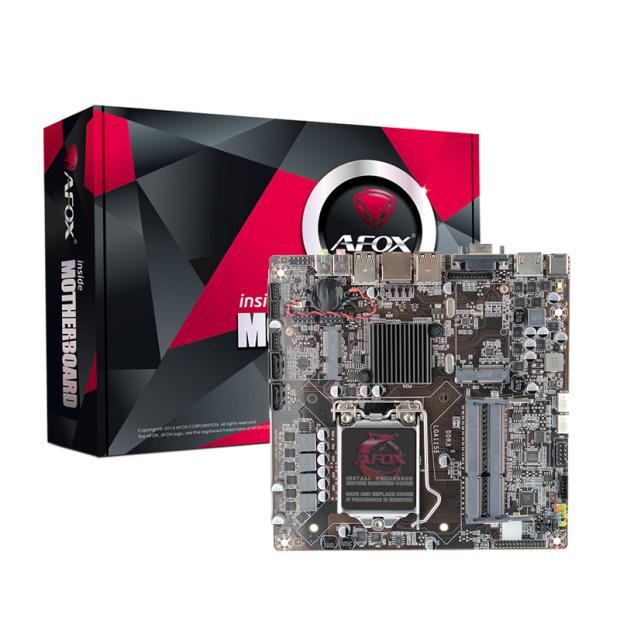

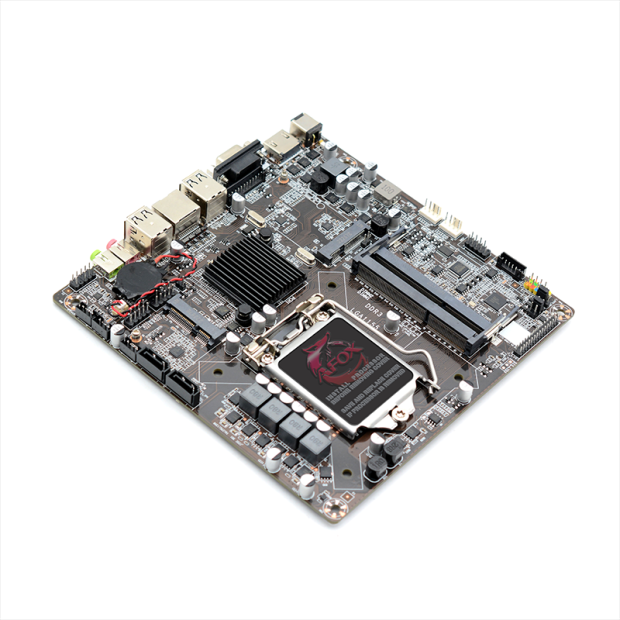

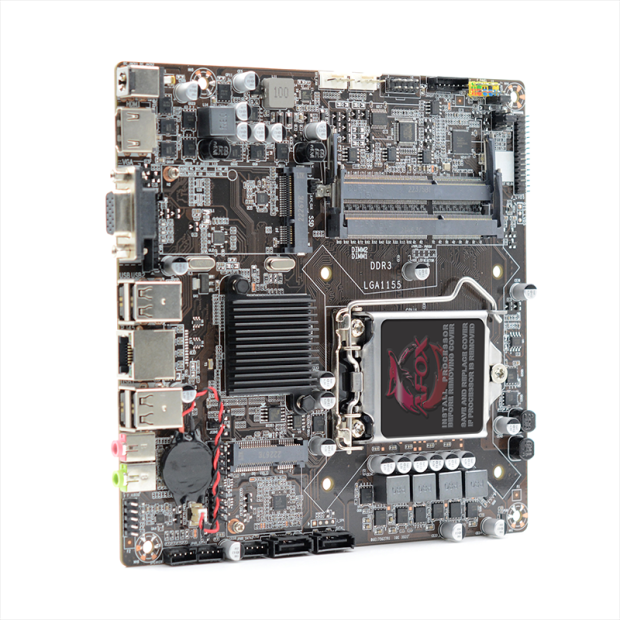

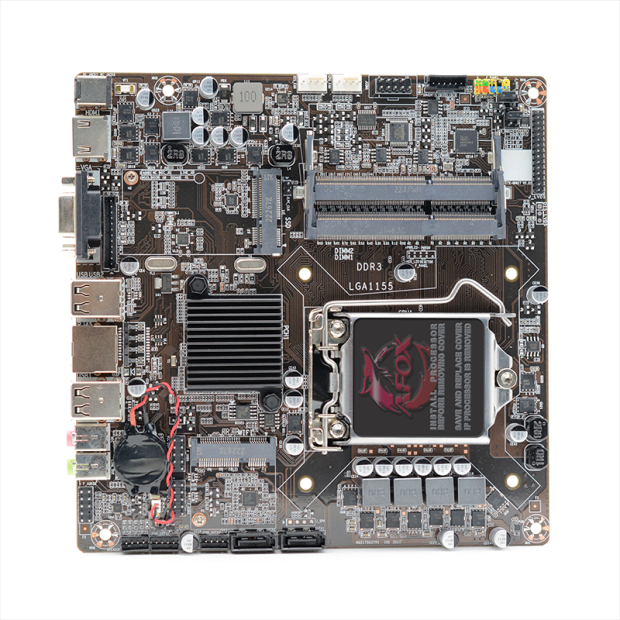

AFH61-MI-V2

Model Name: AFH61-MI-V2
Chipset: Intel® H61
Socket: INTEL® Socket 1155
Supports INTEL® Socket 1155 Processors, including Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors (CPU up to 95 watts)
Dual Channel So-Dimm DDR3L 1.35V
2 x Memory Slot (Max. up to 16GB)
Electromagnetic interference resistance
Strong environmental adaptability
High stability, dustproof and seismic resistance

HD Gallery

DESCRIPTION
SPECIFICATION
BIOS / DRIVERS UPDATE
REQUIREMENT

►So-Dimm DDR3L 1333 / 1600MHz support

►SATA 3Gb/s

►Gigabit LAN

►USB 3.0

►Microsoft Windows 10/11 compatible

Platform	INTEL® Socket 1155
Model Name	AFH61-MI-V2
Chipset	Intel® H61
CPU Supports	Supports INTEL® Socket 1155 Processors, including Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors (CPU up to 95 watts)
FSB	1333 / 1600MHz
Memory	So-Dimm DDR3L 1333 / 1600MHz MHz 1.35V (Memory up to 16GB)
Dimm	2 x Memory Slot (Max. up to 16GB)
Onboard Graphics	Integrated Graphics Processor
PCI/PCI-E Slots	N/A
SATA	2 x SATA2, 1 × MSATA
IDE	N/A
Audio	Realtek 662 on board, supports 6-channel audio-out
LAN	Realtek RTL8111 1000M lan onboard

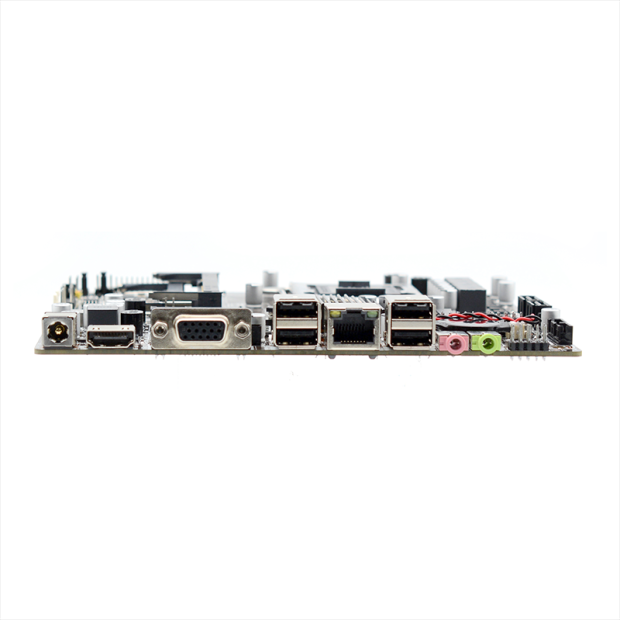

Back Panel I/Os	1 x HDMI 1 x VGA 4 x USB2.0 1 x LAN 2 x Audio
ON-Board Pinheaders/Connectors	2 x USB 2.0 pinheader (support additional 2 USB 2.0s) 1 x Front Panel 1 x COM pinheader 1 x VGA connector 1 x HDMI connector 1 x PWR DC 1 x Mini PCI-E Slot (Supports 4G/WIFI Module)
BIOS	UEFI BIOS
Mounting	4 mounting holes
Form Factor	Mini-ITX (17 x17cm)
