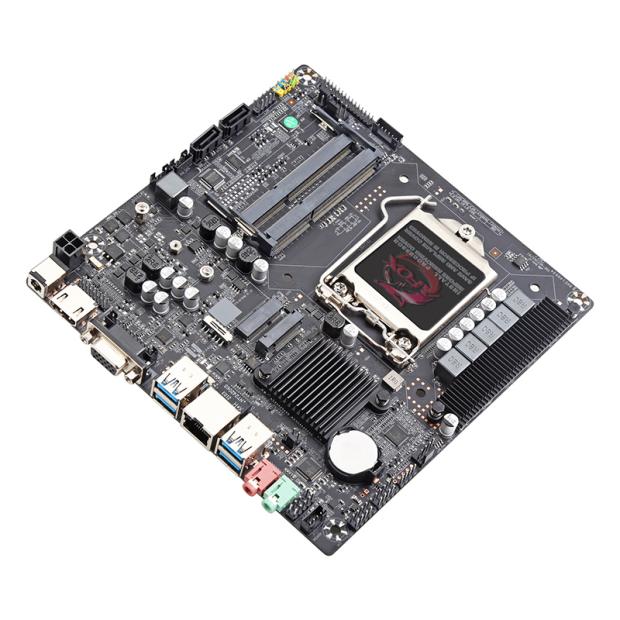

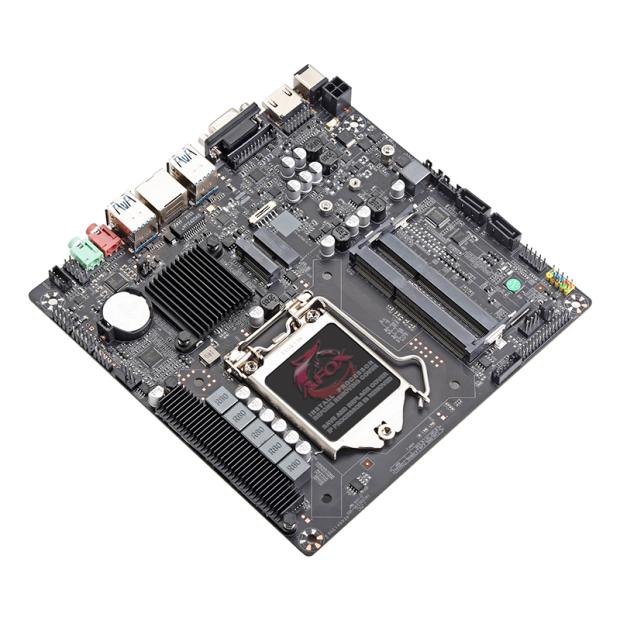

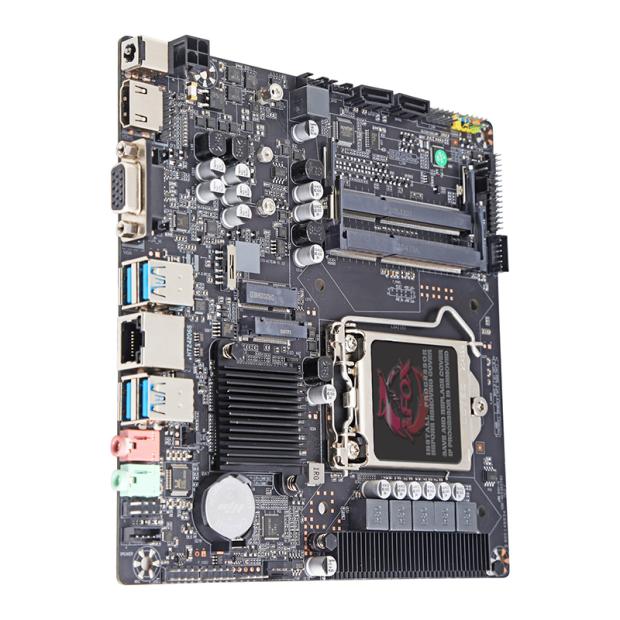

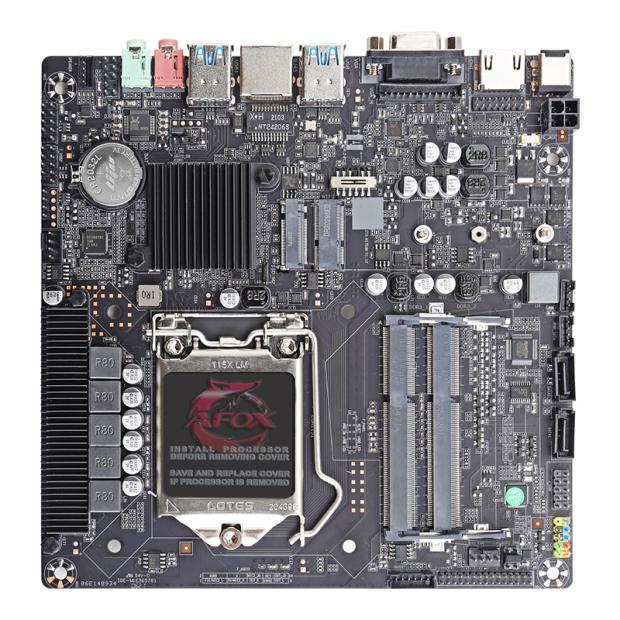

AFH110-MI-V2
Model Name: AFH110-MI-V2
Chipset: Intel® H110
Socket: INTEL® Socket 1151
Supports INTEL® Socket 1151 Processors, including Core i7/Core i5/Core i3 Pentium/Celeron Processors
Supports Intel 8th/9th Generation
Dual Channel So-Dimm DDR3L 1.35V
2 x Memory Slot (Max. up to 16GB)
Electromagnetic interference resistance
Strong environmental adaptability
High stability, dustproof and seismic resistance
HD Gallery
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►So-Dimm DDR3L 1333 / 1600MHz support
►SATA 3Gb/s
►Gigabit LAN
►USB 3.0
►Microsoft Windows 10/11 compatible
|
Platform |
INTEL® Socket 1151 |
|
Model Name |
AFH110-MI-V2 |
|
Chipset |
Intel® H110 |
|
CPU Supports |
Supports INTEL® Socket 1151 Processors, including Core i7/Core i5/Core i3 Pentium/Celeron Processors Supports Intel 8th/9th Generation |
|
FSB |
1333 / 1600MHz |
|
Memory |
So-Dimm DDR3L 1333 / 1600MHz MHz 1.35V (Memory up to 16GB) |
|
Dimm |
2 x Memory Slot (Max. up to 16GB) |
|
Onboard Graphics |
Integrated Graphics Processor |
|
PCI/PCI-E Slots |
N/A |
|
SATA |
2 x SATA2 1x M.2 SATA (PCIe NVMe Gen3 x4 & SATA3) |
|
IDE |
N/A |
|
Audio |
Realtek 662 on board, supports 6-channel audio-out |
|
LAN |
Realtek RTL8111 1000M lan onboard |
|
Back Panel I/Os |
1 x HDMI 1 x VGA 4 x USB 3.0 1 x LAN 2 x Audio |
|
ON-Board Pinheaders/Connectors |
2 x USB 2.0 pinheader (support additional 2 USB 2.0s) |
|
BIOS |
UEFI BIOS |
|
Mounting |
4 mounting holes |
| Form Factor | Mini-ITX (17 x17cm) |
