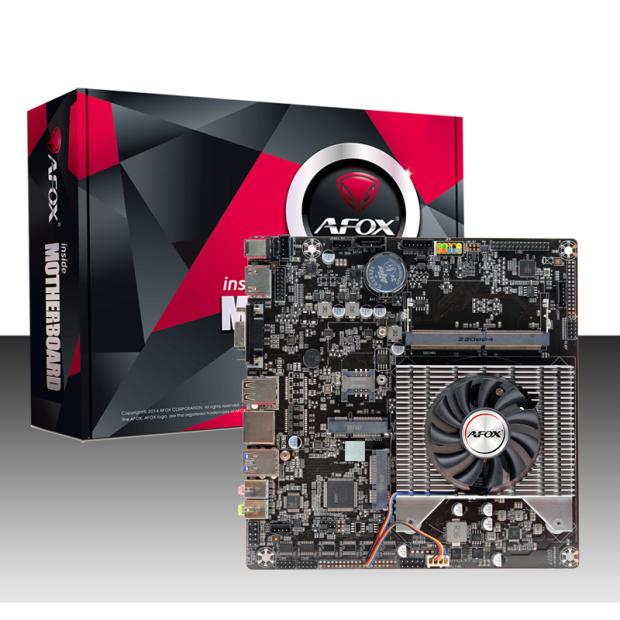

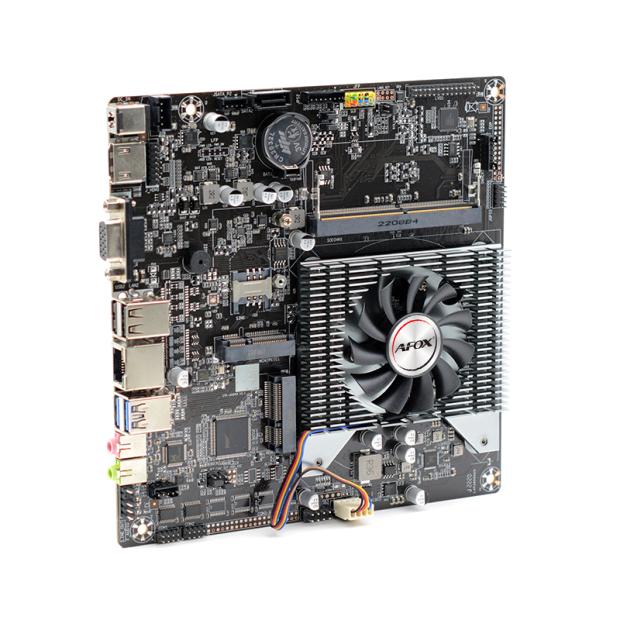

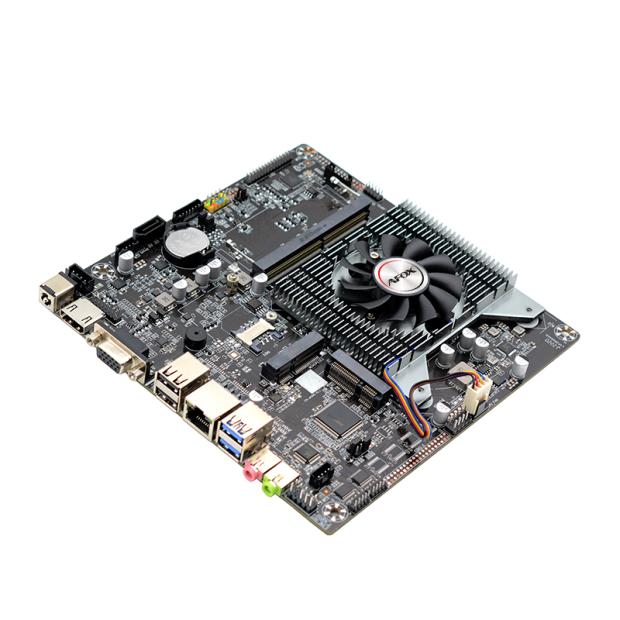

AFOX AFMIJ4125-1L

Model Name: AFMIJ4125-1L
Chipset: N/A
Socket: INTEL® Socket 1090
Supports Intel® Celeron® Processor J4125 4M Cache, up to 2.70 GHz Embedded
So-Dimm DDR4 2133/2400MHz 1.2V
1 x Memory Slot (Max. up to 8GB)
Electromagnetic interference resistance
Strong environmental adaptability
High stability, dustproof and seismic resistance


HD Gallery

  • DESCRIPTION
  • SPECIFICATION
  • BIOS / DRIVERS UPDATE
  • REQUIREMENT

►So-Dimm DDR4 2133/2400MHz support

►SATA 6Gb/s

►Gigabit LAN

►USB 3.0

►Microsoft Windows 10/11 compatible

Platform

INTEL® Socket 1090

Model Name

AFMIJ4125-1L

Chipset

N/A

CPU Supports

Intel® Celeron® Processor J4125 4M Cache, up to 2.70 GHz Embedded

FSB

2133/2400MHz

Memory

So-Dimm DDR4 2133/2400MHz 1.2V (Memory up to 8GB)

Dimm

1 x Memory Slot (Max. up to 8GB)

Onboard Graphics

Integrated Graphics Processor

PCI/PCI-E Slots

N/A

SATA

1 x SATA3.0, 1 x MSATA

IDE

N/A

Audio

Realtek 662 on board, supports 6-channel audio-out

LAN

Realtek RTL8111 1000M lan onboard

Back Panel I/Os

1 x HDMI
1 x VGA
2 x USB 2.0,  2 x USB 3.0
1 x LAN
2 x Audio

ON-Board Pinheaders/Connectors

1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x Front Panel
2 x COM pinheader
1 x Front Panel Audio pinheader
1 x HDMI connector
1 x LVDS
1 x PWR DC (19V 5A)
1 x DC_JACK
1 x SIM_CARD
1 x 4G/WIFI
Form Factor Mini-ITX (17 x17cm)
