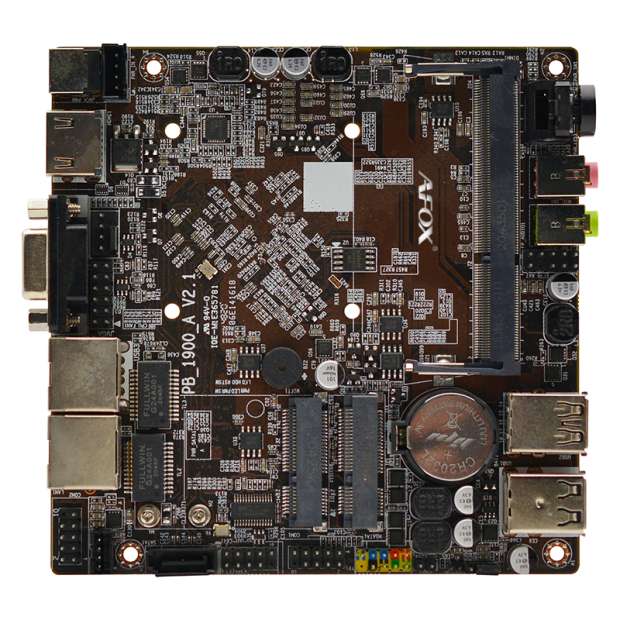

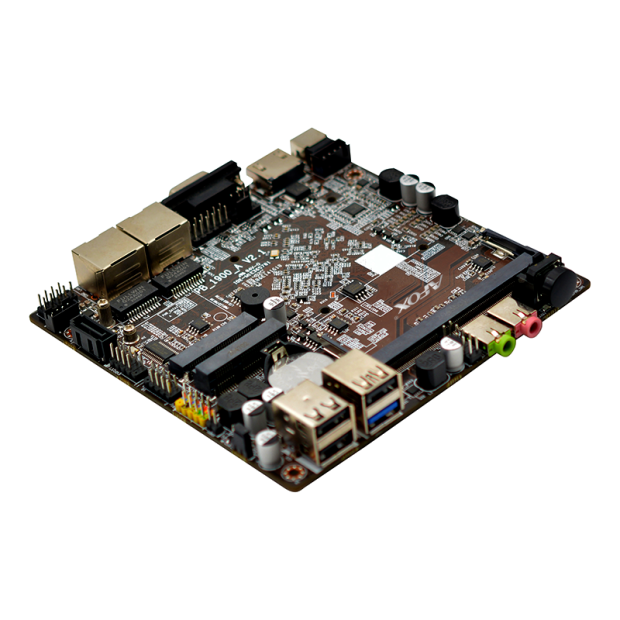

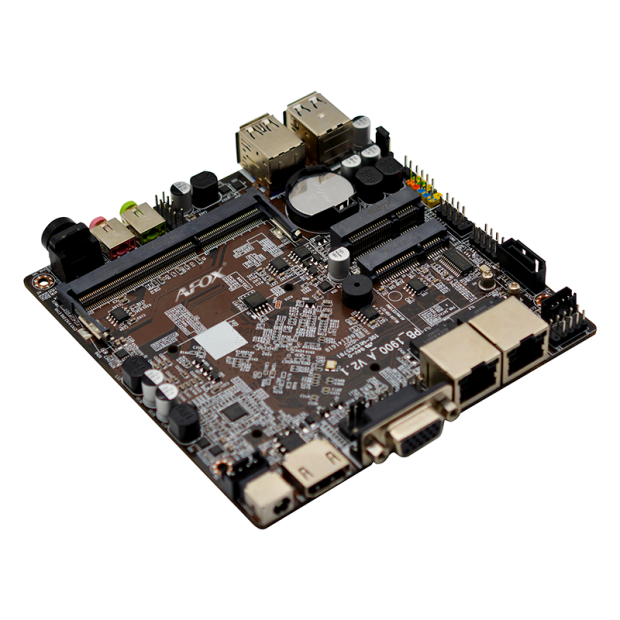

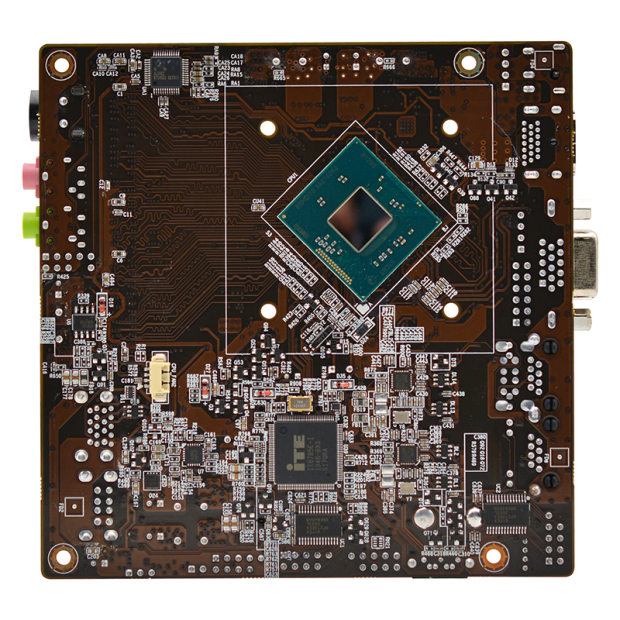

AFOX AFNIJ1800-2L

Model Name: AFNIJ1800-2L
Chipset: N/A
Socket: INTEL® Socket 1170
Supports Intel® Celeron® J1800 Processor Embedded
So-Dimm DDR3L 1333/1600MHz 1.35V
1 x Memory Slot (Max. up to 8GB)
Electromagnetic interference resistance
Strong environmental adaptability
High stability, dustproof and seismic resistance

HD Gallery

DESCRIPTION
SPECIFICATION
BIOS / DRIVERS UPDATE
REQUIREMENT

►So-Dimm DDR3L 1333/1600MHz support

►SATA 3Gb/s

►Gigabit LAN

►USB 3.0

►Microsoft Windows 10/11 compatible

Platform	INTEL® Socket 1170
Model Name	AFNIJ1800-2L
Chipset	N/A
CPU Supports	Intel® Celeron® J1800 Processor Embedded
FSB	1333/1600MHz
Memory	So-Dimm DDR3L 1333/1600MHz 1.35V (Memory up to 8GB)
Dimm	1 x Memory Slot (Max. up to 8GB)
Onboard Graphics	Integrated Graphics Processor
PCI/PCI-E Slots	N/A
SATA	1 x SATA2, 1 × MSATA
IDE	N/A
Audio	Realtek 662 on board, supports 6-channel audio-out
LAN	Realtek RTL8111 1000M lan onboard
Back Panel I/Os	1 x HDMI 1 x VGA 2 x USB2.0, 2 x USB 3.0 2 x LAN 2 x Audio
ON-Board Pinheaders/Connectors	2 x USB 2.0 pinheader (support additional 4 USB 2.0s) 2 x Front Panel 2 x COM pinheader 1 x Front Panel Audio pinheader 1 x VGA connector 1 x HDMI connector 1 x PWR DC 1 x 4G/WIFI
BIOS	UEFI BIOS
Mounting	4 mounting holes
Form Factor	Nano Mini-ITX (12 x12cm)
