AFOX AFMIH110-1L
Model Name: AFMIH110-1L
Chipset: Intel® H110
Socket: INTEL® Socket 1151
Supports INTEL® Socket 1151 Processors, including Intel Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors, Supports Intel 6th, 7th, 8th and 9th Generation
So-Dimm DDR4 2133/2400MHz 1.2V
1 x Memory Slot (Max. up to 16GB)
Electromagnetic interference resistance
Strong environmental adaptability
High stability, dustproof and seismic resistance

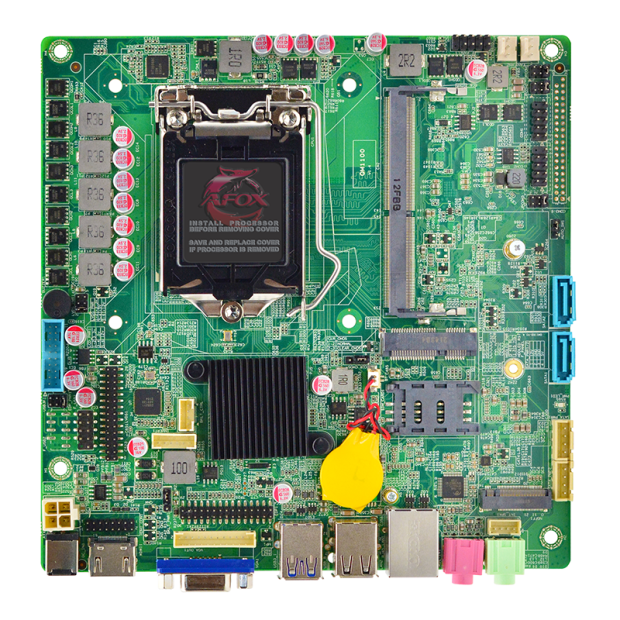

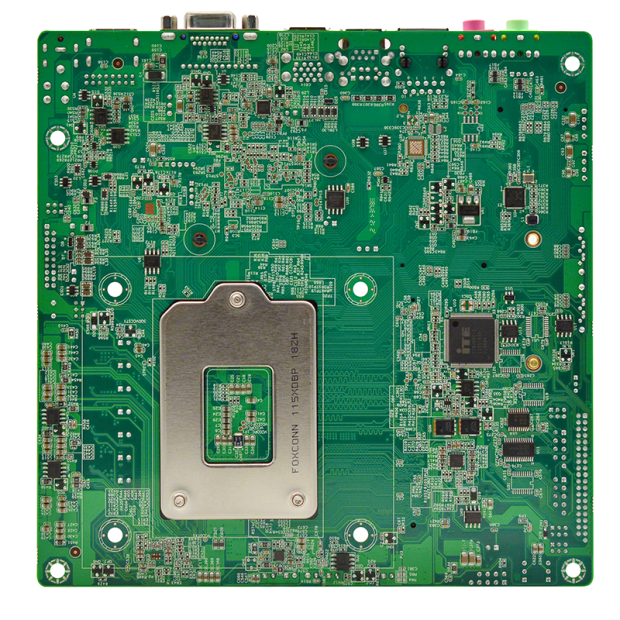

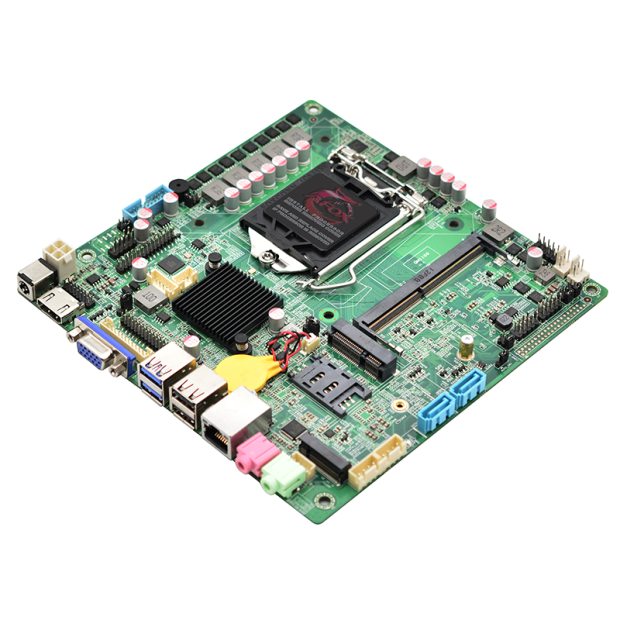

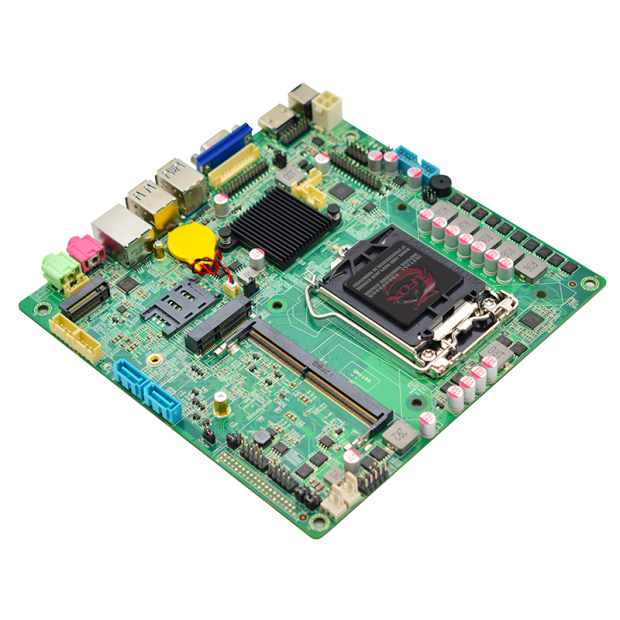

HD Gallery
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►Intel® H110 Express Chipset
►So-Dimm DDR4 2133/2400MHz support
►SATA 6Gb/s
►Gigabit LAN
►USB 3.0
►Microsoft Windows 10/11 compatible
|
Platform |
INTEL® Socket 1151 |
|
Model Name |
AFMIH110-1L |
|
Chipset |
Intel® H110 |
|
CPU Supports |
INTEL® Socket 1151 Processors, including Intel Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors, Supports Intel 6th, 7th, 8th and 9th Generation |
|
FSB |
2133/2400MHz |
|
Memory |
So-Dimm DDR4 2133/2400MHz 1.2V (Memory up to 16GB) |
|
Dimm |
1 x Memory Slot (Max. up to 16GB) |
|
Onboard Graphics |
Integrated Graphics Processor |
|
PCI/PCI-E Slots |
N/A |
|
SATA |
2 x SATA3.0, 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3) |
|
IDE |
N/A |
|
Audio |
Realtek 662 on board, supports 6-channel audio-out |
|
LAN |
Realtek RTL8111 1000M lan onboard |
|
Back Panel I/Os |
1 x HDMI 1 xVGA 2 x USB2.0, 2 x USB 3.0 1 x LAN 2 x Audio |
|
ON-Board Pinheaders/Connectors |
1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 2 x Front Pane 2 x COM pinheader 1 x Front Panel Audio pinheader 1 x VGA connector 1 x HDMI connector 1 x LVDS 1 x PWR DC 1 x ATX12V, 4P 1 x SIM_CARD 1 x 4G/WIFI |
|
BIOS |
UEFI BIOS |
|
Mounting |
4 mounting holes |
| Form Factor | Mini-ITX (17 x17cm) |
