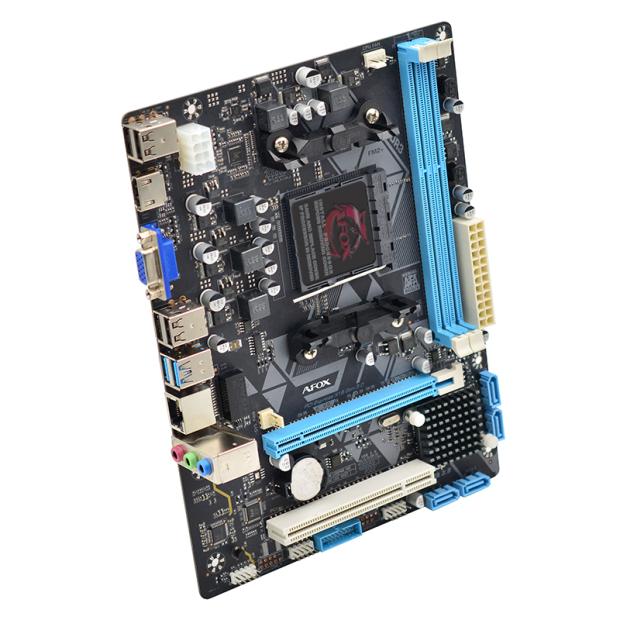

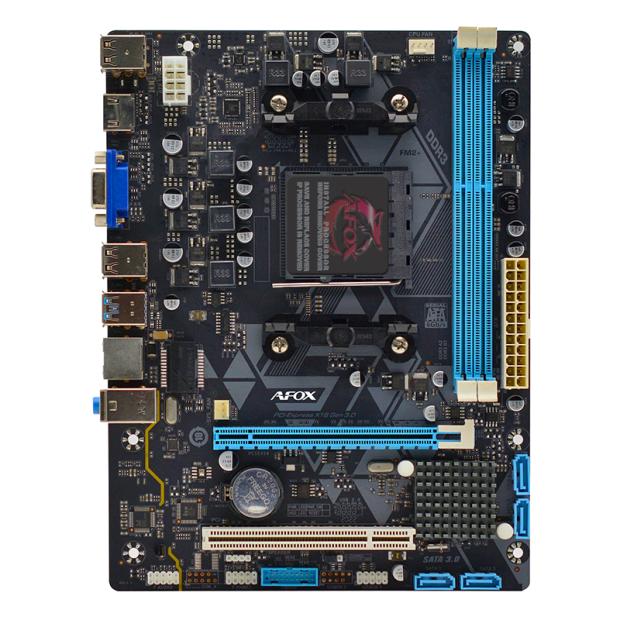

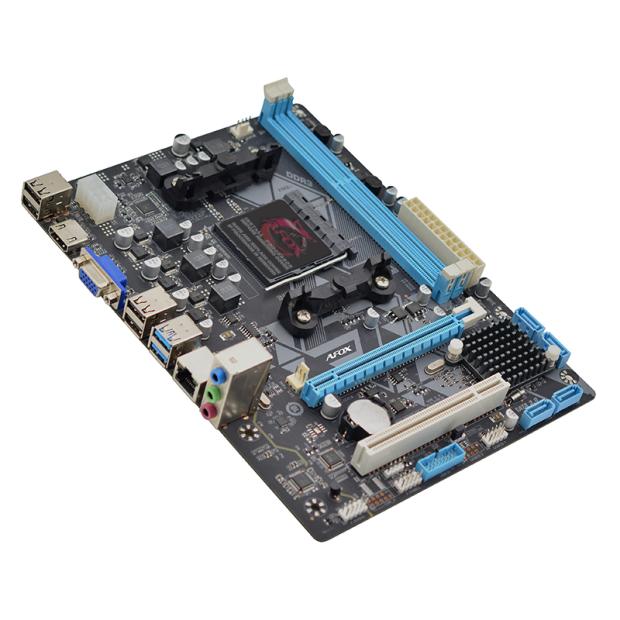

AFOX A88-MA5-V2

Model Name: A88-MA5-V2
Chipset:AMD® A88
Socket: AMD Socket FM2/FM2+
Supports AMD LGA FM2 / FM2+ Processors: AD740X/A4-5300 (AD5300)/A10-5700/A8-5600/A10-5800/AD760KWOA44HL/A6-5400/A10-7800(AD785K)/A10-7800(AD7870K)/A8-7600(AD765K)/A8-7600(AD760B)/AD860K/AD840/A6-7400/A6-7480/A8-7680(CPU up to 95 watts)
Dual channel DDR3
1066/1333/1600MHz Memory up to 16GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Design of Gigabit high-speed network card
High definition interface＋multi-screen display
Keep fighting with ease

HD Gallery

DESCRIPTION
SPECIFICATION
BIOS / DRIVERS UPDATE
REQUIREMENT

►AMD® A88

►Dual-Channel DDR3 1066/1333/1600MHz Memory up to 16GB

►SATA 3Gb/s

►Gigabit LAN

►PCI Express Architecture

►USB 3.0

Platform	AMD Socket FM2 / FM2+
Model Name	A88-MA5-V2
Chipset	AMD® A88
CPU Supports	AMD LGA FM2 / FM2+ Processors: AD740X/A4-5300 (AD5300)/A10-5700/A8-5600/A10-5800/AD760KWOA44HL/A6-5400/A10-7800(AD785K)/A10-7800(AD7870K)/A8-7600(AD765K)/A8-7600(AD760B)/AD860K/AD840/A6-7400/A6-7480/A8-7680(CPU up to 95 watts)
FSB	1066/1333/1600MHz
Memory	Dual Channel DDR3 1066/1333/1600MHz
Dimm	2 x Memory Slots (Max. capacity of system memory 16GB)
Onboard Graphics	Integrated AMD APU graphics
PCI/PCI-E Slots	1 x PCI Express x16 slot, 1 x PCI x1 slot
SATA	4 x SATA2
IDE	N/A
Audio	Realtek 662 on board, Supports 6-channel audio-out
LAN	Realtek RTL8111 Gigabit Ethernet on board

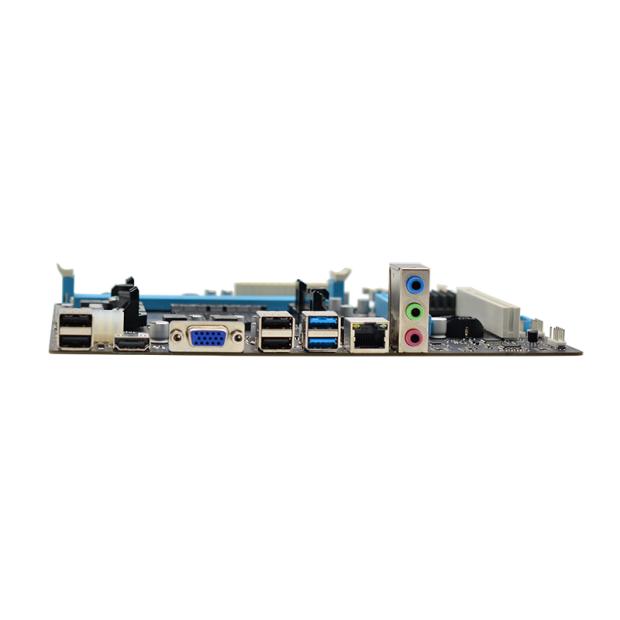

Back Panel I/Os	1 x HDMI Port 1 x D-Sub (VGA) Port 2 x USB 3.0 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jack (Line in / Front Speaker / Microphone)
ON-Board Pinheaders/Connectors	1x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader
BIOS	UEFI BIOS
Form Factor	Micro-ATX (17*22.5cm)
Mounting	6 mounting holes
Accessories	1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD
