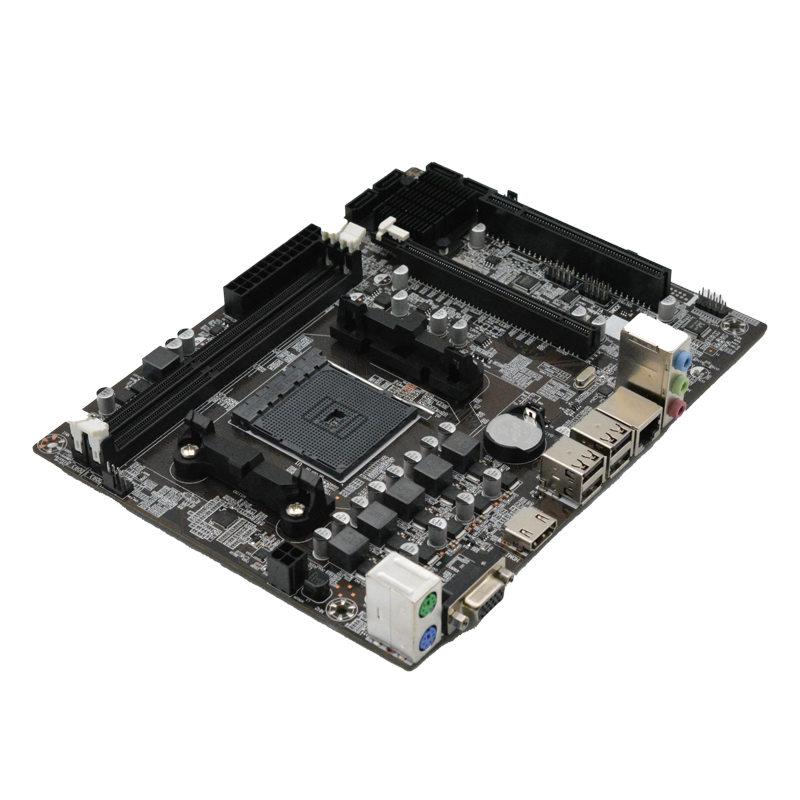

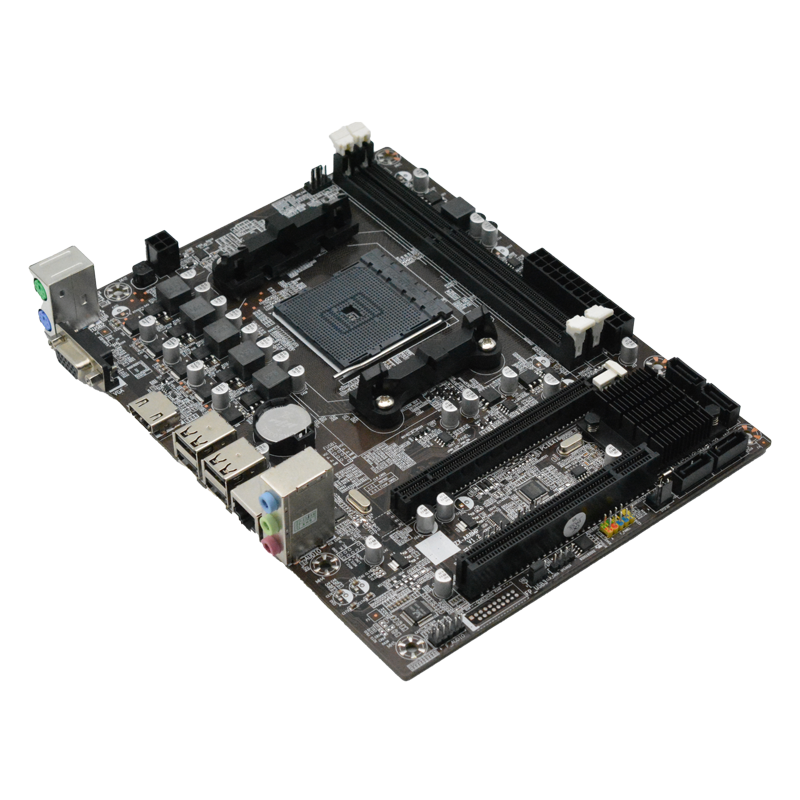

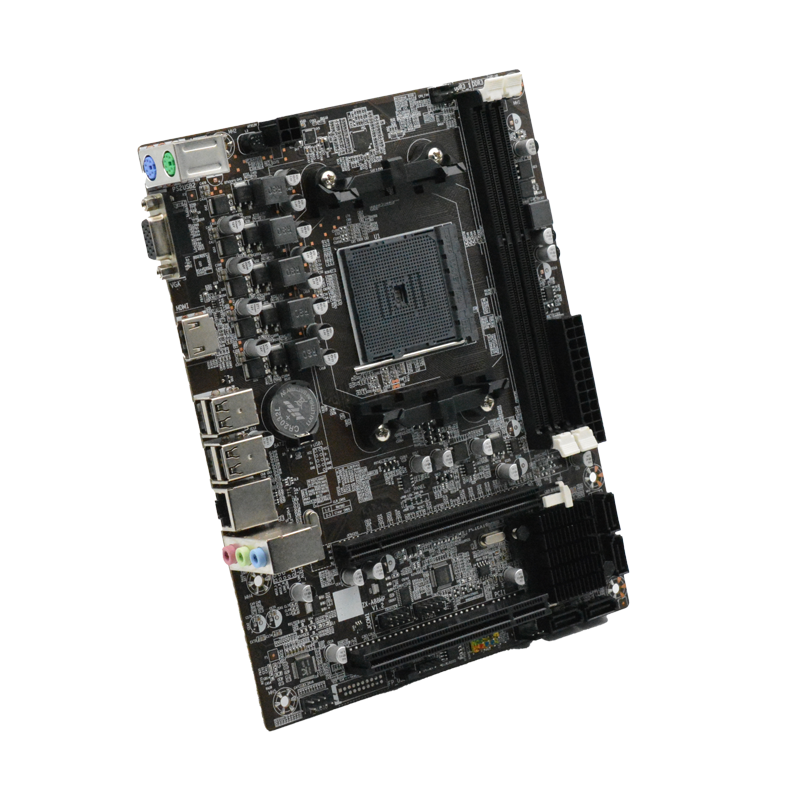

AFOX A68-MA2

Model Name: A68-MA2
Chipset:AMD
® A68
Socket: AMD Socket FM2/FM2+
Supports the generation of AMD LGA FM2 / FM2+ Processors.
Dual channel DDR3, two memory slots
1066/1333/1600MHz Memory up to 16GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Design of Gigabit high-speed network card
Keep fighting with ease


  • DESCRIPTION
  • SPECIFICATION
  • BIOS / DRIVERS UPDATE
  • REQUIREMENT

►AMD® A68

AMD® Dual Graphics Technology

►Dual-Channel DDR3 1066/1333/1600MHz Memory up to 16GB

►SATA 3Gb/s

►Gigabit LAN


►PCI Express Architecture

►USB 3.0

Platform

AMD Socket FM2 / FM2+

Model Name

A68-MA2

Chipset

AMD® A68

CPU Supports

AMD LGA FM2 / FM2+ Processors: AD740X/A4-5300 (AD5300)/A10-5700/A8-5600/A10-5800/AD760KWOA44HL/A6-5400/A10-7800(AD785K)/A10-7800(AD7870K)/A8-7600(AD765K)/A8-7600(AD760B)/AD860K/AD840/A6-7400/A6-7480/A8-7680(CPU up to 95 watts)

FSB

1066/1333/1600MHz

Memory

Dual Channel DDR3 1066/1333/1600MHz

Dimm

2 x Memory Slots (Max. capacity of system memory 16GB)

Onboard Graphics

Integrated AMD APU graphics

PCI/PCI-E Slots

1 x PCI Express x16 slot, 1 x PCI x1 slot

SATA

4 x SATA2

IDE

N/A

Audio

Realtek 662 on board, Supports 6-channel audio-out

LAN

Realtek RTL8105/8106 10/100Mbps Ethernet on board

Back Panel I/Os

1 x HDMI Port
1 x D-Sub (VGA) Port
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
2 x USB 3.0 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
3 x HD Audio Jack (Line in / Front Speaker / Microphone)

ON-Board Pinheaders/Connectors

1x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
1 x Front Panel Audio pinheader

BIOS

UEFI BIOS

Form Factor

Micro-ATX (17*22cm)

Mounting

6 mounting holes

Accessories

1 x SATA II cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD
