AFOX A780S-MA3-V2
Model Name: A780S-MA3-V2
Chipset:AMD® RS780 + AMD SB710/SB700
Socket: AMD Socket AM3 and AM3+
Supports the generation of AMD Phenom Athlon™ X4 Processors*
Dual channel DDR3, two memory slots
1066/1333/1600MHz Memory up to 16GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Design of Gigabit high-speed network card
Reasonable layout, complete interface and great expansion performance
Incredible performance for gaming

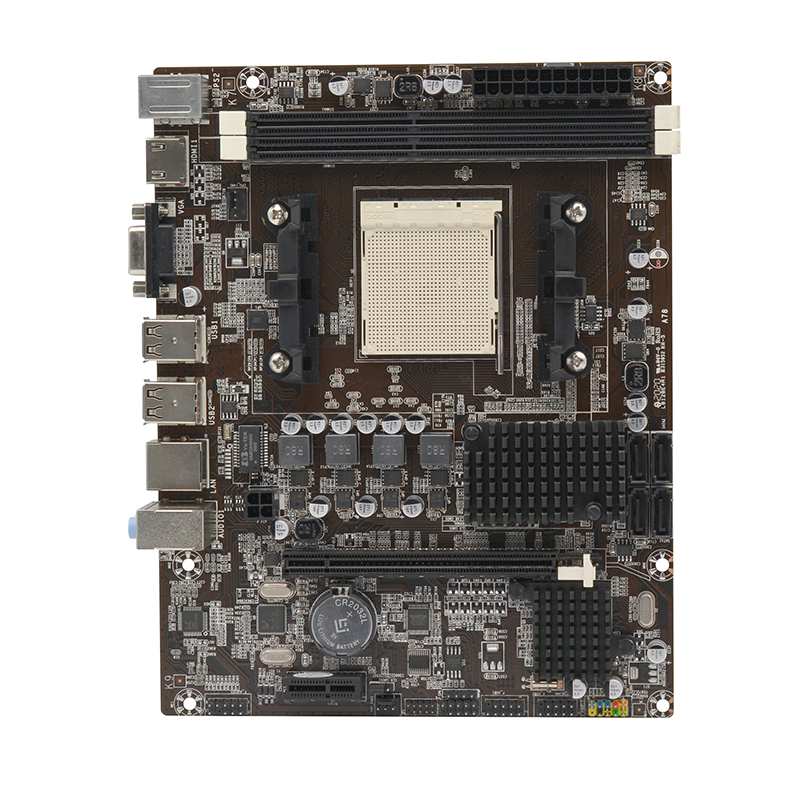

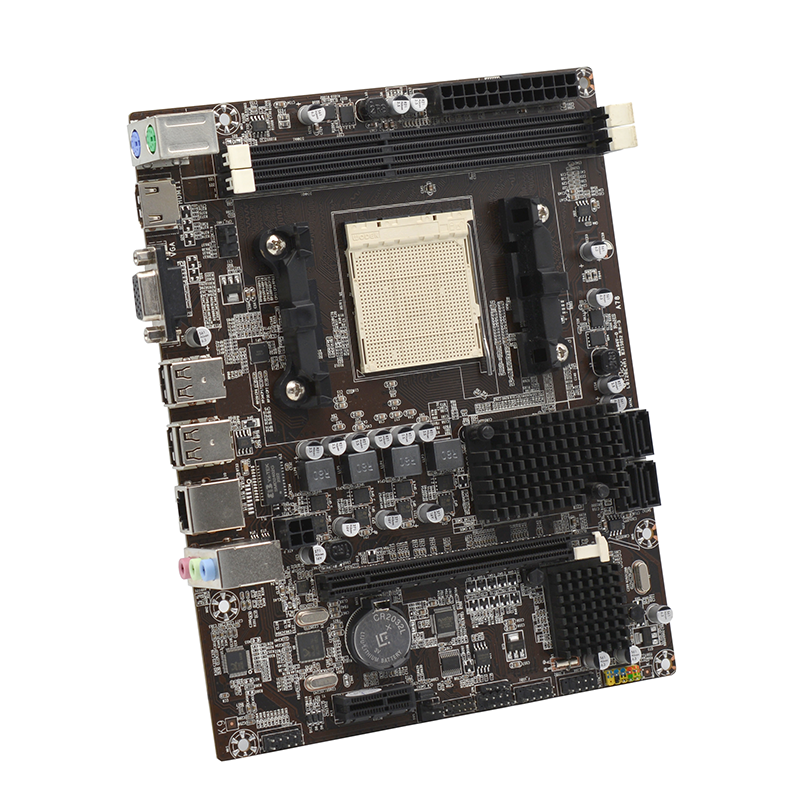

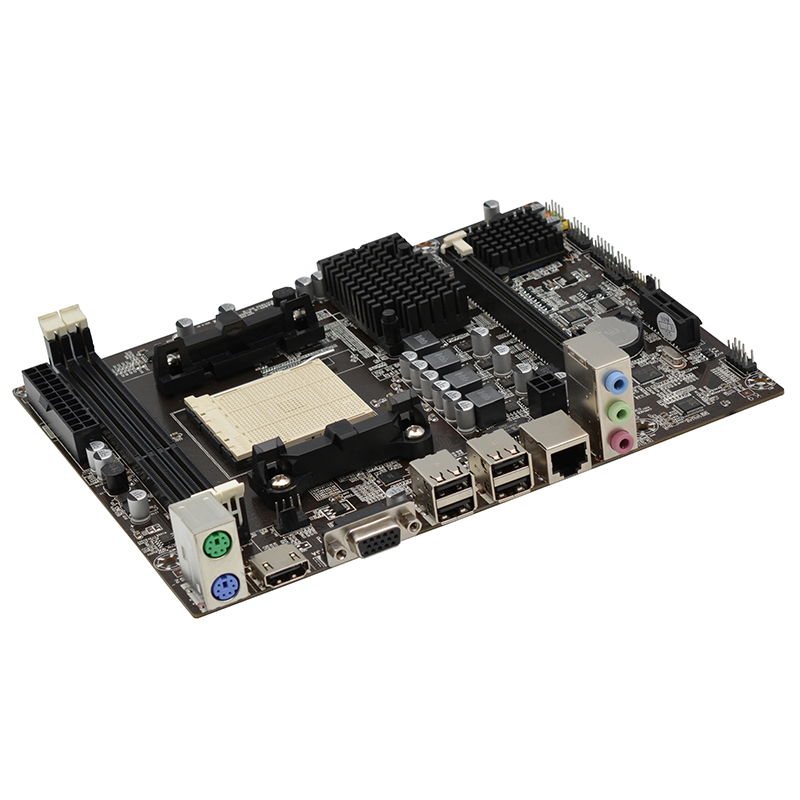

HD Gallery
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►AMD® A780S
►Support AMD® Phenom Athlon™ X4 Processors*
►Dual-Channel DDR3 1066/1333/1600MHz Memory up to 16GB
►SATA 3Gb/s
►Gigabit LAN
►PCI Express Architecture
►USB 2.0
Platform |
AMD Socket AM3 and AM3+ |
Model Name |
A780S-MA3-V2 |
Chipset |
AMD® RS780 + AMD SB710/SB700 |
CPU Supports |
AMD Phenom Athlon™ X4 Processors*: FX-8370/FX-8350/FX-8320/FX-8150/FX-8310/FX-8370E/FX-8300/FX-8320E/FX-6350/FX-8140/FX-8120/FX-6300/FX-6200/FX-6120/FX-6100/FX-4350/FX-4170/FX-4300/FX-4150/FX-4130/FX-4100 (CPU up to 95 watts) |
FSB |
1066/1333/1600MHz |
Memory |
Dual Channel DDR3 1066/1333/1600MHz |
Dimm |
2 x Memory Slots (Max. capacity of system memory 16GB) |
Onboard Graphics |
Integrated AMD Radeon™ HD 3000 series graphics |
PCI/PCI-E Slots |
1 x PCI Express x16 3.0 slot, 1 x PCI Express x1 slot |
SATA |
4 x SATA2 |
IDE |
1 x IDE |
Audio |
Realtek 662 on board, Supports 6-channel audio-out |
LAN |
Realtek RTL8111 Gigabit Ethernet on board |
Back Panel I/Os |
1 x HDMI Port 1 x D-Sub (VGA) Port 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jack (Line in / Front Speaker / Microphone) |
ON-Board Pinheaders/Connectors |
2 x USB 2.0 pinheader (supports additional 4 x USB 2.0s) 1 x Front Panel Audio pinheader |
BIOS |
Supports BIOS update |
Form Factor |
Micro-ATX (17*22 cm) |
Mounting |
6 mounting holes |
Accessories |
1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
Motherboard Bios: DOWNLOAD
