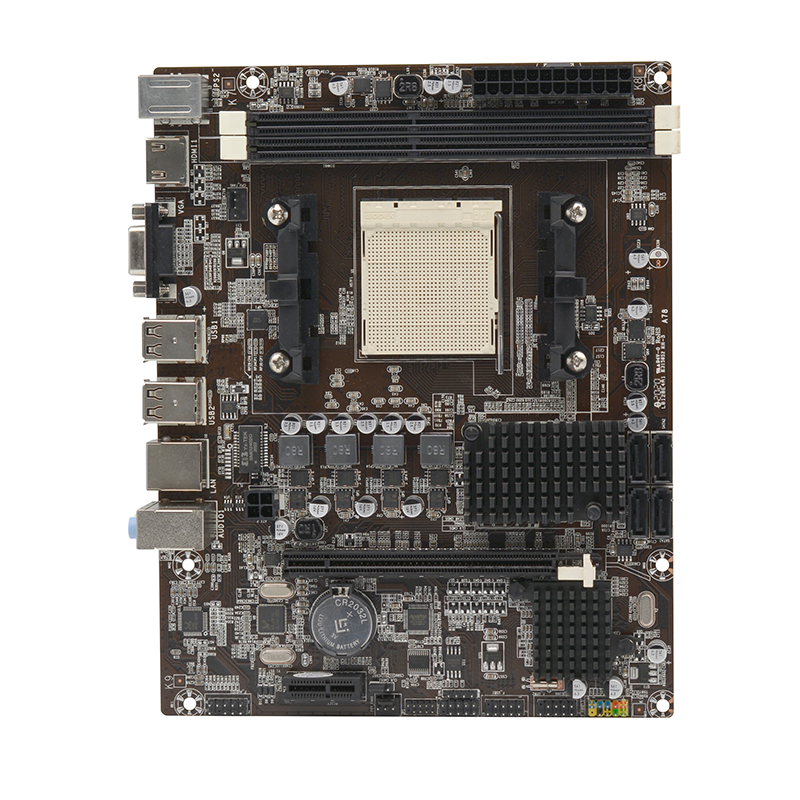

AFOX A78-MAD3
Model Name: A78-MAD3
Chipset:AMD® A78
Socket: AMD Socket AM3
Supports the generation of AMD Phenom™ II / Athlon™ X3 / Athlon™ X2 / Athlon™ X4 Processors
Dual channel DDR3, two memory slots
1066/1333MHz Memory up to 16GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Design of Gigabit high-speed network card
Reasonable layout, complete interface and great expansion performance
Incredible performance for gaming
HD Gallery
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►AMD® A78
►Support AMD® Phenom™II/ Athlon™X4/ Athlon™X3/ Athlon™X2 CPU
►Dual-Channel DDR3 1066/1333MHz Memory up to 16GB
►SATA 3Gb/s
►Gigabit LAN
►PCI Express Architecture
►USB 2.0
|
Platform |
AMD Socket AM3 |
|
Model Name |
A78-MAD3 |
|
Chipset |
AMD® RS780 + AMD SB710/SB700 |
|
CPU Supports |
AMD Phenom™ II / Athlon™ X3 / Athlon™ X2 / Athlon™ X4 Processors: |
|
FSB |
1066/1333/1600MHz |
|
Memory |
Dual Channel DDR3 1066/1333/1600MHz |
|
Dimm |
2 x Memory Slots (Max. capacity of system memory 16GB) |
|
Onboard Graphics |
Integrated AMD Radeon™ HD 3000 series graphics |
|
PCI/PCI-E Slots |
1 x PCI Express x16 3.0 slot, 1 x PCI Express x1 slot |
|
SATA |
4 x SATA2 |
|
IDE |
1 x IDE |
|
Audio |
Realtek 662 on board, Supports 6-channel audio-out |
|
LAN |
Realtek RTL8105/8106 10/100Mbps Ethernet on board |
|
Back Panel I/Os |
1 x D-Sub (VGA) Port 1 x DVI Port 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jack (Line in / Front Speaker / Microphone) |
|
ON-Board Pinheaders/Connectors |
2 x USB 2.0 pinheader (supports additional 4 x USB 2.0s) 1 x Front Panel Audio pinheader |
|
BIOS |
Supports BIOS update |
|
Form Factor |
Micro-ATX (17*21 cm) |
|
Mounting |
6 mounting holes |
|
Accessories |
1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
