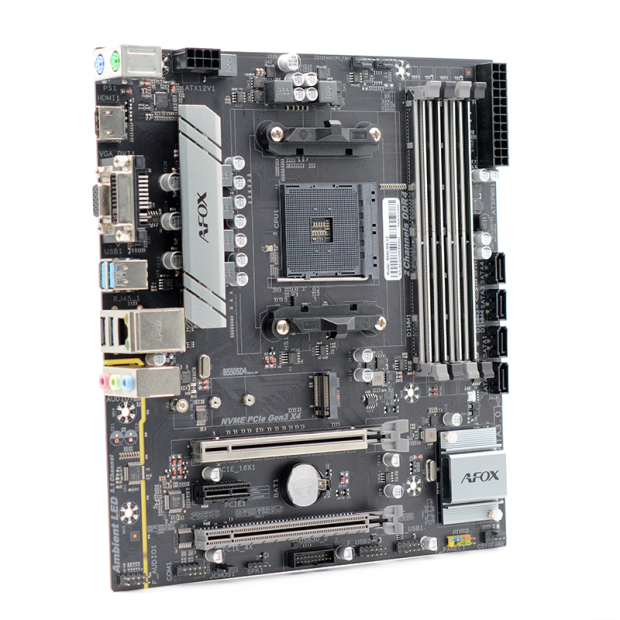

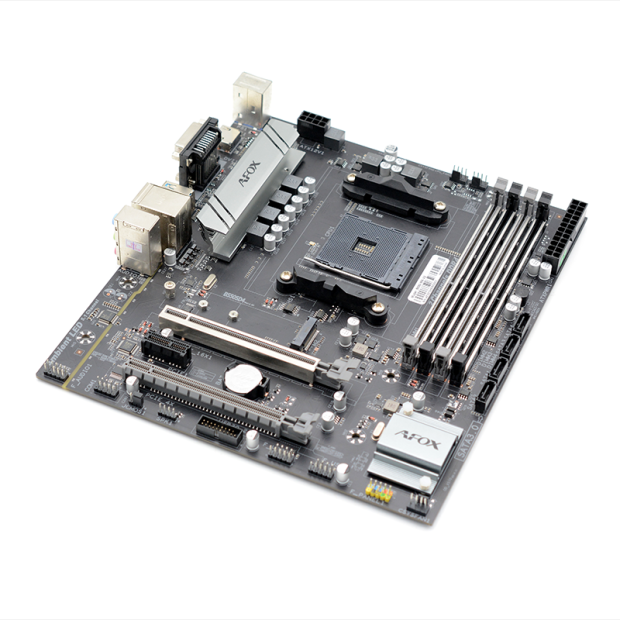

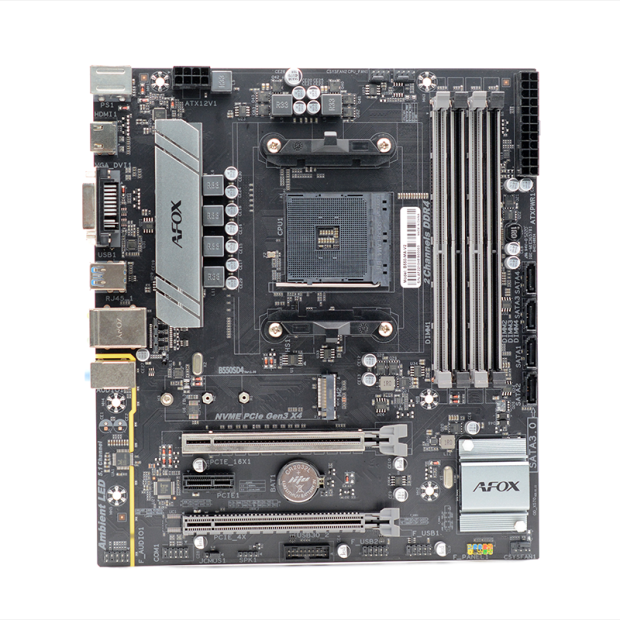

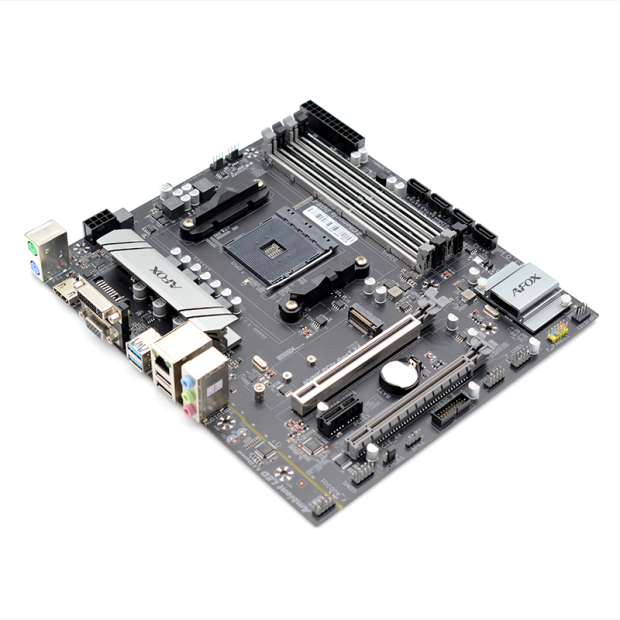

AFOX B550-MA-V2
Model Name: B550-MA-V2
Chipset: AMD® B550
Socket: AMD Socket AM4
Supports AMD Ryzen 5000 Series/Ryzen 5000 G Series/Ryzen 4000 G Series and Ryzen 3000 Series processors
4 x DDR4 Memory Slots
DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz
Memory up to 128GB
High speed USB interface
High quality audio special capacitor
Design of Gigabit high-speed network card
Release long-term performance, with both stability and longevity
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►AMD® B550
►4 x DDR4 Memory Slots, 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz Support
►SATA 6Gb/s
►Gigabit LAN
►PCI Express 3.0 Architecture
►USB 3.0
|
Platform |
AMD Socket AM4 |
|
Model Name |
B550-MA-V2 |
|
Chipset |
AMD® B550 |
|
CPU Supports |
Supports AMD Ryzen 5000 Series/Ryzen 5000 G Series/Ryzen 4000 G Series and Ryzen 3000 Series processors |
|
FSB |
2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz |
|
Memory |
4 x DDR4 Memory Slots DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz 1.2V |
|
Dimm |
4 x Memory Slots (Max. capacity of system memory 128GB) |
|
Onboard Graphics |
Integrated AMD Radeon™ Vega series / R Series graphics |
|
PCI/PCI-E Slots |
1 x PCI Express x16 4.0 slot, 1 x PCI Express x 4 slot, 1 x PCI Express x 1 slot |
|
SATA |
4 x SATA3, 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3) |
|
IDE |
N/A |
|
Audio |
Realtek 662 on board, Supports 6-channel audio-out |
|
LAN |
Realtek RTL8111 Gigabit Ethernet on board Wake-On-LAN |
|
Back Panel I/Os |
1 x HDMI Port 1 x D-Sub (VGA) Port 1 x DVI Port 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 4 x USB 3.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jack (Line in / Front Speaker / Microphone) |
|
ON-Board Pinheaders/Connectors |
2 x USB 2.0 pinheader (supports additional 4 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader and 1 x Front Panel COM pinheader |
|
BIOS |
UEFI BIOS |
|
Form Factor |
Micro-ATX (22 x 24.5 cm) |
|
Mounting |
6 mounting holes |
|
Accessories |
1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
