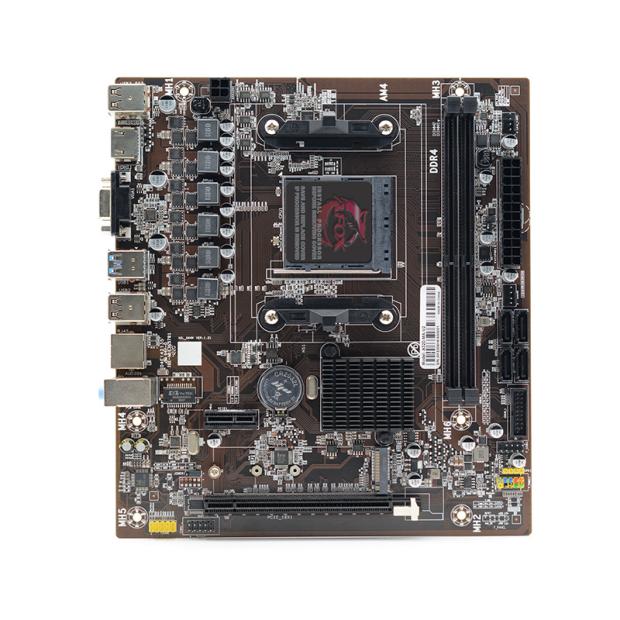

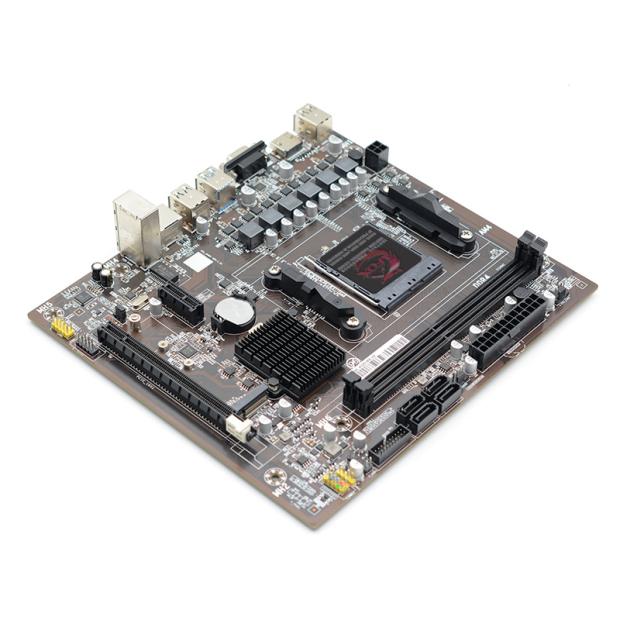

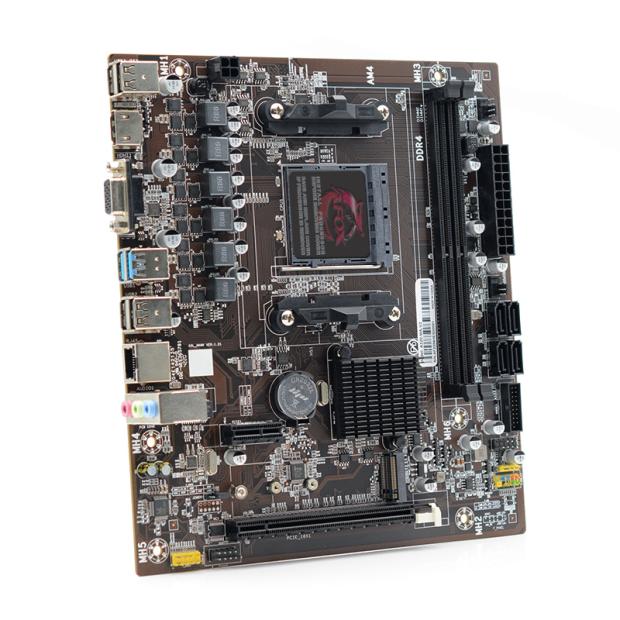

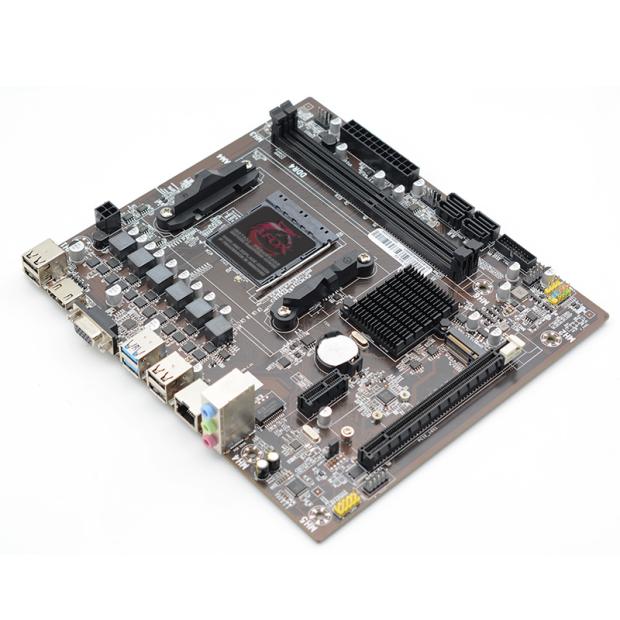

AFOX A320-MA-V2

Model Name: A320-MA-V2
Chipset: AMD® A320
Socket: AMD Socket AM4
Supports AMD Ryzen 5000 Series/Ryzen 5000 G Series/Ryzen 4000 G Series and Ryzen 3000 Series processors

Dual channel DDR4, two memory slots
2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz Memory up to 32GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Design of Gigabit high-speed network card
Release long-term performance, with both stability and longevity


HD Gallery

  • DESCRIPTION
  • SPECIFICATION
  • BIOS / DRIVERS UPDATE
  • REQUIREMENT

►AMD® A320

►AMD® Dual Graphics Technology


►Dual-Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz support

SATA 6Gb/s

Gigabit LAN

►PCI Express Architecture

USB 3.0

Platform

AMD Socket AM4

Model Name

A320-MA-V2

Chipset

AMD® A320

CPU Supports

Supports AMD Ryzen 5000 Series/Ryzen 5000 G Series/Ryzen 4000 G Series and Ryzen 3000 Series processors

FSB

2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz

Memory

Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz 1.2V

Dimm

2 x Memory Slots (Max. capacity of system memory 32GB)

Onboard Graphics

Integrated AMD Radeon™ Vega series / R Series graphics

PCI/PCI-E Slots

1 x PCI Express x16 3.0 slot, 1 x PCI Express x1 slot

SATA

4 x SATA3, 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3)

IDE

N/A

Audio

Realtek 662 on board, Supports 6-channel audio-out

LAN

Realtek RTL8111 1000Mbps Ethernet on board

Back Panel I/Os

1 x HDMI Port
1 x D-Sub (VGA) Port
2 x USB 3.0 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port with LED
3 x HD Audio Jack (Line in / Front Speaker / Microphone)

ON-Board Pinheaders/Connectors

1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
1 x Front Panel Audio pinheader and 1 x Front Panel COM pinheader

BIOS

UEFI BIOS

Form Factor

Micro-ATX (22 x 20 cm)

Mounting

6 mounting holes

Accessories

1 x SATA II cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD

User's Manual

Motherboard Bios: DOWNLOAD
