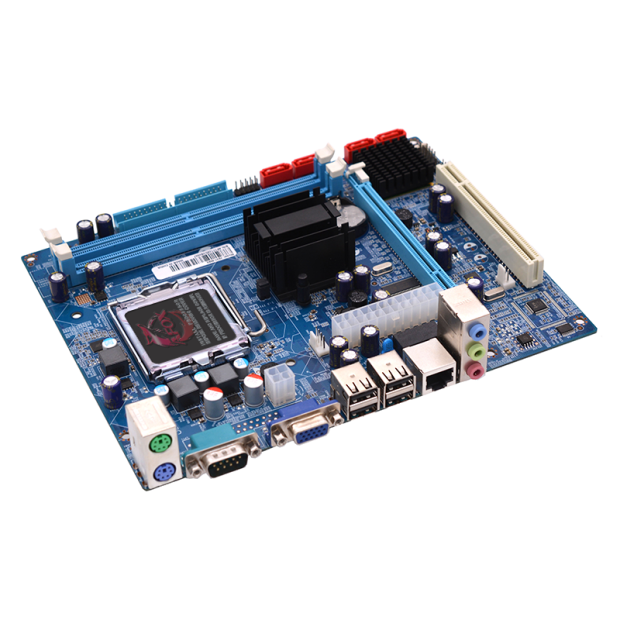

AFOX IG31-MA5
Model Name: IG31-MA5
Chipset: Intel® G31 Express Chipset + ICH7
Socket: INTEL® Socket 775
Supports Intel Core™ 2 Duo / Core™ Duo / Pentium® D / Pentium® 4 / Celeron® D Processors
Dual channel DDR2, two memory slots
800 / 1066 / 1333MHz Memory up to 4GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Competent for multiple office needs
Low power consumption but high efficiency
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►Intel® G31 Chipset
►Dual-Channel DDR2 800 / 1066 / 1333MHz Memory up to 4GB
►SATA 3Gb/s
►PCI Express Architecture
►USB 2.0
►Microsoft Windows 8 compatible
|
Platform |
Intel® Socket 775 |
|
Model Name |
IG31-MA5 |
|
Chipset |
Intel® G31 Express Chipset + ICH7 |
|
CPU Supports |
Intel® Core™ 2 Quad / Duo / Extreme / Pentium® D / Pentium® 4 / Celeron® 4 Processors |
|
FSB |
800 / 1066 / 1333MHz |
|
Memory |
Dual Channel DDR2 800 / 1066 / 1333MHz |
|
Dimm |
2 x Memory Slots (Max. capacity of system memory 4GB) |
|
Onboard Graphics |
Integrated Intel® GMA 3100 graphics |
|
PCI/PCI-E Slots |
1 x PCI Express x16 slot, 1 x PCI slot |
|
SATA |
4 x SATA2 |
|
IDE |
1 x IDE |
|
Audio |
Realtek 662 on board, Supports 6-channel audio-out |
|
LAN |
Realtek RTL8105 10/100Mbps Ethernet on board |
|
Back Panel I/Os |
1 x D-Sub (VGA) Port 1 x COM Port 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x Parallel (LPT) Port 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) |
|
ON-Board Pinheaders/Connectors |
1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x Front Panel Audio pinheader |
|
BIOS |
Supports BIOS update |
|
Form Factor |
Micro-ATX (17 x 21 cm) |
|
Mounting |
6 mounting holes |
|
Accessories |
1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
