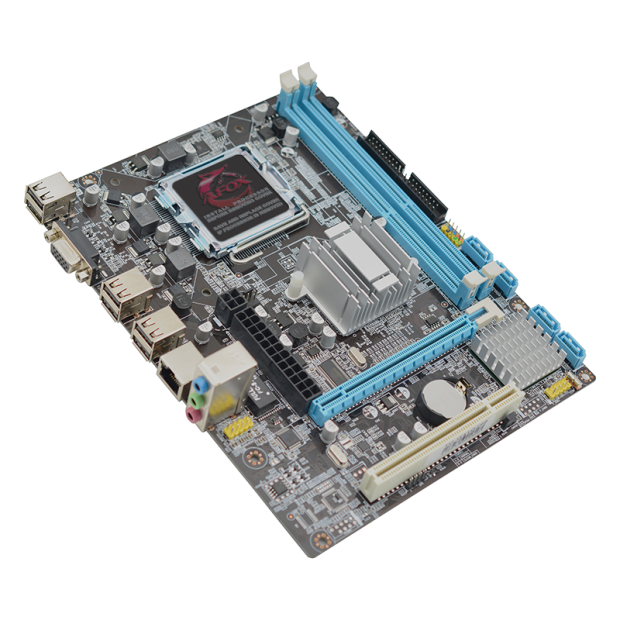

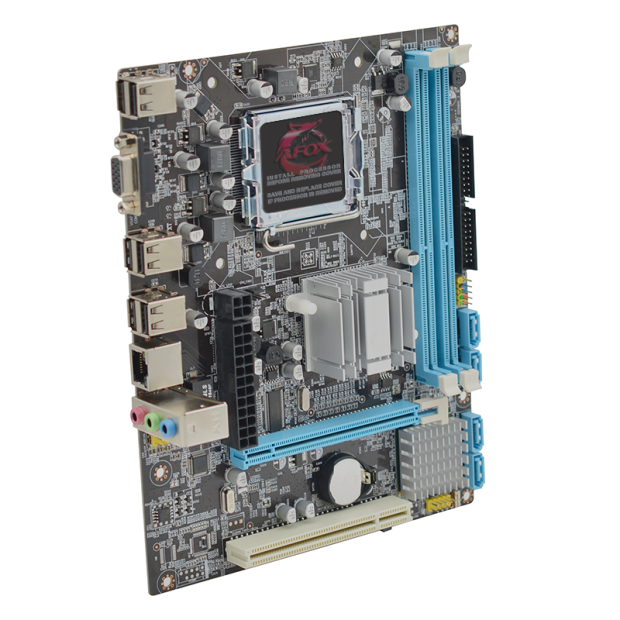

AFOX IG41-MA2
Model Name: IG41-MA2
Chipset: Intel® G41 Express Chipset + ICH7
Socket: INTEL® Socket 775
Supports Intel Core™ 2 Duo / Core™ Duo / Pentium® D / Pentium® 4 / Celeron® D Processors
Dual channel DDR3, two memory slots
1066 / 1333 / 1600MHz Memory up to 8GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Competent for multiple office needs
Low power consumption but high efficiency
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►Intel® Core™2 Quad / Core™2 Duo CPU support
►Intel® G41 Chipset
►Dual-Channel DDR3 1600 / 1066 / 1333MHz Memory up to 8GB
►SATA 3Gb/s
►PCI Express Architecture
►USB 2.0
►Microsoft Windows 8 compatible
Platform |
Intel® Socket 775 |
Model Name |
IG41-MA2 |
Chipset |
Intel® G41 Express Chipset + ICH7 |
CPU Supports |
Intel Core™ 2 Duo / Core™ Duo / Pentium® D / Pentium® 4 / Celeron® D Processors |
FSB |
1066 / 1333 / 1600MHz |
Memory |
Dual Channel DDR3 1066 / 1333 / 1600MHz |
Dimm |
2 x Memory Slots (Max. capacity of system memory 8GB) Actual capacity depends on different CPU installation |
Onboard Graphics |
Integrated Intel® GMA X4500 graphics |
PCI/PCI-E Slots |
1 x PCI Express x16 slot, 1 x PCI slot |
SATA |
4 x SATA2 |
IDE |
1 x IDE |
Audio |
Realtek 662 on board, Supports 6-channel audio-out |
LAN |
Realtek RTL8105 10/100Mbps Ethernet on board |
Back Panel I/Os |
1 x D-Sub (VGA) 6 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) |
ON-Board Pinheaders/Connectors |
1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) |
BIOS |
Supports BIOS update |
Form Factor |
Micro-ATX (17 x 21 cm) |
Mounting |
6 mounting holes |
Accessories |
1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
