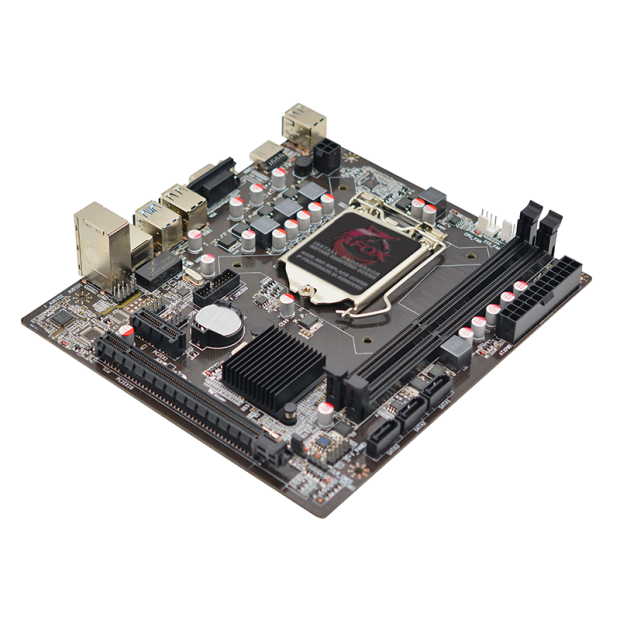

AFOX IH61-MA5-V3

Model Name: IH61-MA5-V3
Chipset: Intel® H61
Socket:INTEL® Socket 1155
Supports Intel Core™  i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors (CPU up to 95 watts)
Dual channel DDR3, two memory slots
1066 / 1333 / 1600MHz Memory up to 16GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Excellent in multitasking,a wise choice for gaming players
Stable power supply,smooth game performance


HD Gallery


  • DESCRIPTION
  • SPECIFICATION
  • BIOS / DRIVERS UPDATE
  • REQUIREMENT

►Intel® H61 Express Chipset

►Dual-Channel DDR3 1066 / 1333 / 1600MHz Memory up to 16GB

►SATA 3Gb/s

►PCI Express Architecture

►USB 2.0

►Microsoft Windows 8 compatible

Platform

INTEL® Socket 1155

Model Name

IH61-MA5-V3

Chipset

Intel® H61

CPU Supports

Intel Core™  i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors

FSB

1066 / 1333 / 1600MHz

Memory

Dual Channel DDR3 1066 / 1333 / 1600MHz

Dimm

2 x Memory Slots (Max. capacity of system memory 16GB)

Onboard Graphics

Integrated Graphics Processor

PCI/PCI-E Slots

1 x PCI Express x16 slot
1 x PCI Express x1 slot

SATA

3 x SATA2

IDE

N/A

Audio

Realtek 662 on board, Supports 6-channel audio-out

LAN

Realtek RTL8105/8106 10/100Mbps Ethernet on board

Back Panel I/Os

1 x HDMI Port
1 x D-Sub (VGA) Port
6 x USB 2.0 Ports
1 x RJ-45 LAN Port
3 x HD Audio Jacks (Line in / Front Speaker / Microphone)

ON-Board Pinheaders/Connectors

1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x USB 3.0 pinheader (supports additional 2 USB 2.0s)
1 x Front Panel Audio pinheader

BIOS

UEFI BIOS

Form Factor

Micro-ATX (17*19cm)

Mounting

4 mounting holes

Accessories

1 x SATA II cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD
