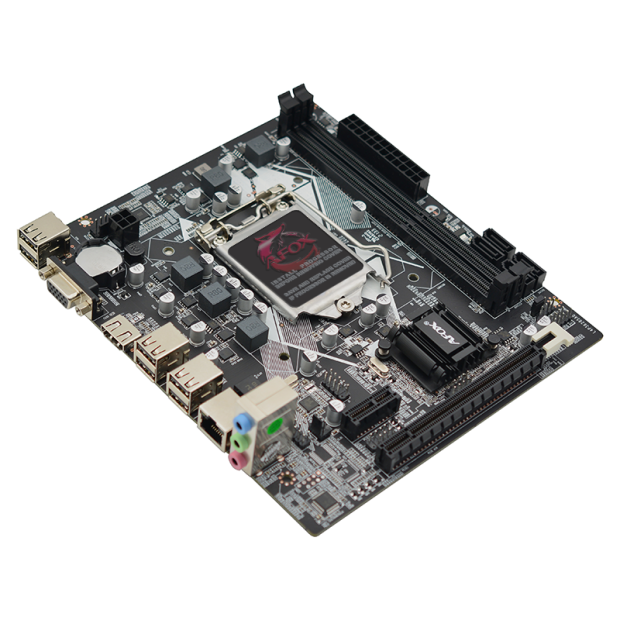

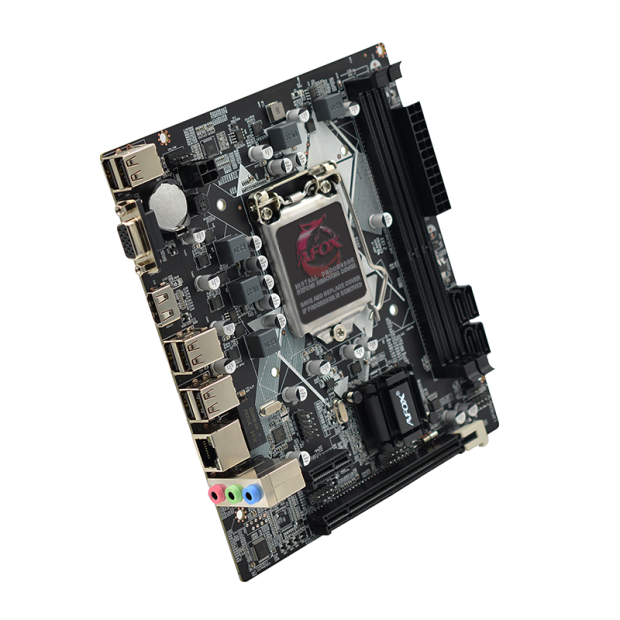

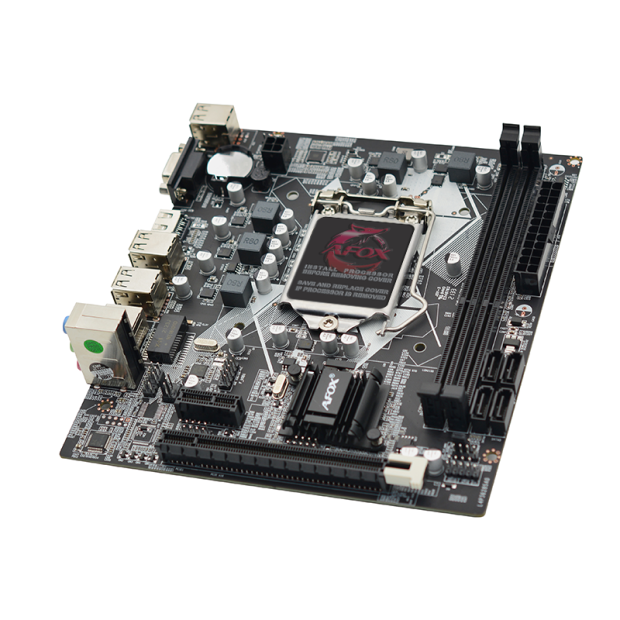

AFOX IB75-MA5
Model Name: IB75-MA5
Chipset: Intel® B75
Socket:INTEL® Socket 1155
Supports Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors
Dual channel DDR3, two memory slots
1066 / 1333 / 1600MHz Memory up to 16GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Excellent in multitasking，a wise choice for gaming players
Stable power supply，smooth game performance
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►Intel® B75 Express Chipset
►Dual-Channel DDR3 1066 / 1333 / 1600MHz Memory up to 16GB
►SATA 6Gb/s
►PCI Express Architecture
►USB 2.0
►Microsoft Windows 8 compatible
|
Platform |
INTEL® Socket 1155 |
|
Model Name |
IB75-MA5 |
|
Chipset |
Intel® B75 |
|
CPU Supports |
Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors |
|
FSB |
1066 / 1333 / 1600MHz |
|
Memory |
Dual Channel DDR3 1066 / 1333 / 1600MHz |
|
Dimm |
2 x Memory Slots (Max. capacity of system memory 16GB) |
|
Onboard Graphics |
Integrated Graphics Processor |
|
PCI/PCI-E Slots |
1 x PCI Express x16 3.0 slot |
|
SATA |
1 x SATA3, 3 x SATA2 |
|
IDE |
N/A |
|
Audio |
Realtek 662 on board, Supports 6-channel audio-out |
|
LAN |
Realtek RTL8105/8106 10/100Mbps Ethernet on board |
|
Back Panel I/Os |
1 x HDMI Port 1 x D-Sub (VGA) Port 2 x USB 3.0 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) |
|
ON-Board Pinheaders/Connectors |
1 x USB 2.0 pinheader (supports additional 2 USB 2.0s), 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader |
|
BIOS |
UEFI BIOS |
|
Form Factor |
Micro-ATX (17*19cm) |
|
Mounting |
4 mounting holes |
|
Accessories |
1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
