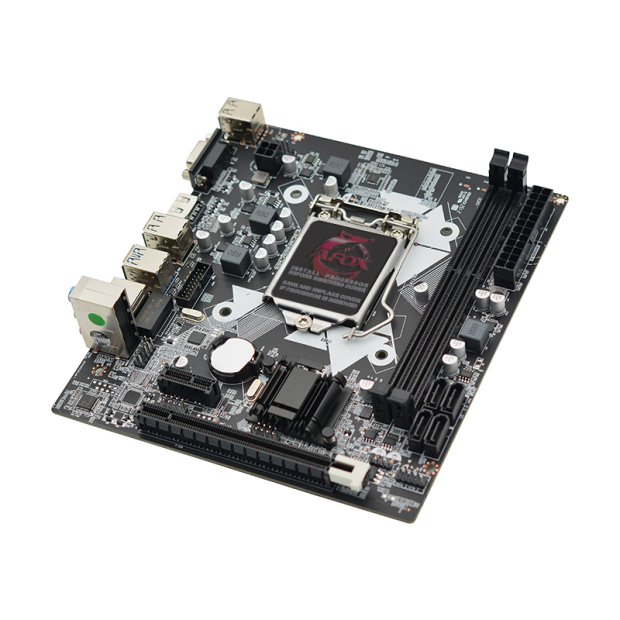

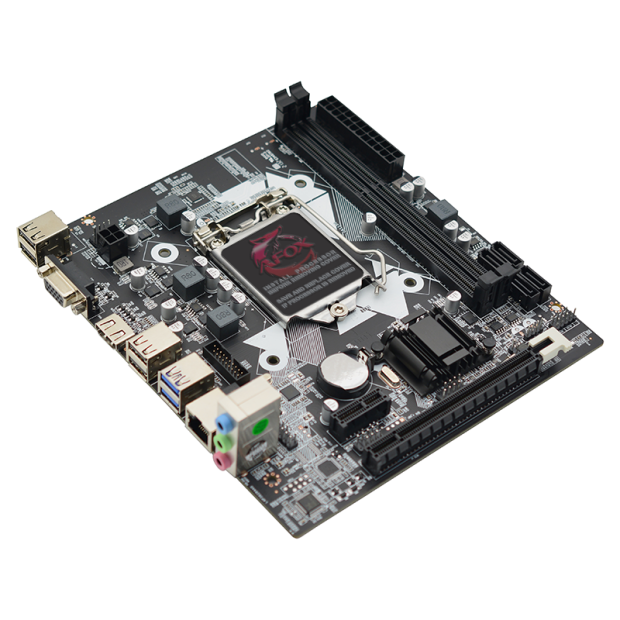

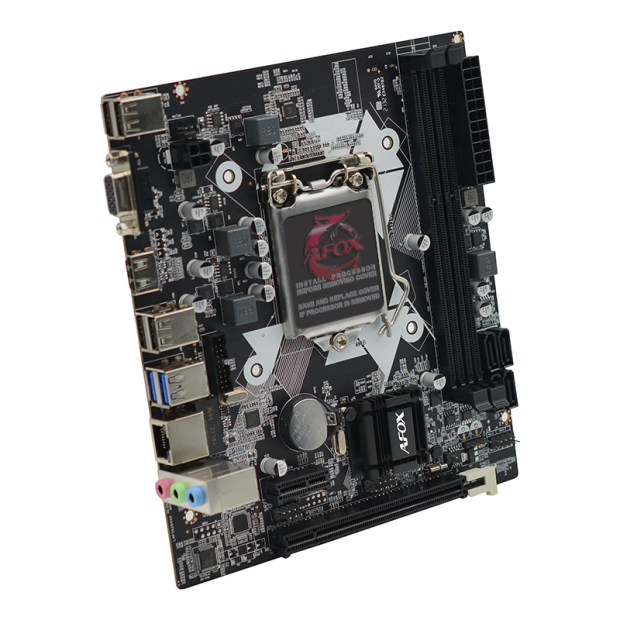

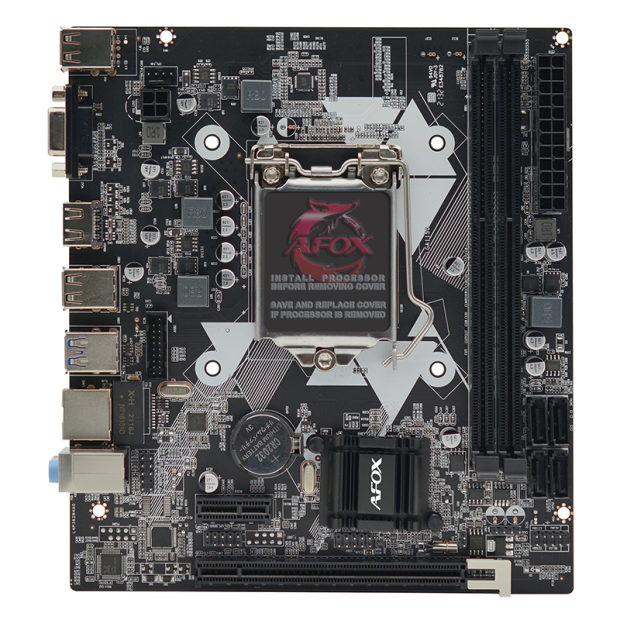

AFOX IH81-MA2-V2

Model Name: IH81-MA2-V2
Chipset: Intel® H81
Socket: INTEL Socket 1150
Supports Intel 4th generation Core™ i7 / Core™ i5 / Core™ i3 /  Pentium® / Celeron® / Xeon® Processors (CPU up to 95 watts)
Dual channel DDR3, two memory slots
1066 / 1333 / 1600 / 1860MHz Memory up to 16GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Design of Gigabit high-speed network card
Rapid transmission is always ready
Rambling mainstream game world
Wonderful design rendering effect
Satisfy all your computing demands


  • DESCRIPTION
  • SPECIFICATION
  • BIOS / DRIVERS UPDATE
  • REQUIREMENT

►LGA1150 socket for Intel® 4th Generation Core™i7/ Core™i5/Core™i3 Processors

►Intel® H81 Express Chipset

►Dual-Channel DDR3 1066 / 1333 / 1600 / 1860MHz Memory up to 16GB

►SATA 6Gb/s

►Gigabit LAN

►PCI Express Architecture

►USB 3.0

►Microsoft Windows 8 compatible

Platform

INTEL Socket 1150

Model Name

IH81-MA2

Chipset

Intel® H81

CPU Supports

Intel 4th generation Core™ i7 / Core™ i5 / Core™ i3 /  Pentium® / Celeron® / Xeon® Processors (CPU up to 95 watts)

FSB

1066 / 1333 / 1600 / 1860MHz

Memory

Dual Channel DDR3 1066 / 1333 / 1600 / 1860MHz

Dimm

2 x Memory Slots (Max. capacity of system memory 16GB)

Onboard Graphics

Integrated Graphics Processor

PCI/PCI-E Slots

1 x PCI Express x16 3.0 slot, 1 x PCI Express x1 slot

SATA

2 x SATA3, 2 x SATA2

IDE

N/A

Audio

Realtek 662 on board, Supports 6-channel audio-out

LAN

Realtek RTL8111 1000Mbps Ethernet on board

Back Panel I/Os

1 x HDMI Port
1 x D-Sub (VGA) Port
2 x USB 3.0 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port with LED
3 x HD Audio Jacks (Line in / Front Speaker / Microphone)

ON-Board Pinheaders/Connectors

1 x USB 2.0 pinheader (supports additional 2 USB 2.0s), 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
1 x Front Panel Audio pinheader

BIOS

UEFI BIOS

Form Factor

Micro-ATX (17*19cm)

Mounting

4 mounting holes

Accessories

1 x SATA II cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD
