AFOX IH110D4-MA4-V2

Model Name: IH110D4-MA4-V2
Chipset: Intel® H110
Socket:INTEL Socket 1151
Supports Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® processors
Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts)
Dual channel DDR4 slots

2133MHz Memory up to 32GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Design of Gigabit high-speed network card
Excellent in multitasking,a wise choice for gaming players
Excellent compatibility
Stable power supply,smooth game performance

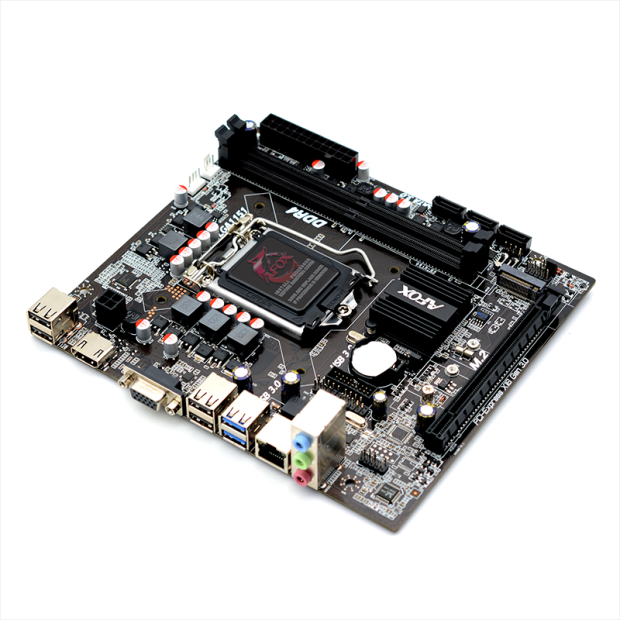

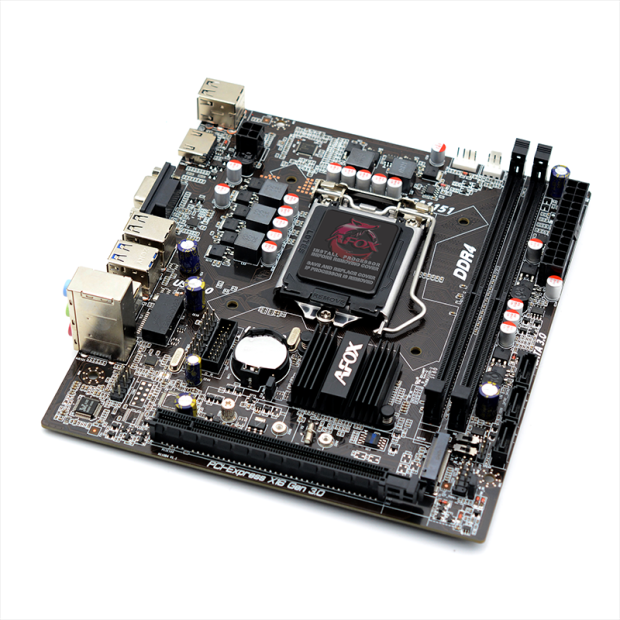

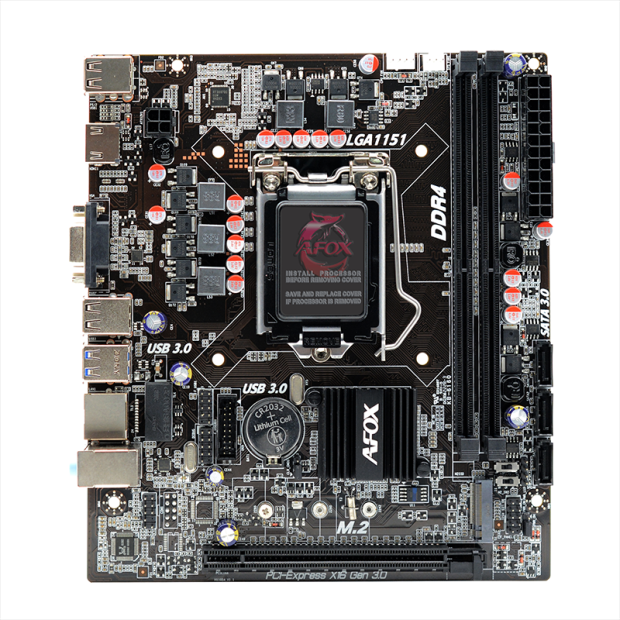

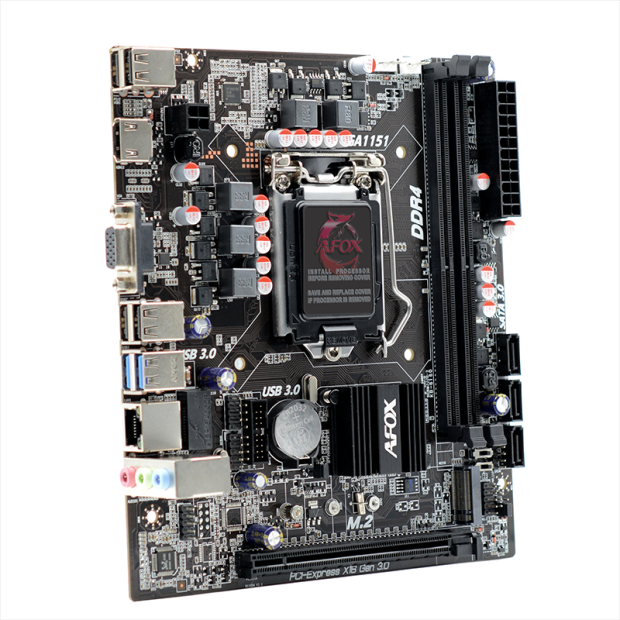

HD Gallery

  • DESCRIPTION
  • SPECIFICATION
  • BIOS / DRIVERS UPDATE
  • REQUIREMENT

►Intel® Socket 1151 for 6/7/8/9th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

►Intel® H110 Express Chipset

►Dual-Channel DDR4 2133MHz Memory up to 32GB

►SATA 6Gb/s

►PCI Express Architecture

►USB 3.0

►Microsoft Windows 8 compatible

Platform

INTEL Socket 1151

Model Name

IH110D4-MA4-V2

Chipset

Intel® H110

CPU Supports

Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors
Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts)

FSB

2133MHz

Memory

Dual Channel DDR4 2133MHz

Dimm

2 x Memory Slots (Max. capacity of system memory 32GB)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support

PCI/PCI-E Slots

1 x PCI Express x16 3.0 slot

SATA

3 x SATA3
1 x M.2 (PCIe NVMe Gen3 x4 & SATA3)

IDE

N/A

Audio

Realtek 662 on board, Supports 6-channel audio-out

LAN

Realtek RTL8111 1000Mbps Ethernet on board

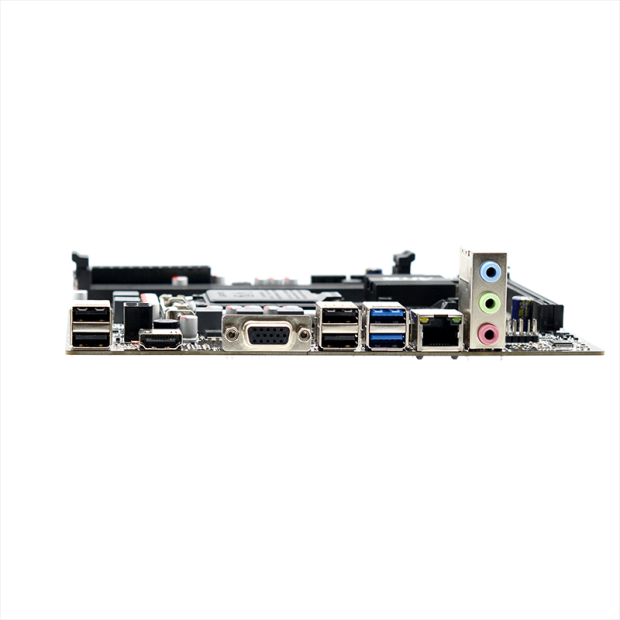

Back Panel I/Os

1 x HDMI Port
1 x D-Sub (VGA) Port
2 x USB 3.0 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port with LED
3 x HD Audio Jacks (Line in / Front Speaker / Microphone)

ON-Board Pinheaders/Connectors

1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
1 x Front Panel Audio pinheader
1 x LPC DEBUG
1 x Com

BIOS

UEFI BIOS

Form Factor

Micro-ATX (17*19cm)

Mounting

4 mounting holes

Accessories

1 x SATA II cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD
