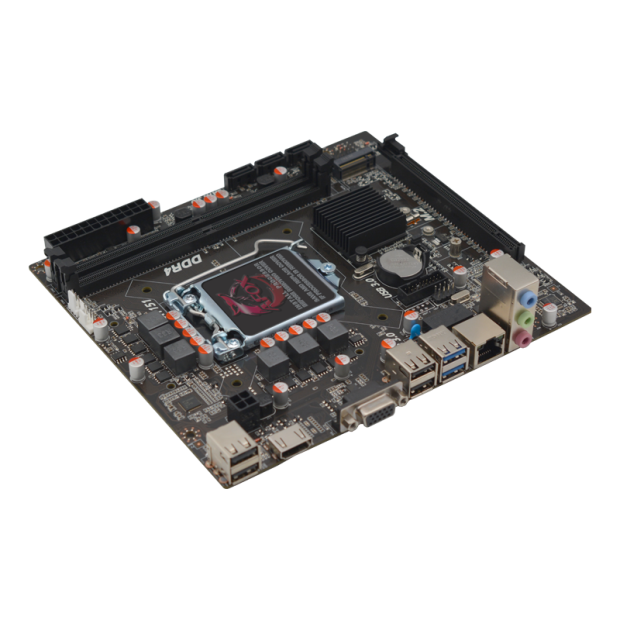

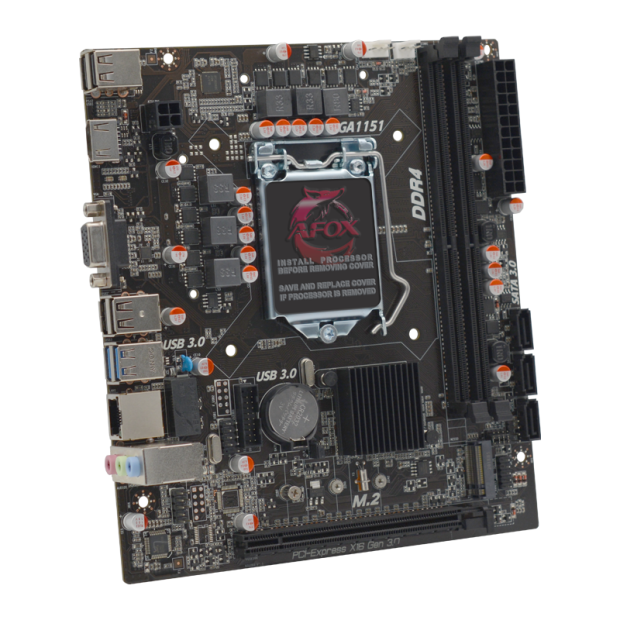

AFOX IH310C-MA6

Model Name: IH310C-MA6
Chipset: Intel® H310C
Socket: INTEL Socket 1151
Supports Intel Core™ i7 / Core™ i5 / Core™ i3 Processors
Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts)
Dual channel DDR4, two memory slots
2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz Memory up to 64GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Greater  capacity
Rapid transmission is always ready
Rambling mainstream game world
Wonderful design rendering effect
Satisfy all your computing demands


  • DESCRIPTION
  • SPECIFICATION
  • BIOS / DRIVERS UPDATE
  • REQUIREMENT

►Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors

►Intel® H310 Express Chipset

►Dual-Channel 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz support

►SATA 6Gb/s


►PCI Express Architecture

►USB 3.0

►Microsoft Windows 8 compatible

Platform

INTEL Socket 1151

Model Name

IH310C-MA6

Chipset

Intel® 310C

CPU Supports

Intel Core™ i7 / Core™ i5 / Core™ i3 Processors
Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts)

FSB

2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz

Memory

Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz

Dimm

2 x Memory Slots (Max. capacity of system memory 64GB)

Onboard Graphics

Intel® HD Graphics

PCI/PCI-E Slots

1 x PCI Express x16 3.0 slot

SATA

3 x SATA3, 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3)

IDE

N/A

Audio

Realtek 662 on board, Supports 6-channel audio-out

LAN

Realtek RTL8105/8106 10/100Mbps Ethernet on board

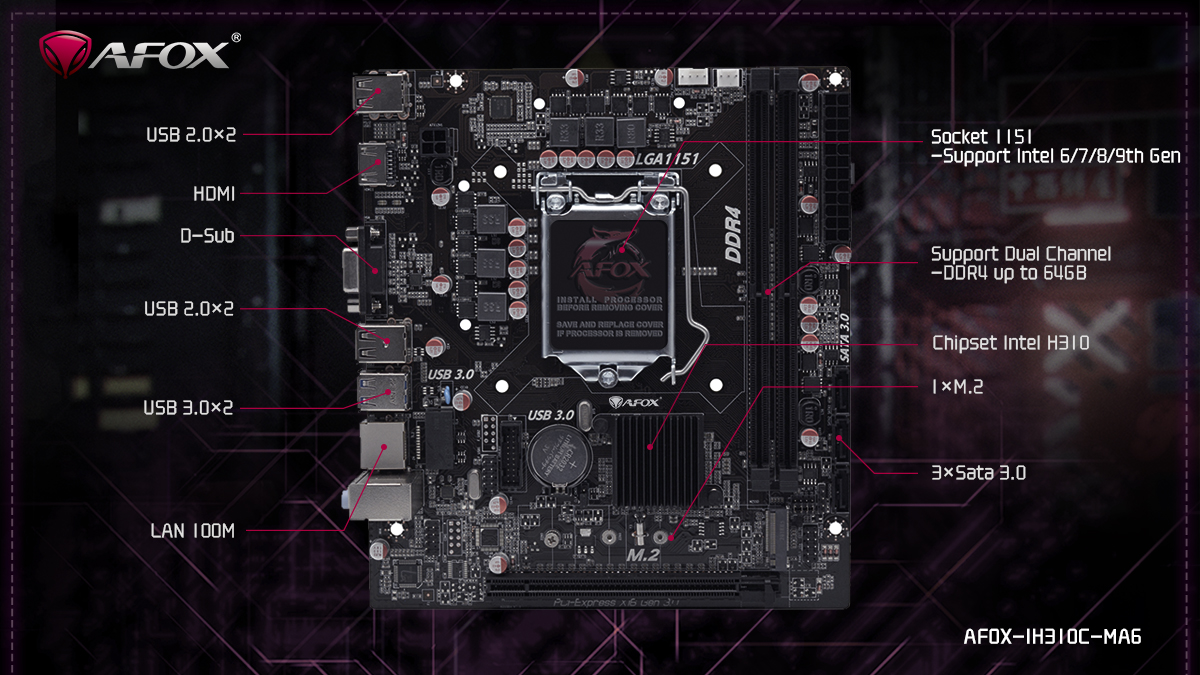

Back Panel I/Os

1 x HDMI Port
1 x D-Sub (VGA) Port
2 x USB 3.0 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port with LED
3 x HD Audio Jacks (Line in / Front Speaker / Microphone)

ON-Board Pinheaders/Connectors

1 x USB 2.0 pinheader (supports additional 2 USB 2.0s), 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
1 x Front Panel Audio pinheader
1 x com
1 x DEBUG1

BIOS

UEFI BIOS

Form Factor

Micro-ATX (17 ×19cm)

Mounting

4 mounting holes

Accessories

1 x SATA II cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD
