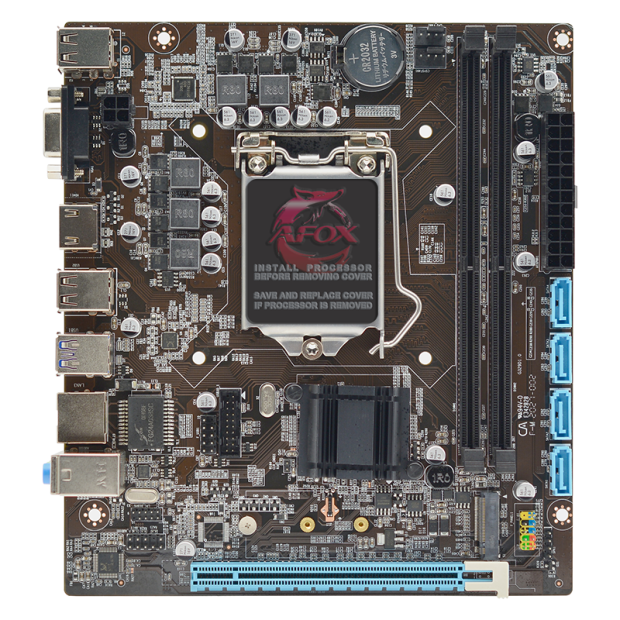

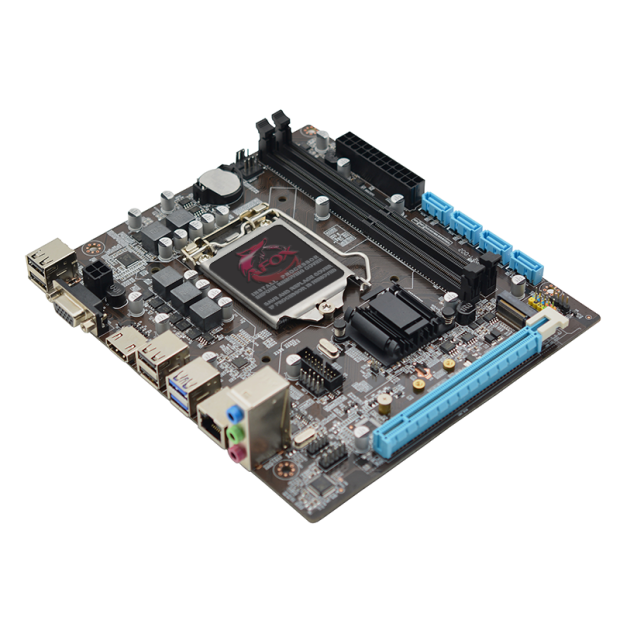

AFOX IH110D4-MA2
Model Name: IH110-MA2
Chipset: Intel® H110
Socket:INTEL Socket 1151
Supports Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors
Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts)
Dual channel DDR4, two memory slots
2133 / 2400 / 2666MHz Memory up to 64GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Excellent in multitasking,a wise choice for gaming players
Excellent compatibility
Greater capacity
Outstanding performance
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►Intel® H110 Express Chipset
►Dual-Channel DDR4 2133 / 2400 / 2666MHz support
►SATA 6Gb/s
►PCI Express Architecture
►USB 3.0
►Microsoft Windows 8 compatible
Platform |
INTEL Socket 1151 |
Model Name |
IH110D4-MA2 |
Chipset |
Intel® H110 |
CPU Supports |
Intel Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors Supports Intel 6th, 7th, 8th and 9th Generation (CPU up to 95 watts) |
FSB |
2133 / 2400 / 2666MHz |
Memory |
Dual Channel DDR4 2133 / 2400 / 2666MHz |
Dimm |
2 x Memory Slots (Max. capacity of system memory 16GB) |
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support |
PCI/PCI-E Slots |
1 x PCI Express x16 3.0 slot |
SATA |
4 x SATA3, 1 x M.2 (PCIe NVMe Gen3 x4 ) |
IDE |
N/A |
Audio |
Realtek 662 on board, Supports 6-channel audio-out |
LAN |
Realtek RTL8105/8106 10/100Mbps Ethernet on board |
Back Panel I/Os |
1 x HDMI Port 1 x D-Sub (VGA) Port 2 x USB 3.0 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port with LED 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) |
ON-Board Pinheaders/Connectors |
1 x USB 2.0 pinheader (supports additional 2 USB 2.0s), 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader 1 x LPC DEBUG |
BIOS |
UEFI BIOS |
Form Factor |
Micro-ATX (17*19cm) |
Mounting |
4 mounting holes |
Accessories |
1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
