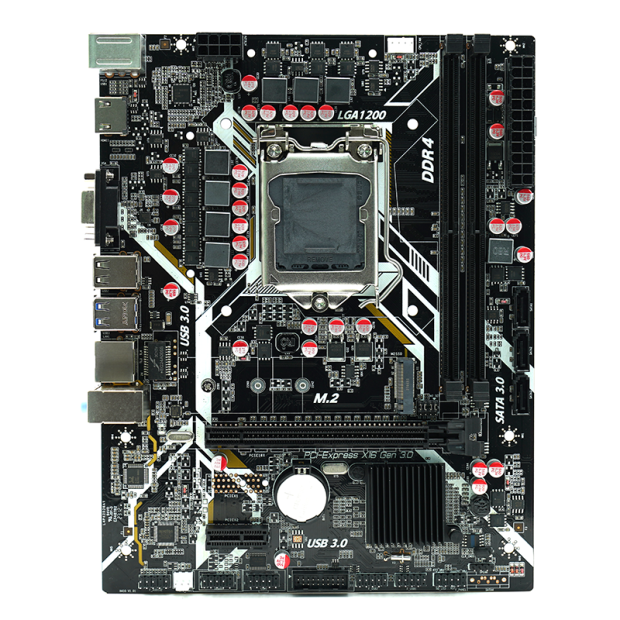

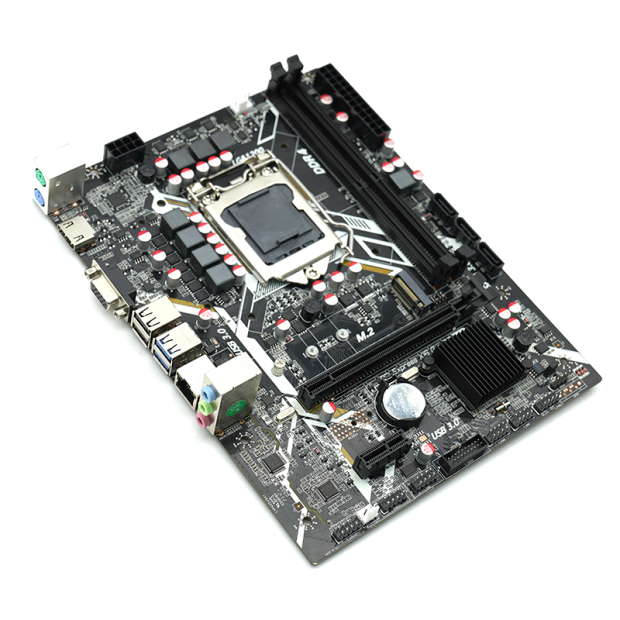

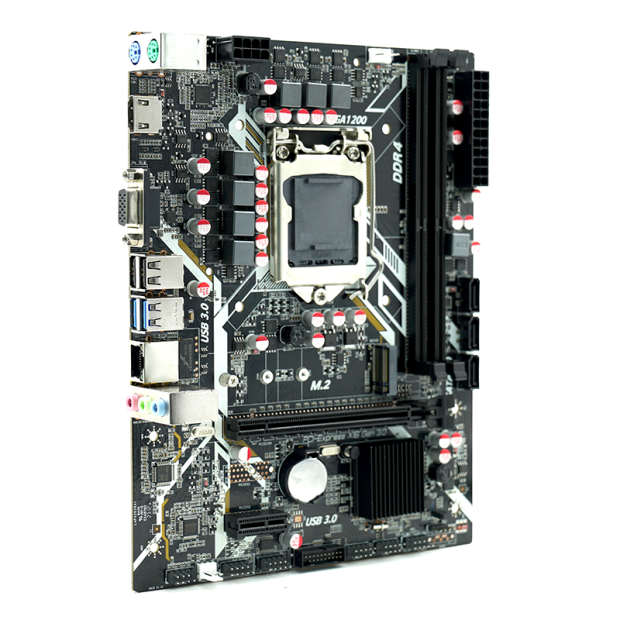

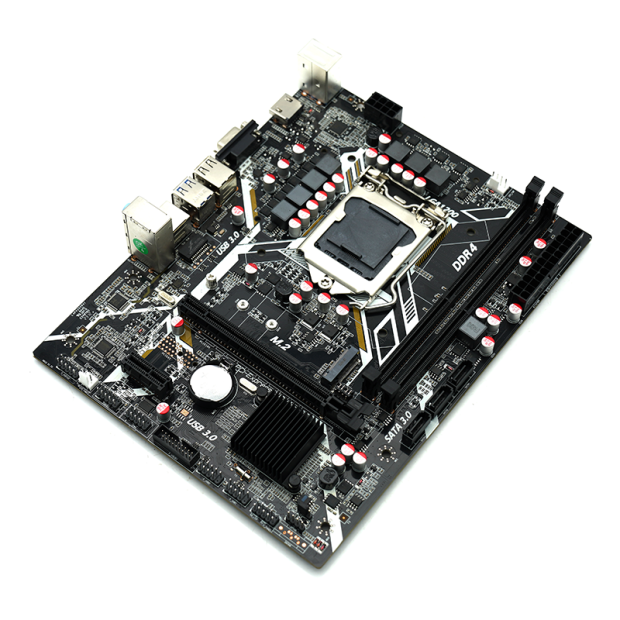

AFOX IH410D4-MA5-V2
Model Name: IH410D4-MA5-V2
Chipset: Intel® H410
Socket: INTEL Socket 1200
Supports Intel Core™ i3 / Core™ i5 / Core™ i7 / Core™ i9 Processors
Supports Intel 10th Generation
Dual channel DDR4, two memory slots
2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz Memory up to 64GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Design of Gigabit high-speed network card
Rapid transmission is always ready
Rambling mainstream game world
Wonderful design rendering effect
Satisfy all your computing demands
HD Gallery
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►Intel® H410 Express Chipset
►Dual-Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz support
►SATA 6Gb/s
►PCI Express Architecture
►USB 3.0
►Microsoft Windows 8 compatible
Platform |
INTEL Socket 1200 |
Model Name |
IH410D4-MA5-V2 |
Chipset |
Intel® 410 |
CPU Supports |
Intel Core™ i3 / Core™ i5 / Core™ i7 / Core™ i9 Processors, Supports Intel 10th Generation |
FSB |
2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz |
Memory |
Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz |
Dimm |
2 x Memory Slots (Max. capacity of system memory 64GB) |
Onboard Graphics |
Intel® HD Graphics |
PCI/PCI-E Slots |
1 x PCI Express x16 3.0 slot, 1 x PCI Express x1 slot |
SATA |
3 x SATA3 1 x M.2 ( 1 x PCIe NVMe Gen3 x4 & SATA3 ) |
IDE |
N/A |
Audio |
Realtek 662/897 on board, Supports 6-channel audio-out |
LAN |
Realtek RTL8111 Gigabit Ethernet on board Wake-On-LAN |
Back Panel I/Os |
1 x HDMI Port 1 x D-Sub (VGA) Port 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 2 x USB 3.0 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port with LED 3 x HD Audio Jack (Line in / Front Speaker / Microphone) |
ON-Board Pinheaders/Connectors |
2 x USB 2.0 pinheader (supports additional 4 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader, 1 x DEBUG1 1 x Com |
BIOS |
UEFI BIOS |
Form Factor |
Micro-ATX (17.5*22.5cm) |
Mounting |
6 mounting holes |
Accessories |
1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
