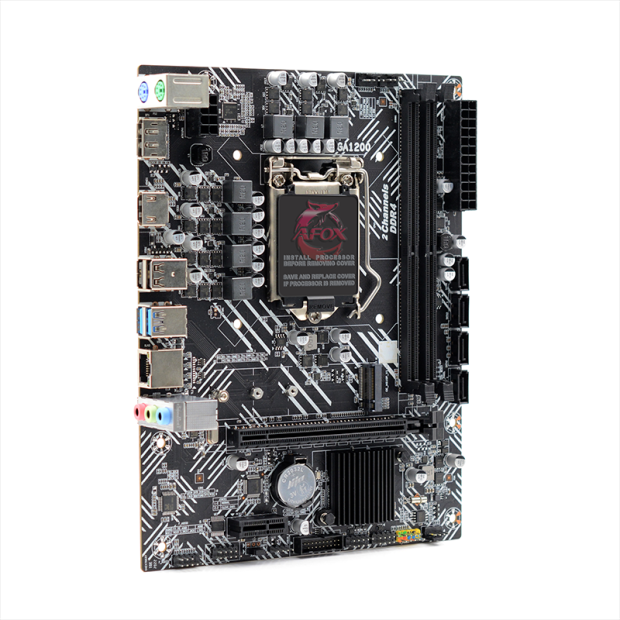

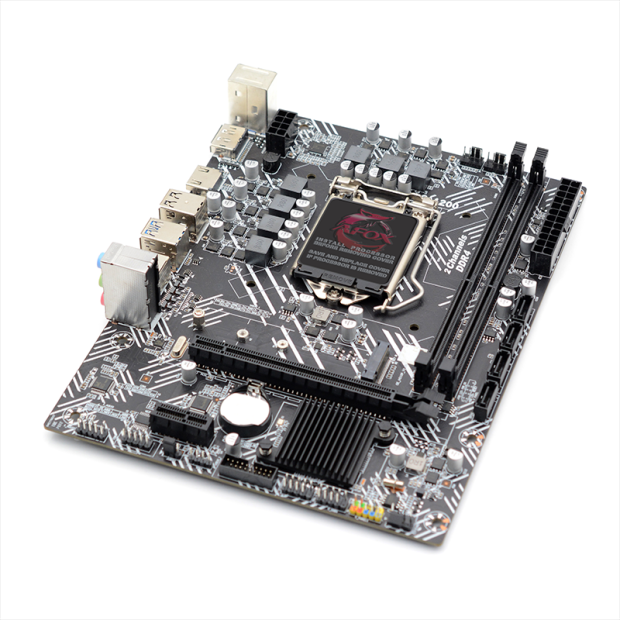

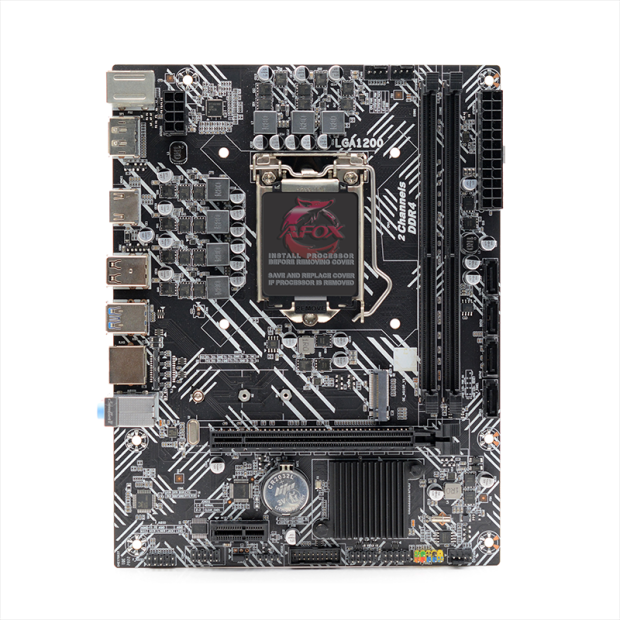

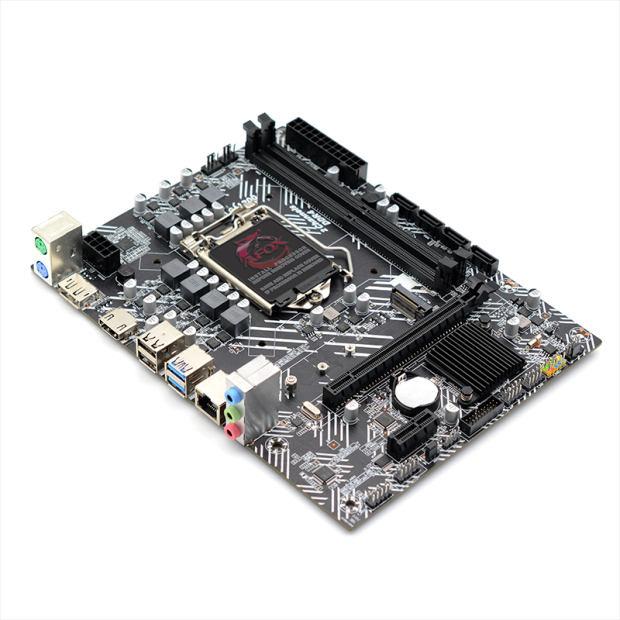

AFOX IH510D4-MA
Model Name: IH510D4-MA
Chipset: Intel® H510
Socket: INTEL Socket 1200
Supports Intel Core™ i3 / Core™ i5 / Core™ i7 / Core™ i9 Processors
Supports Intel 10th /11th Generation (CPU up to 125 watts)
Dual channel DDR4 memory
2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz Memory up to 64GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Rapid transmission is always ready
Rambling mainstream game world
Wonderful design rendering effect
Satisfy all your computing demands
HD Gallery
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►Intel® H510 Express Chipset
►Dual-Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz support
►SATA 6Gb/s
►Gigabit LAN
►PCI Express Architecture
►USB 3.0
►Microsoft Windows 10/11 compatible
|
Platform |
INTEL Socket 1200 |
|
Model Name |
IH510D4-MA |
|
Chipset |
Intel® H510 |
|
CPU Supports |
Intel Core™ i3 / Core™ i5 / Core™ i7 / Core™ i9 Processors Supports Intel 10th /11th Generation (CPU up to 125 watts) |
|
FSB |
2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz |
|
Memory |
Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz 1.2V |
|
Dimm |
2 x Memory Slots (Max. capacity of system memory 64GB) |
|
Onboard Graphics |
Intel® HD Graphics |
|
PCI/PCI-E Slots |
1 x PCI Express x16 4.0 slot, 1 x PCI Express x1 slot |
|
SATA |
4 x SATA III 1 x M.2 (PCIe NVMe Gen3 x4) |
|
IDE |
N/A |
|
Audio |
Realtek 662 on board, Supports 6-channel audio-out |
|
LAN |
Realtek RTL8111 1000Mbps Ethernet on board |
|

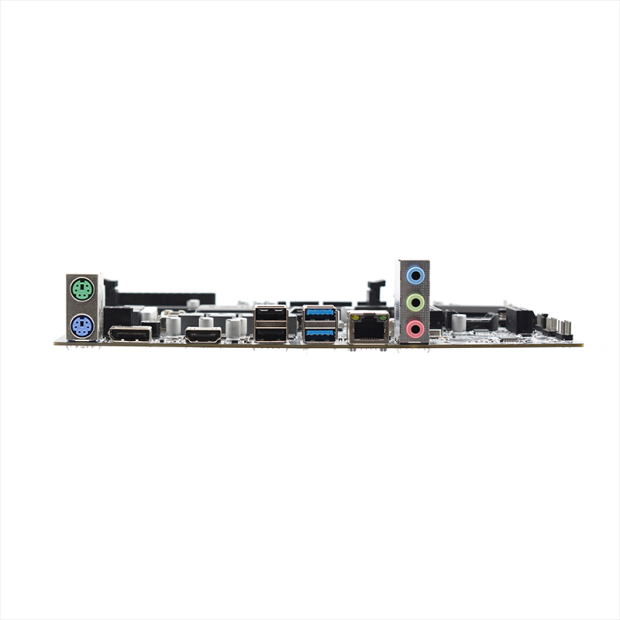

Back Panel I/Os |
1 x HDMI Port 1 X DP Port 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 2 x USB 3.0 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jacks (Line in / Front Speaker / Microphone) |
|
ON-Board Pinheaders/Connectors |
2 x USB 2.0 pinheader (supports additional 4 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader 1 x Com |
|
BIOS |
UEFI BIOS |
|
Form Factor |
Micro-ATX (17*22cm) |
|
Mounting |
6 mounting holes |
|
Accessories |
1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
