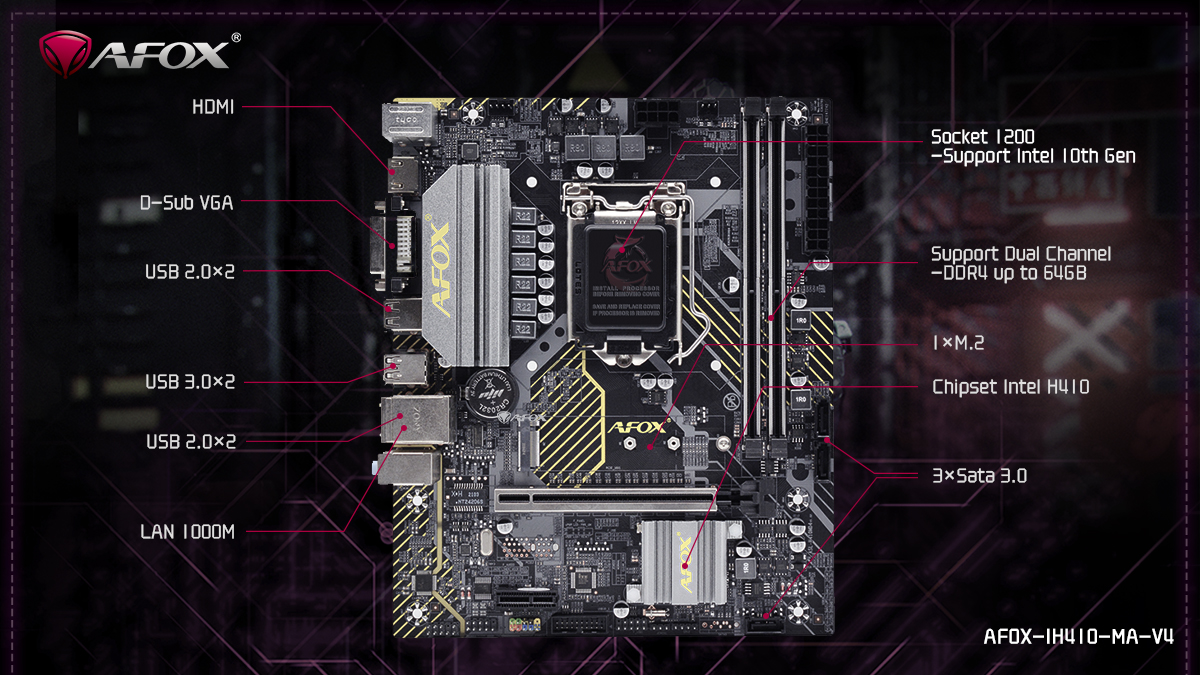

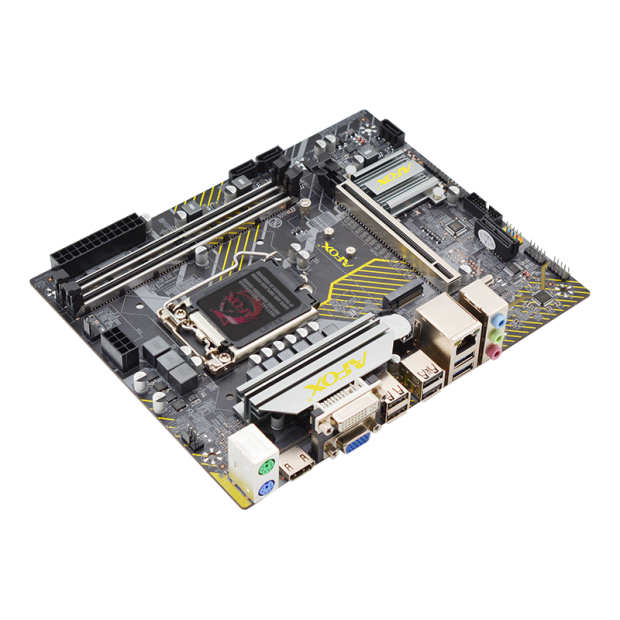

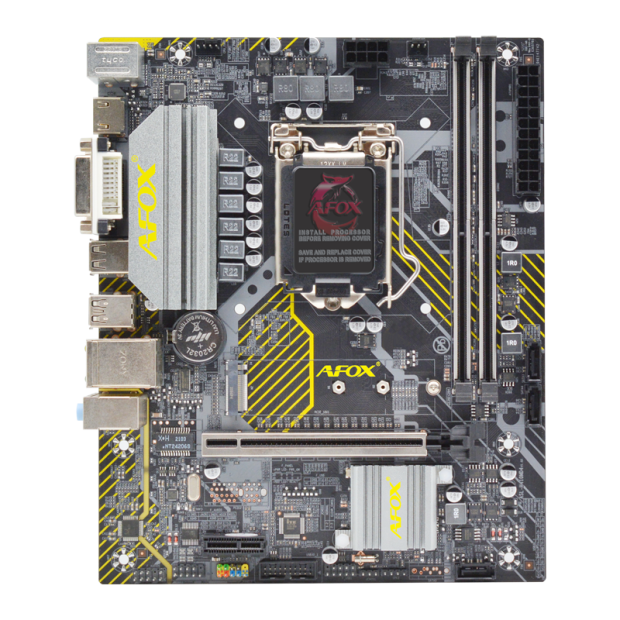

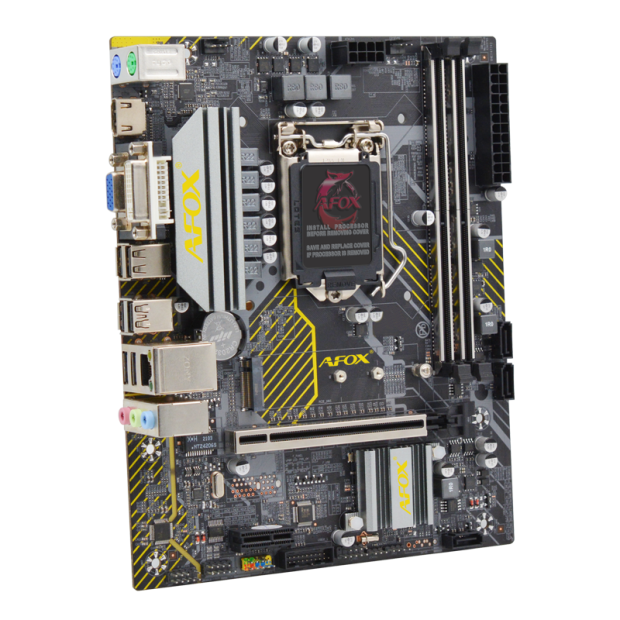

AFOX IH410-MA-V4

Model Name: IH410-MA-V4
Chipset: Intel® H410
Socket: INTEL Socket 1200
Supports Intel Core™ i3 / Core™ i5 / Core™ i7 / Core™ i9 Processors
Supports Intel 10th Generation
Dual channel DDR4, two memory slots
2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz Memory up to 64GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Design of Gigabit high-speed network card
Rapid transmission is always ready
Rambling mainstream game world
Wonderful design rendering effect
Satisfy all your computing demands

DESCRIPTION
SPECIFICATION
BIOS / DRIVERS UPDATE
REQUIREMENT

►Intel® H410 Express Chipset

►Dual-Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz support

►SATA 6Gb/s

►PCI Express Architecture

►USB 3.0

►Microsoft Windows 8 compatible

Platform	INTEL Socket 1200
Model Name	IH410-MA-V4
Chipset	Intel® 410
CPU Supports	Intel Core™ i3 / Core™ i5 / Core™ i7 / Core™ i9 Processors, Supports Intel 10th Generation
FSB	2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz
Memory	Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) MHz
Dimm	2 x Memory Slots (Max. capacity of system memory 64GB)
Onboard Graphics	Intel® HD Graphics
PCI/PCI-E Slots	1 x PCI Express x16 3.0 slot, 1 x PCI Express x1 slot
SATA	3 x SATA3.0, 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3)
IDE	N/A
Audio	Realtek 887 on board, Supports 6-channel audio-out
LAN	Realtek RTL8111 1000Mbps Ethernet on board
Back Panel I/Os	1 x HDMI Port 1 x D-Sub (VGA) Port 1 x DVI-D Port 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 2 x USB 3.0 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jacks (Line in / Front Speaker / Microphone)
ON-Board Pinheaders/Connectors	1 x USB 2.0 pinheader (supports additional 2 USB 2.0s), 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader, 1 x Com
BIOS	UEFI BIOS
Form Factor	Micro-ATX (18*22cm)
Mounting	6 mounting holes
Accessories	1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD
