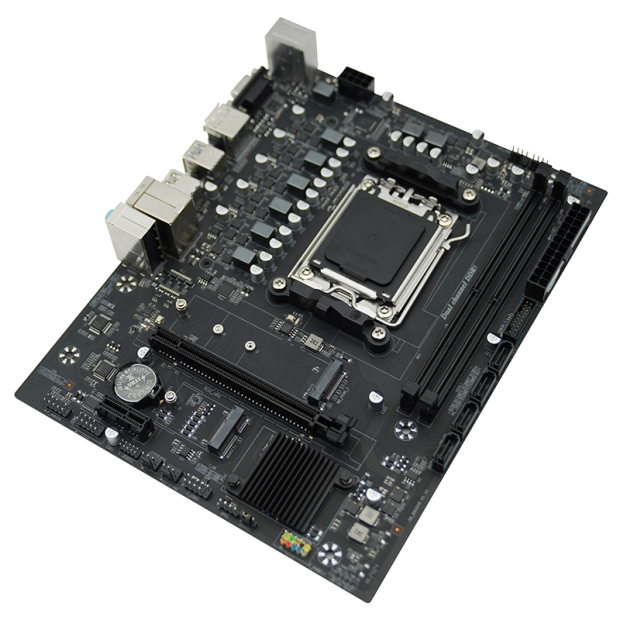

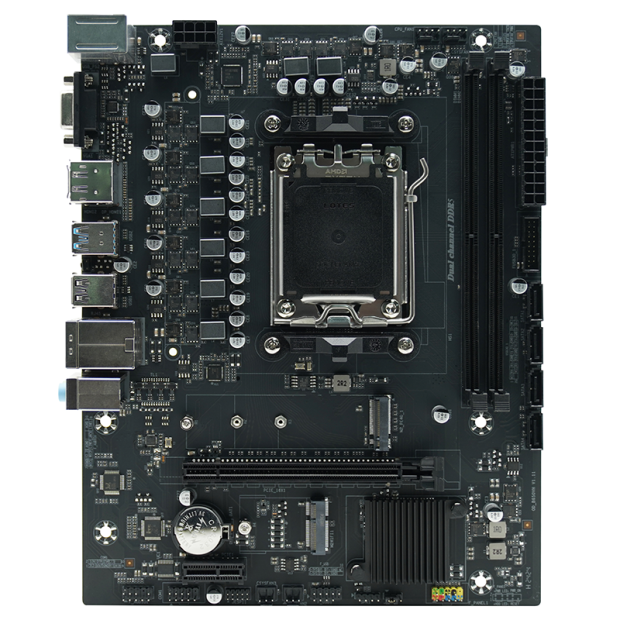

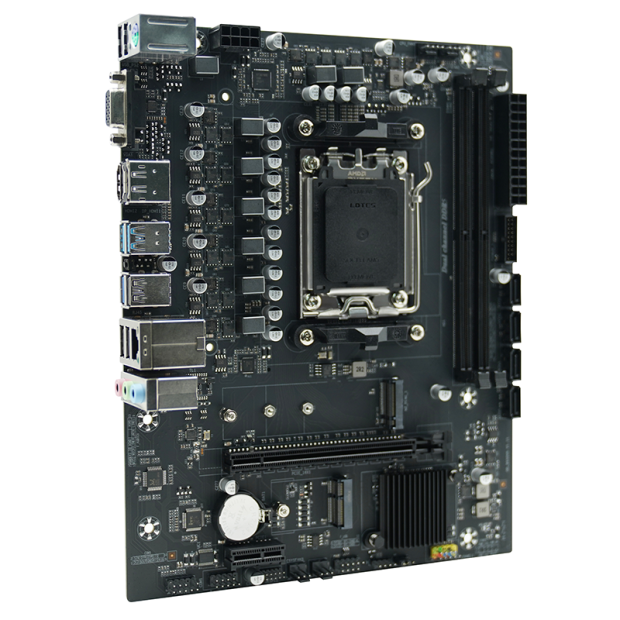

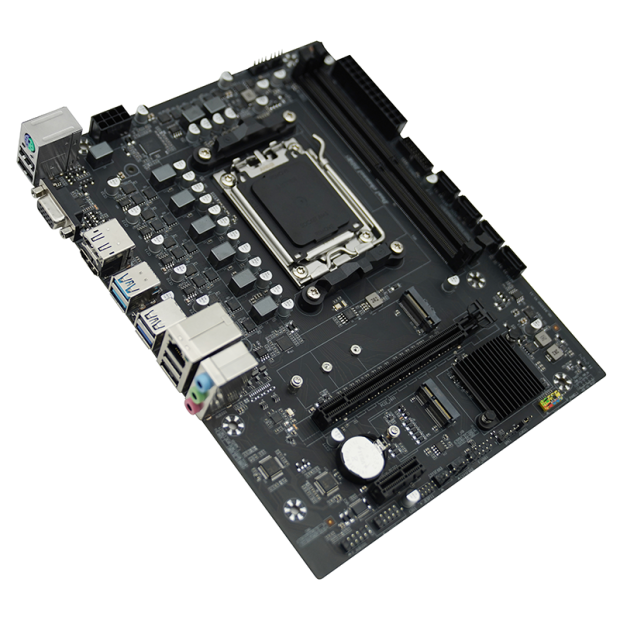

AFOX B650D5-MA-V2

Model Name: B650D5-MA-V2
Chipset: AMD® B650
Socket: AMD Socket AM5
Supports AMD Ryzen 9000 Series/ Ryzen 8000 Series and Ryzen 7000 Series processors
2 x DDR5 Memory Slots
Dual Channel DDR5 4800/ 5200/ 5600/ 6000(OC)/ 6400(OC) MHz 1.1V
High speed USB interface
High quality audio special capacitor
Design of Gigabit high-speed network card
Release long-term performance, with both stability and longevity

HD Gallery

DESCRIPTION
SPECIFICATION
BIOS / DRIVERS UPDATE
REQUIREMENT

►AMD® B650

►2 x DDR5 Memory Slots, 4800/ 5200/ 5600/ 6000(OC)/ 6400(OC) MHz Support

►SATA 6Gb/s

►Gigabit LAN

►PCI Express 3.0 Architecture

►USB 3.2 Gen 2

Platform	AMD Socket AM5
Model Name	B650D5-MA-V2
Chipset	AMD® B650
CPU Supports	Supports AMD Ryzen 9000 Series/ Ryzen 8000 Series and Ryzen 7000 Series processors
FSB	4800/ 5200/ 5600/ 6000(OC)/ 6400(OC) MHz
Memory	2 x DDR5 Memory Slots DDR5 4800/ 5200/ 5600/ 6000(OC)/ 6400(OC) MHz 1.1V
Dimm	2 x Memory Slots (Max. capacity of system memory 64GB)
Onboard Graphics	Integrated AMD Radeon™ Vega series / R Series graphics
PCI/PCI-E Slots	1 x PCI Express x16 4.0 slot 1 x PCI Express x1 slot
SATA	4 x SATA3 1 x Mini PCI-E Slot (Supports 4G/WIFI Module) 1 x M.2 (PCIe NVMe Gen4 x4 & PCIe NVMe Gen3 x4 )
IDE	N/A
Audio	Realtek 897 on board, Supports 6-channel audio-out
LAN	Realtek RTL8111 Gigabit Ethernet on board Wake-On-LAN
Back Panel I/Os	1 x HDMI Port 1 x D-Sub (VGA) Port 1 x DP Port 1 x PS/2 Mouse Port 5 x USB 2.0 Ports 3 x USB 3.2 Gen 2 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jack (Line in / Front Speaker / Microphone)
ON-Board Pinheaders/Connectors	1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x USB 3.2 Gen 2 pinheader (supports additional 2 USB 3.2 Gen 2 ) 1 x Front Panel Audio pinheader and 1 x Front Panel COM pinheader
BIOS	UEFI BIOS
Form Factor	Micro-ATX (24 x 19 cm)
Mounting	6 mounting holes
Accessories	1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD
