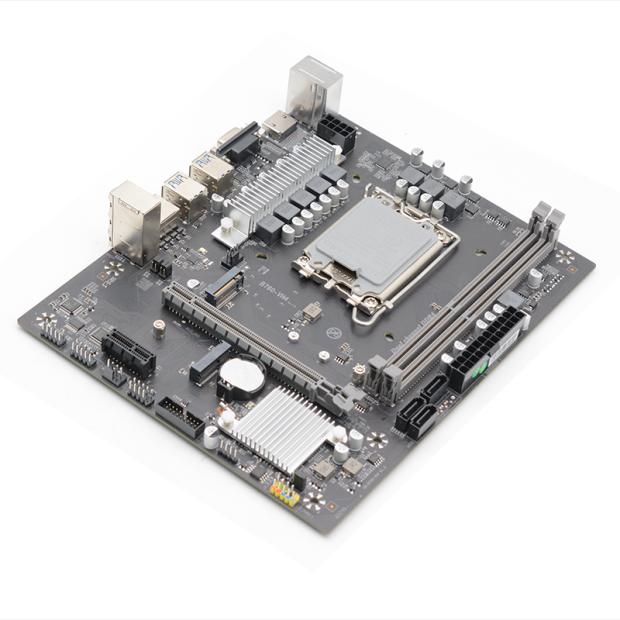

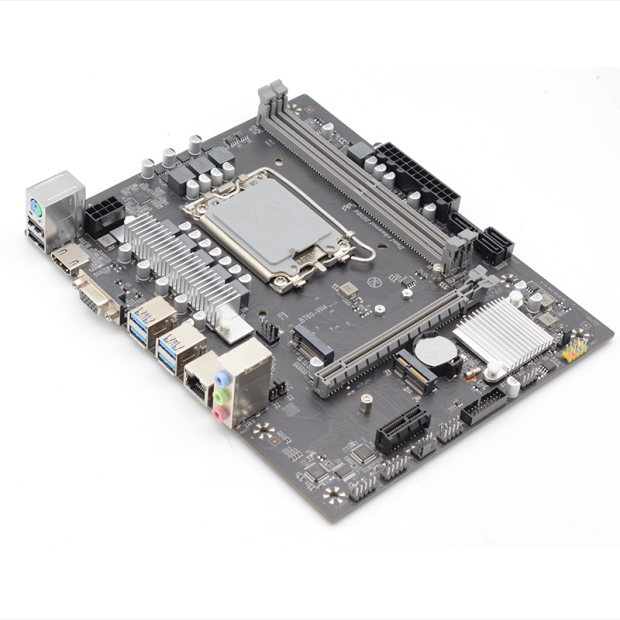

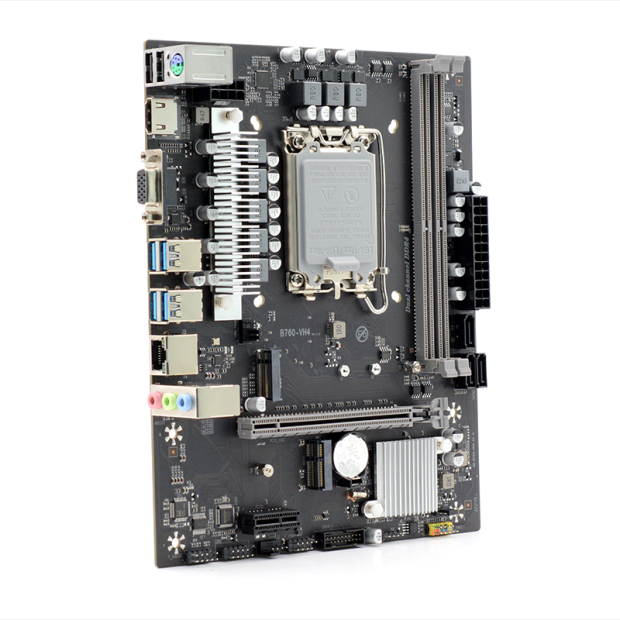

AFOX B760D4-MA-V4

Model Name: B760D4-MA-V4
Chipset: Intel® B760
Socket: INTEL Socket 1700
Supports Intel Core™ i9 / Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors
Supports Intel 12th / 13th / 14th Generation
Dual channel DDR4 memory
2133 / 2400  / 2666 / 2800(O.C) / 3000(O.C) / 3200(O.C) / 3600(O.C) MHz Memory up to 64GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Design of Gigabit high-speed network card
Rapid transmission is always ready
Rambling mainstream game world
Wonderful design rendering effect
Satisfy all your computing demands


HD Gallery

  • DESCRIPTION
  • SPECIFICATION
  • BIOS / DRIVERS UPDATE
  • REQUIREMENT

►Intel® B760 Express Chipset

►Supports 12th / 13th / 14th Generation Intel Core Processor


►Dual-Channel DDR4 2133 / 2400  / 2666 / 2800(O.C) / 3000(O.C) / 3200(O.C)/ 3600(O.C) MHz support

►Gigabit LAN

►PCI Express 4.0 Architecture

►USB 3.0

►Microsoft Windows 10/11 compatible

Platform

INTEL Socket 1700

Model Name

B760D4-MA-V4

Chipset

Intel® B760

CPU Supports

INTEL Socket 1700
Supports Intel 12th / 13th / 14th Generation
Intel Core™ i9 / Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors

FSB

2133 / 2400  / 2666 / 2800(O.C) / 3000(O.C) / 3200(O.C) / 3600(O.C)

Memory

Dual Channel DDR4 2133 / 2400  /2666 / 2800(O.C) / 3000(O.C) / 3200(O.C) / 3600(O.C) MHz  1.2V

Dimm

2 x Memory Slots (Max. capacity of system memory 64GB)

Onboard Graphics

Intel® HD Graphics

PCI/PCI-E Slots

1 x PCI Express x16 4.0 slot
1 x PCI Express x1 slot
1 x Mini PCI-E Slot (Supports 4G/WIFI Module)

SATA

3 x SATA III
1 x M.2  ( 1 x PCIe NVMe Gen4 x4 & SATA3 )

IDE

N/A

Audio

Realtek 662 /897 on board, Supports 6-channel audio-out

LAN

1000Mbps Ethernet on board

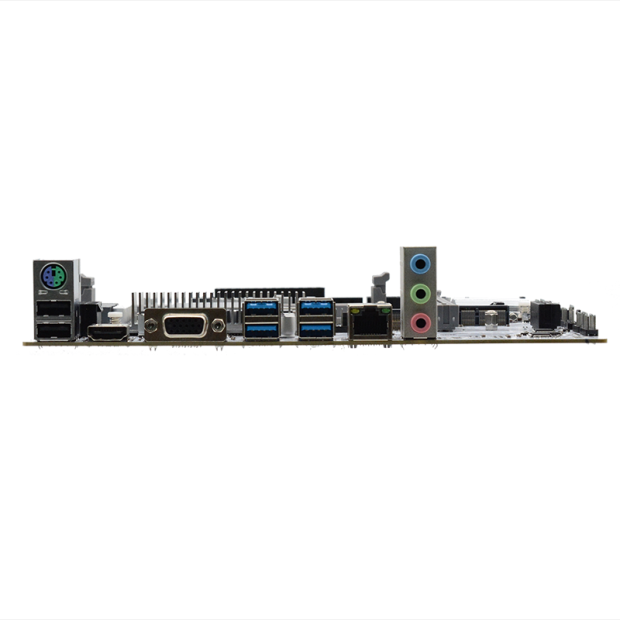

Back Panel I/Os

1 x D-Sub (VGA) Port
1 x HDMI
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
4 x USB 3.0 Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
3 x HD Audio Jack (Line in / Front Speaker / Microphone)

ON-Board Pinheaders/Connectors

1 x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
1 x Front Panel Audio pinheader
1 x Com

BIOS

UEFI BIOS

Form Factor

Micro-ATX (18*22cm)

Mounting

6 mounting holes

Accessories

1 x SATA II cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD
