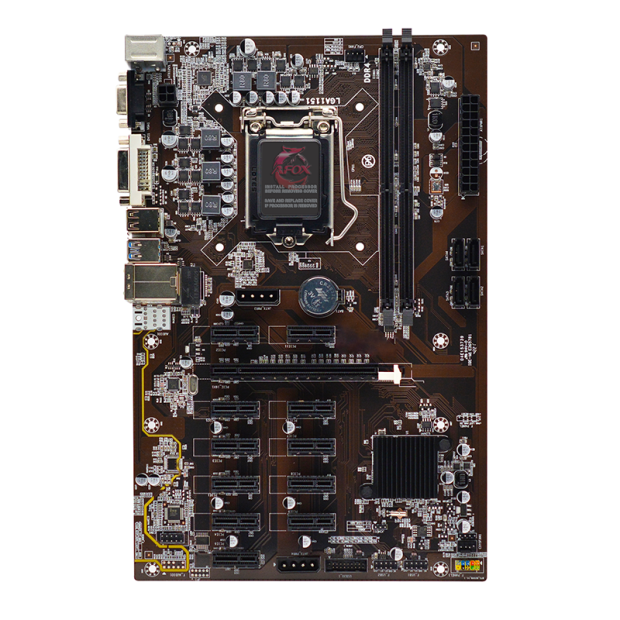

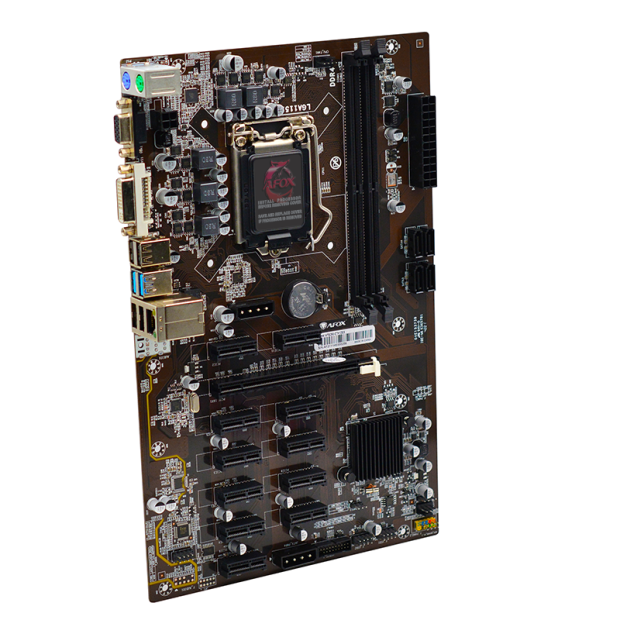

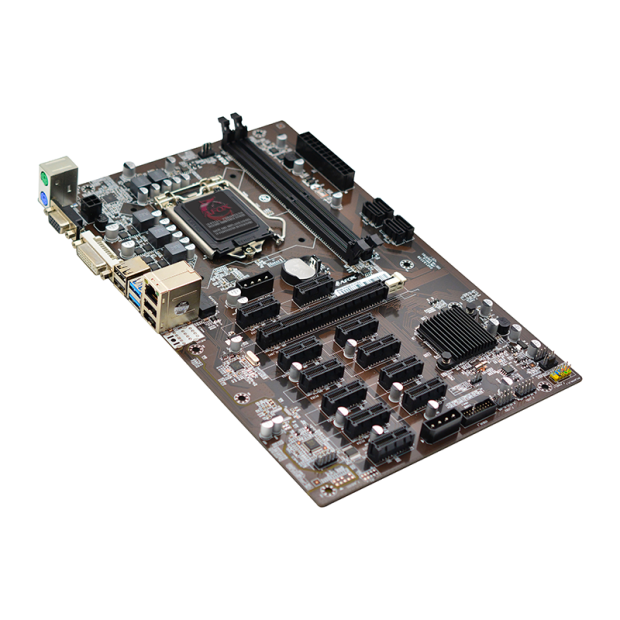

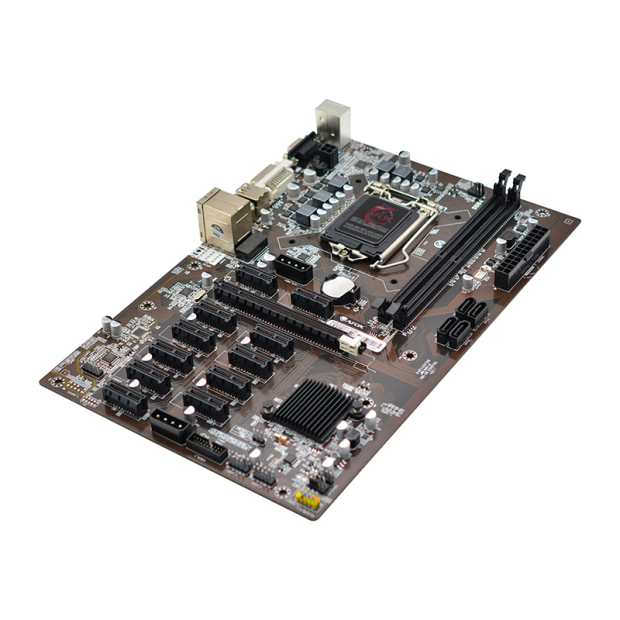

AFB250-ETH12EX

Upgrade Material - AFOX mining GPU motherboard is made of high-quality steel, which is sturdy and durable, and can be reused.

One large CPU cooling plate, super heat dissipation.

You can install your own external cooling fan, fast heat dissipation to ensure extreme performance.

Voltage stabilizing capacitor can provide stable voltage for your power supply equipment.

AFOX Motherboard can fully protect your GPU and electronic equipment from damage.

It can ensure mute performance, low power consumption, low heating, energy saving and safe use.

HD Gallery

DESCRIPTION
SPECIFICATION
BIOS / DRIVERS UPDATE
REQUIREMENT

CPU platform: INTEL® 1151

CPU type: Intel Core™ i7 / Core™ i5 / Core™ i3 Processors, Supports Intel 6th & 7th Generation (CPU up to 95 watts)

Memory type: DDR4

Maximum memory Capacity: 64GB

Memory description: Dual Channel DDR4 2133/2400/2666/2800/3000MHz

Chipset: Intel® B250

Audio chip: N/A

NIC chip: Realtek RTL8105/8106 10/100Mbps Ethernet on board

Motherboard size: 294*190mm

Working environment: -10℃-60℃

Platform	INTEL Socket 1151
Model Name	AFB250-ETH12EX
Chipset	Intel® B250
CPU Supports	Intel Core™ i7 / Core™ i5 / Core™ i3 Processors, Supports Intel 6th & 7th Generation (CPU up to 95 watts)
FSB	2133/2400/2666/2800/3000MHz
Memory	Dual Channel DDR4 2133/2400/2666/2800/3000MHz
Dimm	2 x Memory Slots (Max. capacity of system memory 64GB)
Onboard Graphics	Intel® HD Graphics
PCI/PCI-E Slots	1 x PCI Express x16 slot 11 x PCI Express x1 slot
SATA	4 x SATA3
IDE	N/A
Audio	N/A
LAN	Realtek RTL8105/8106 10/100Mbps Ethernet on board
Back Panel I/Os	1 x D-Sub (VGA) 1 x DVI Port 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 2 x USB 3.0 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port
ON-Board Pinheaders/Connectors	2 x USB 2.0 pinheader (supports additional 4 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 X COM 2 X FAN(4PIN) 12V 2 X JATX_PWR 12V
BIOS	UEFI BIOS
Form Factor	294*190mm
Mounting	8 mounting holes
