AFX79-ETH9EX

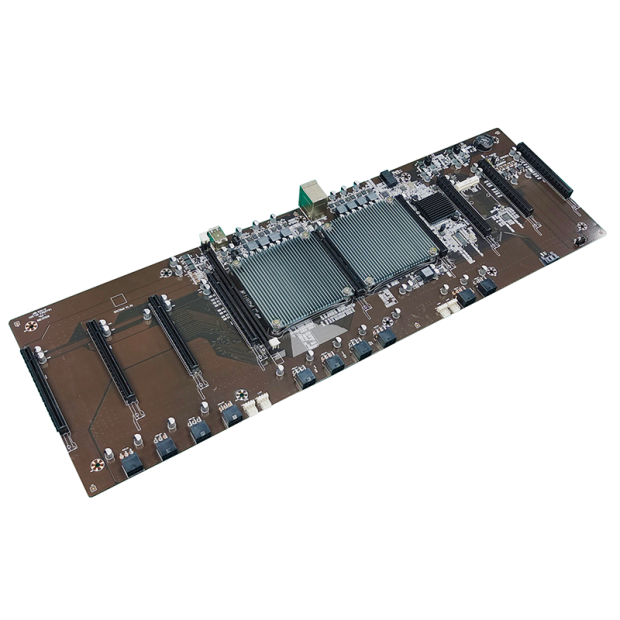

AFX79-ETH9EX V1.0 motherboard adopts C602 chip and dual-channel 2011-slot CPU.

Nine Pcie3.0X8 graphics card interfaces are designed, and the spacing is extended to 60mm.

It perfectly supports RTX 3060 graphics cards and other graphics cards with 4GB memory, which greatly improves the mining function of the processing power.

Voltage stabilizing capacitor can provide stable voltage for your power supply equipment.

It can ensure mute performance, low power consumption, low heating, energy saving and safe use.



  • DESCRIPTION
  • SPECIFICATION
  • BIOS / DRIVERS UPDATE
  • REQUIREMENT

CPU platform: INTEL Socket 2011*2

CPU type: (Recommended CPU was attached in specification)

Memory type: DDR3

Maximum memory Capacity: 8GB)

Memory description: LONGDIMM DDR3 1066/1333/1600MHz

Chipset: Intel® C602

Audio chip: N/A

NIC chip: Realtek RTL8105/8106 10/100Mbps Ethernet on board

Motherboard size: 597mm*195mm

Working environment: -10℃-60℃

Platform

INTEL Socket 2011*2

Model Name

AFX79-ETH9EX

Chipset

Intel® C602

CPU Supports (Recommended)

Xeon Processor E5-2603
Xeon Processor E5-4603
Xeon Processor E5-2609
Xeon Processor E5-2603 V2
Xeon Processor E5-4603 V2
Xeon Processor E5-2609 V2
Xeon Processor E5-2620
Xeon Processor E5-2620 V2
Xeon Processor E5-4607 V2
Xeon Processor E5-2618L V2

FSB

1066/1333/1600MHz

Memory

LONGDIMM DDR3 1066/1333/1600MHz

Dimm

1 x Memory Slot (Max. up to 8GB)

Onboard Graphics

Intel® HD Graphics

PCI/PCI-E Slots

9 x PCI Express 3.0 x16 slots (Slot distance 60mm)

SATA

1 x SATA2, 1 × MSATA2

IDE

N/A

Audio

N/A

LAN

Realtek RTL8105/8106 10/100Mbps Ethernet on board

Back Panel I/Os

4 x USB 2.0 Ports

ON-Board Pinheaders/Connectors

1x USB 2.0 pinheader (supports additional 2 USB 2.0s)
4 X FAN(4PIN)  12V
10 X JATX_PWR 12V

BIOS

UEFI BIOS

Form Factor

597mm*195mm

Mounting

10 mounting holes
