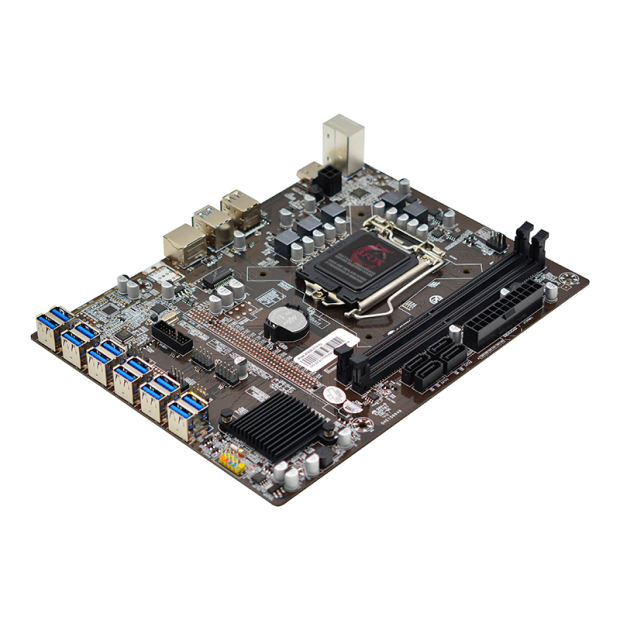

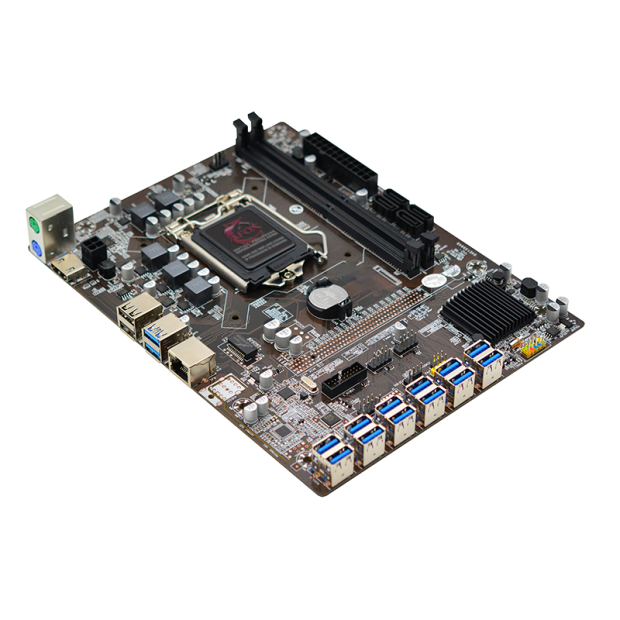

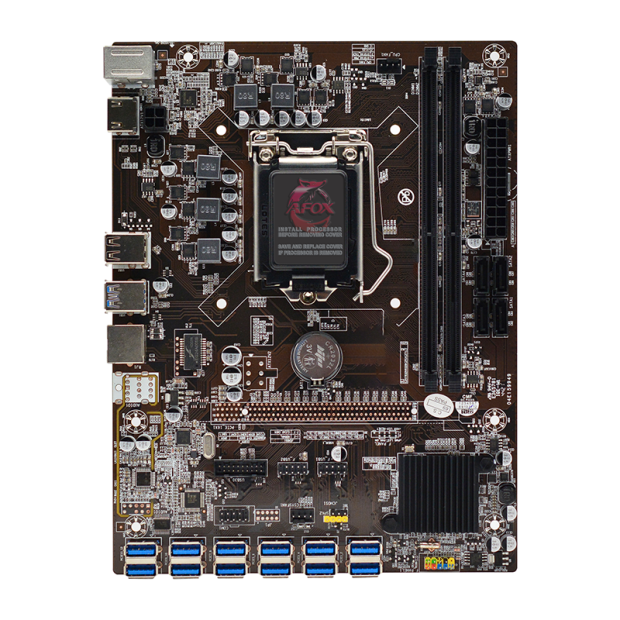

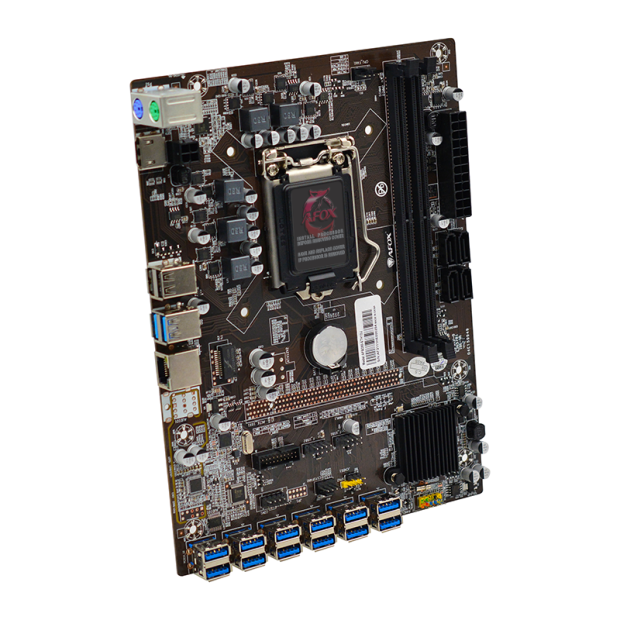

AFB250-ETH12U
Upgrade Material - AFOX mining GPU motherboard is made of high-quality steel, which is sturdy and durable, and can be reused.
One large CPU cooling plate, super heat dissipation.
You can install your own external cooling fan, fast heat dissipation to ensure extreme performance.
Voltage stabilizing capacitor can provide stable voltage for your power supply equipment.
AFOX Motherboard can fully protect your GPU and electronic equipment from damage.
It can ensure mute performance, low power consumption, low heating, energy saving and safe use.
HD Gallery
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
CPU platform: INTEL® 1151
CPU type: Intel Core™ i7 / Core™ i5 / Core™ i3 Processors, Supports Intel 6th & 7th Generation (CPU up to 95 watts)
Memory type: DDR4
Maximum memory Capacity: 64GB
Memory description: Dual Channel DDR4 2133/2400/2666/2800/3000MHz
Chipset: Intel® B250
Audio chip: N/A
NIC chip: Realtek RTL8105/8106 10/100Mbps Ethernet on board
Motherboard size: 228*175mm
Working environment: -10℃-60℃
|
Platform |
INTEL Socket 1151 |
|
Model Name |
AFB250-ETH12U |
|
Chipset |
Intel® B250 |
|
CPU Supports |
Intel Core™ i7 / Core™ i5 / Core™ i3 Processors, Supports Intel 6th & 7th Generation (CPU up to 95 watts) |
|
FSB |
2133/2400/2666/2800/3000MHz |
|
Memory |
Dual Channel DDR4 2133/2400/2666/2800/3000MHz |
|
Dimm |
2 x Memory Slots (Max. capacity of system memory 64GB) |
|
Onboard Graphics |
Intel® HD Graphics |
|
PCI/PCI-E Slots |
N/A |
|
SATA |
4 x SATA3 |
|
IDE |
N/A |
|
Audio |
N/A |
|
LAN |
Realtek RTL8105/8106 10/100Mbps Ethernet on board |
|
Back Panel I/Os |
1 x HDMI Port 2 x USB 2.0 Ports 2 x USB 3.0 Ports 12 x USB 3.0 Ports 1 x RJ-45 LAN Port |
|
ON-Board Pinheaders/Connectors |
2 x USB 2.0 pinheader (supports additional 4 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader 1 X COM 2 X FAN(4PIN) 12V |
|
BIOS |
UEFI BIOS |
|
Form Factor |
228*175mm |
|
Mounting |
6 mounting holes |
