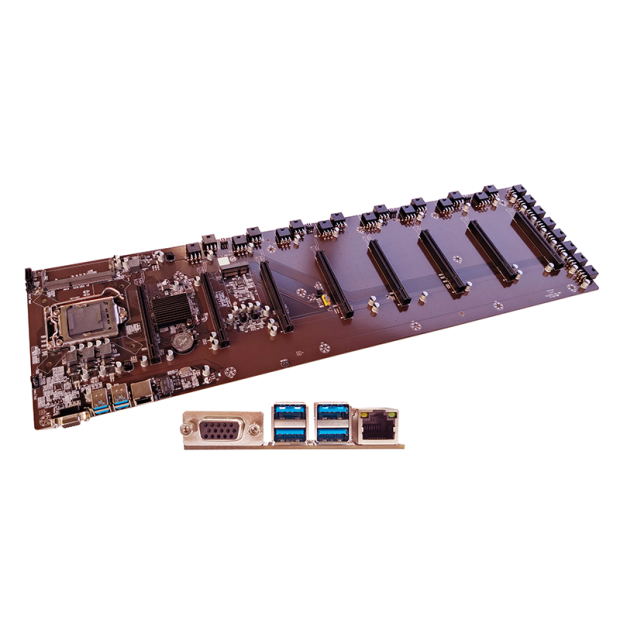

AFB85-ETH8EX
Upgrade Material - AFOX mining GPU motherboard is made of high-quality steel, which is sturdy and durable, and can be reused.
One large CPU cooling plate, super heat dissipation.
You can install your own external cooling fan, fast heat dissipation to ensure extreme performance.
Voltage stabilizing capacitor can provide stable voltage for your power supply equipment.
AFOX Motherboard can fully protect your GPU and electronic equipment from damage.
It can ensure mute performance, low power consumption, low heating, energy saving and safe use.
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
Motherboard: 8 cards in-line PCI-E spacing 65MM
CPU platform: INTEL® 1150
CPU type: INTEL Socket 1150, Intel 4th generation Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® / Xeon® Processors
Memory type: DDR3
Maximum memory Capacity: 8G
Memory description: Support 1066/1333/1600MHz
Chipset: Intel® B85
Audio chip: N/A
NIC chip: Realtek RTL8105/8106 10/100Mbps Ethernet on board
Motherboard size: 180mm x 600mm
Working environment: -10℃-60℃
|
Platform |
INTEL® 1150 |
|
Model Name |
AFB85-ETH8EX |
|
Chipset |
Intel® B85 |
|
CPU Supports |
INTEL Socket 1150, Intel 4th generation Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® / Xeon® Processors |
|
FSB |
1066/1333/1600MHz |
|
Memory |
So-Dimm DDR3L 1333/1600MHz 1.35V Memory up to 8GB |
|
Dimm |
1 x Memory Slots (Max. capacity of system memory 8GB) |
|
Onboard Graphics |
N/A |
|
PCI/PCI-E Slots |
8 x PCI-E x16 (Slot distance 65mm) |
|
SATA |
1 x SATA3., 1 × MSATA |
|
IDE |
N/A |
|
Audio |
N/A |
|
LAN |
Realtek RTL8105/8106 10/100Mbps Ethernet on board |
|
Back Panel I/Os |
1 x D-Sub (VGA) 4 x USB3.0 8 x Power Inputs (6-pins) |
|
ON-Board Pinheaders/Connectors |
4 x Power Output (3pin for Cooling Fan) 1 x Power Output (4pin for Cooling Fan) |
|
BIOS |
Supports BIOS update |
|
Form Factor |
180mm x 600mm |
|
Mounting |
12 mounting holes |
