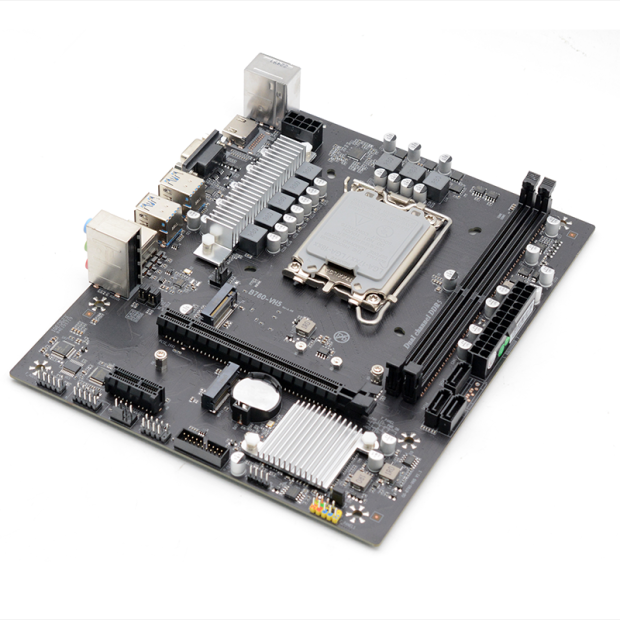

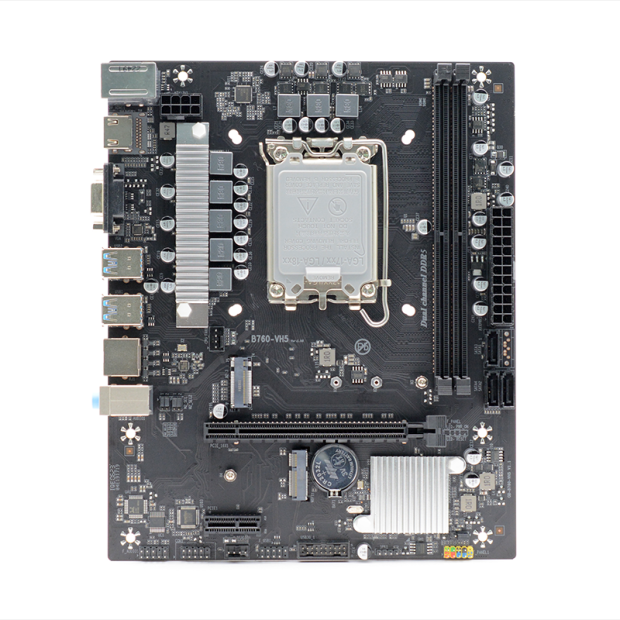

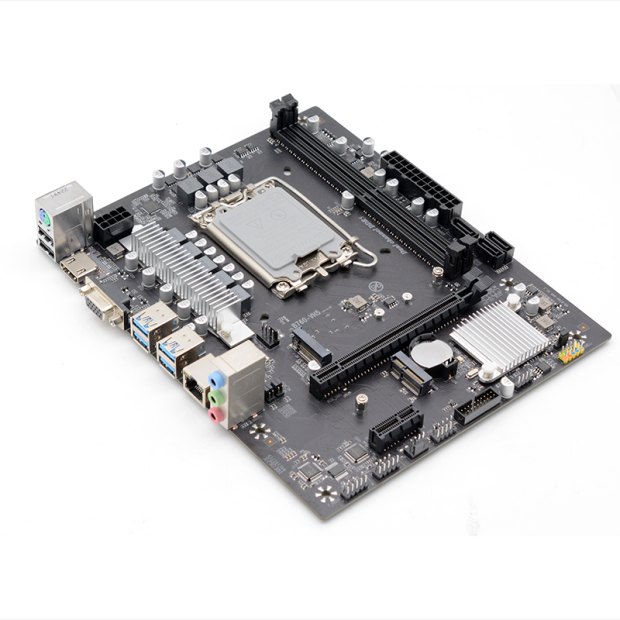

AFOX B760D5-MA-V2
Model Name: B760D5-MA-V2
Chipset: Intel® B760
Socket: INTEL Socket 1700
Supports Intel Core™ i9 / Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors
Supports Intel 12th / 13th / 14th Generation
Dual channel DDR5 memory
4800 / 5200 / 5600 / 6000(O.C) / 6400(O.C) MHz Memory up to 64GB
High speed USB interface
High quality audio special capacitor+independent audio block LED isolation line
Design of Gigabit high-speed network card
Rapid transmission is always ready
Rambling mainstream game world
Wonderful design rendering effect
Satisfy all your computing demands
HD Gallery
- DESCRIPTION
- SPECIFICATION
- BIOS / DRIVERS UPDATE
- REQUIREMENT
►Intel® B760 Express Chipset
►Supports 12th / 13th / 14th Generation Intel Core Processor
►Dual-Channel DDR5 4800 / 5200 / 5600 / 6000(O.C) / 6400(O.C) MHz support
►Gigabit LAN
►PCI Express 4.0 Architecture
►USB 3.0
►Microsoft Windows 10/11 compatible
Platform |
INTEL Socket 1700 |
Model Name |
B760D5-MA-V2 |
Chipset |
Intel® B760 |
CPU Supports |
INTEL Socket 1700 Supports Intel 12th / 13th / 14th Generation Intel Core™ i9 / Core™ i7 / Core™ i5 / Core™ i3 / Pentium® / Celeron® Processors |
FSB |
4800 / 5200 / 5600 / 6000(O.C) / 6400(O.C) |
Memory |
Dual Channel DDR5 4800 / 5200 / 5600 / 6000(O.C) / 6400(O.C) MHz 1.1V |
Dimm |
2 x Memory Slots (Max. capacity of system memory 64GB) |
Onboard Graphics |
Intel® HD Graphics |
PCI/PCI-E Slots |
1 x PCI Express x16 4.0 slot 1 x PCI Express x1 slot 1 x Mini PCI-E Slot (Supports 4G/WIFI Module) |
SATA |
3 x SATA III 1 x M.2 ( 1 x PCIe NVMe Gen4 x4 & SATA3 ) |
IDE |
N/A |
Audio |
Realtek 662 /897 on board, Supports 6-channel audio-out |
LAN |
1000Mbps Ethernet on board |

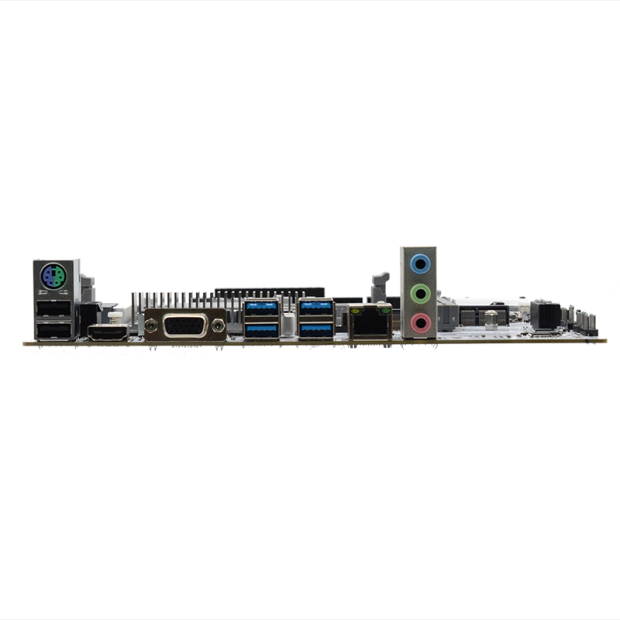

Back Panel I/Os |
1 x D-Sub (VGA) Port 1 x HDMI 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 4 x USB 3.0 Ports 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x HD Audio Jack (Line in / Front Speaker / Microphone) |
ON-Board Pinheaders/Connectors |
1 x USB 2.0 pinheader (supports additional 2 USB 2.0s) 1 x USB 3.0 pinheader (supports additional 2 USB 3.0s) 1 x Front Panel Audio pinheader 1 x Com |
BIOS |
UEFI BIOS |
Form Factor |
Micro-ATX (18*22cm) |
Mounting |
6 mounting holes |
Accessories |
1 x SATA II cable 1 x I/O Rear Panel 1 x User Manual 1 x Driver CD |
